Part example · Metal 3D Printing

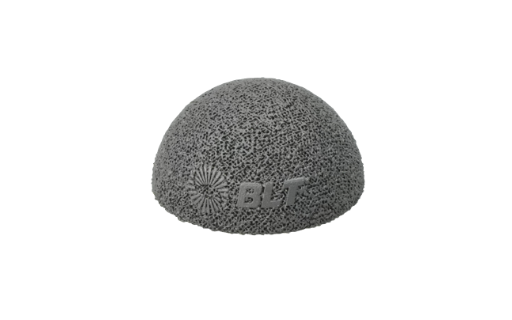

Metal AM acetabular-cup lattice example
3DWK example (authorized photo). Incomplete parameters marked Example · to be confirmed / 「示例、待确认」. Hemispherical cup example with a trabecular outer lattice for discussing osseointegration-style skins — parameters are illustrative only.
Typical specification
Key values
| Item | Typical value | Note |
|---|---|---|
| Process | Metal AM lattice cup | Example · to be confirmed / 「示例、待确认」 |
| Material | Ti alloy | Example · to be confirmed / 「示例、待确认」 |
| Outer | Trabecular / porous lattice | Example · to be confirmed / 「示例、待确认」 |
| Inner | Bore finish TBD | Example · to be confirmed / 「示例、待确认」 |
| Size | Diameter class TBD | Example · to be confirmed / 「示例、待确认」 |
Spec sheet
Porous outer skins need clear lattice cell size and powder-removal notes; inner bearing faces usually need a separate finish callout.
- Do not invent pore metrics or implant clearances here
- State sterilization or clean-pack expectations on the RFQ if required
Example · to be confirmed — not a certified implant quote.
Example · to be confirmed / 「示例、待确认」
Next step
Have a similar part?
Upload CAD and drawings. An engineer reviews materials, tolerances and finish before pricing.
