Metal AM aviation Y-branch batch nest

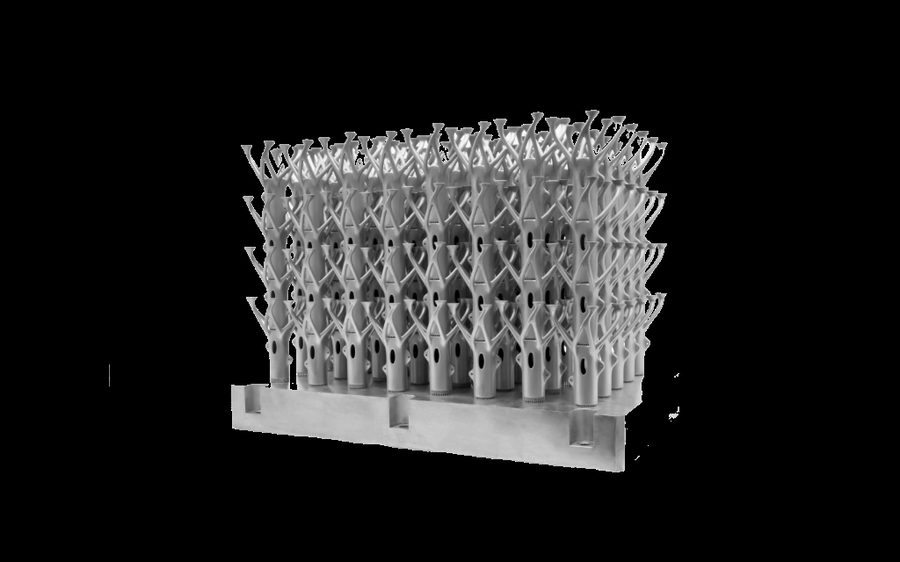

Dense nest of small Y-branch aviation-style blanks still on a rectangular build plate — for RFQ talk on branch thickness and nest density; not a certified aero plumbing SKU.
Design intent
Dense nest of small Y-branch aviation-style blanks still on a rectangular build plate — for RFQ talk on branch thickness and nest density; not a certified aero plumbing SKU.
- Call which faces are datums versus cosmetic
- Keep powder-escape paths open on lattice or thinwall features
- State preferred alloy family on the RFQ
Manufacturing notes
Orient so internal cavities stay flushable after support removal. Mark any sealing, bearing, or flange faces that must be secondary-finished.
What to put on the RFQ
- Preferred alloy family
- Envelope and critical flatness or bore positions
- Any coating keep-out zones (state them; we do not invent certifications)
Honesty bar
No invented customers, prices, cycle times, certifications, or performance guarantees on this page.
Typical specification
At a glance
| Item | Typical value |
|---|---|
| Process | Metal 3D Printing |
| Material | Titanium or steel alloy TBD |
| Form | Part / context blank |
| Industry | Aerospace |
| Post | Support removal; finish TBD per drawing |
Next step
Have a similar part?
Upload CAD and drawings. An engineer reviews materials, tolerances and finish before pricing.
