Metal AM epicyclic planetary gear sample set

Three metal additive epicyclic / planetary gear assemblies — for discussing printable gear teeth, carrier clearance, and which diameters stay as-built versus hobbed or ground.

Gear-sample framing

Printed gear blanks are useful for talking about tooth quality and secondary finishing — not for inventing AGMA ratings on this page.

Mark which diameters are functional versus cosmetic
Call backlash and material family on the RFQ

What we will not invent

No torque ratings, noise claims, or customer gearbox brands on this page.

Typical specification

At a glance

Item	Typical value
Process	Metal powder-bed fusion
Form	Epicyclic gear assemblies
Features	Ring, sun, and planet gears in carrier
Post	Optional hob / grind of critical teeth
Note	Geometry samples for RFQ discussion

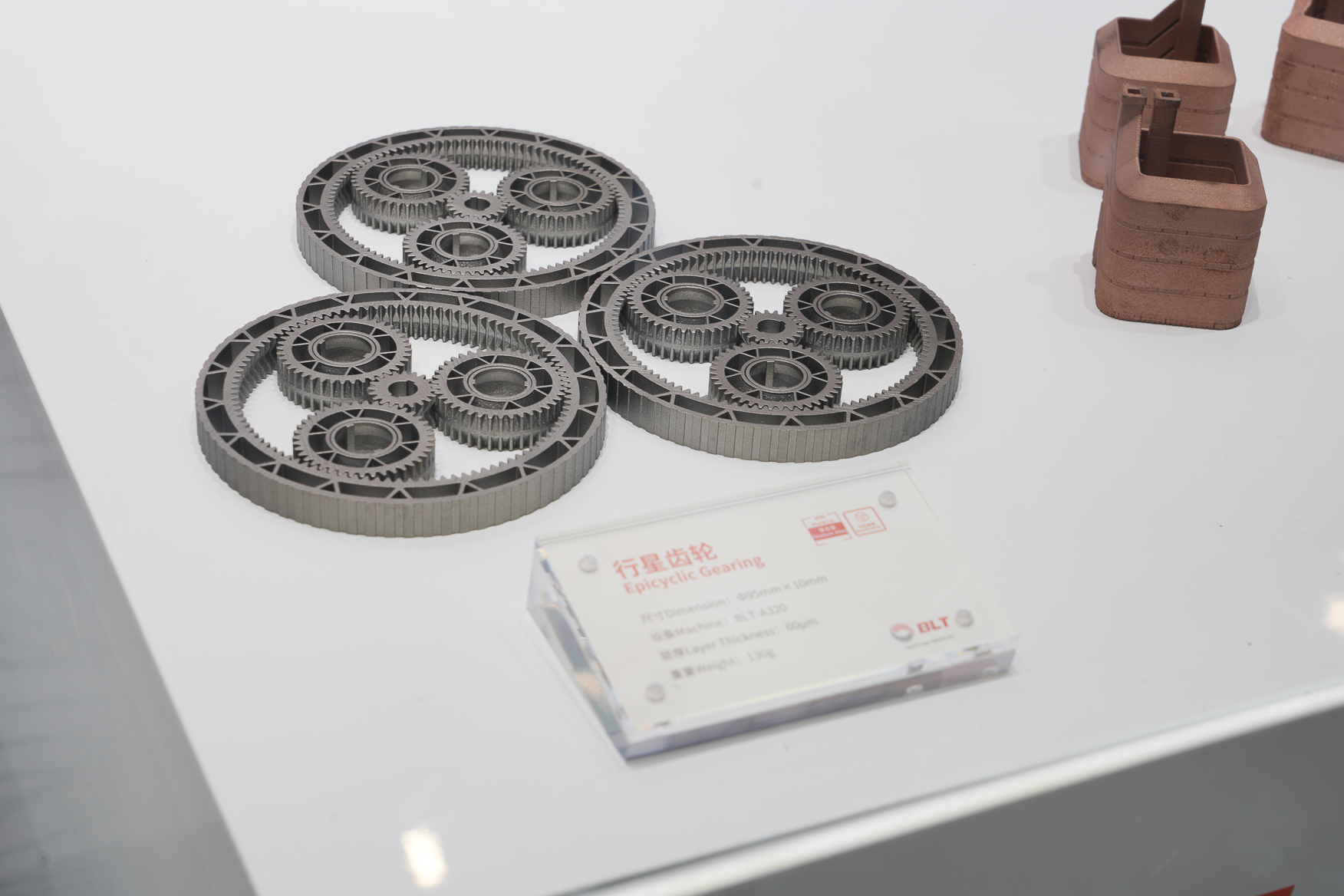

Three metal additive epicyclic planetary gear assemblies on a white surface — Photo courtesy xa-blt.com (authorized for 3DWK use). 3DWK part case — brand remains 3DWK; not a BLT storefront listing.
