Part example · Metal 3D Printing

Metal AM research heat exchanger core

Compact heat-exchanger style core example for research packaging of internal channels — validate pressure and fluid compatibility separately.

Research hardware framing

Heat-exchanger cores need clear inlet/outlet datums and a powder-evacuation plan. Do not treat this photo as a rated HX module.

TopicAction
FluidsName them on the RFQ
PressureProvide design pressure
Leak testState method

Example · to be confirmed — no invented U-values or certifications.

Typical specification

At a glance

ItemTypical valueNote
ProcessMetal AM HX coreExample · to be confirmed
MaterialAl or Cu alloyExample · to be confirmed
ChannelsInternal lattice/foilExample · to be confirmed
PressureTo be confirmedExample · to be confirmed

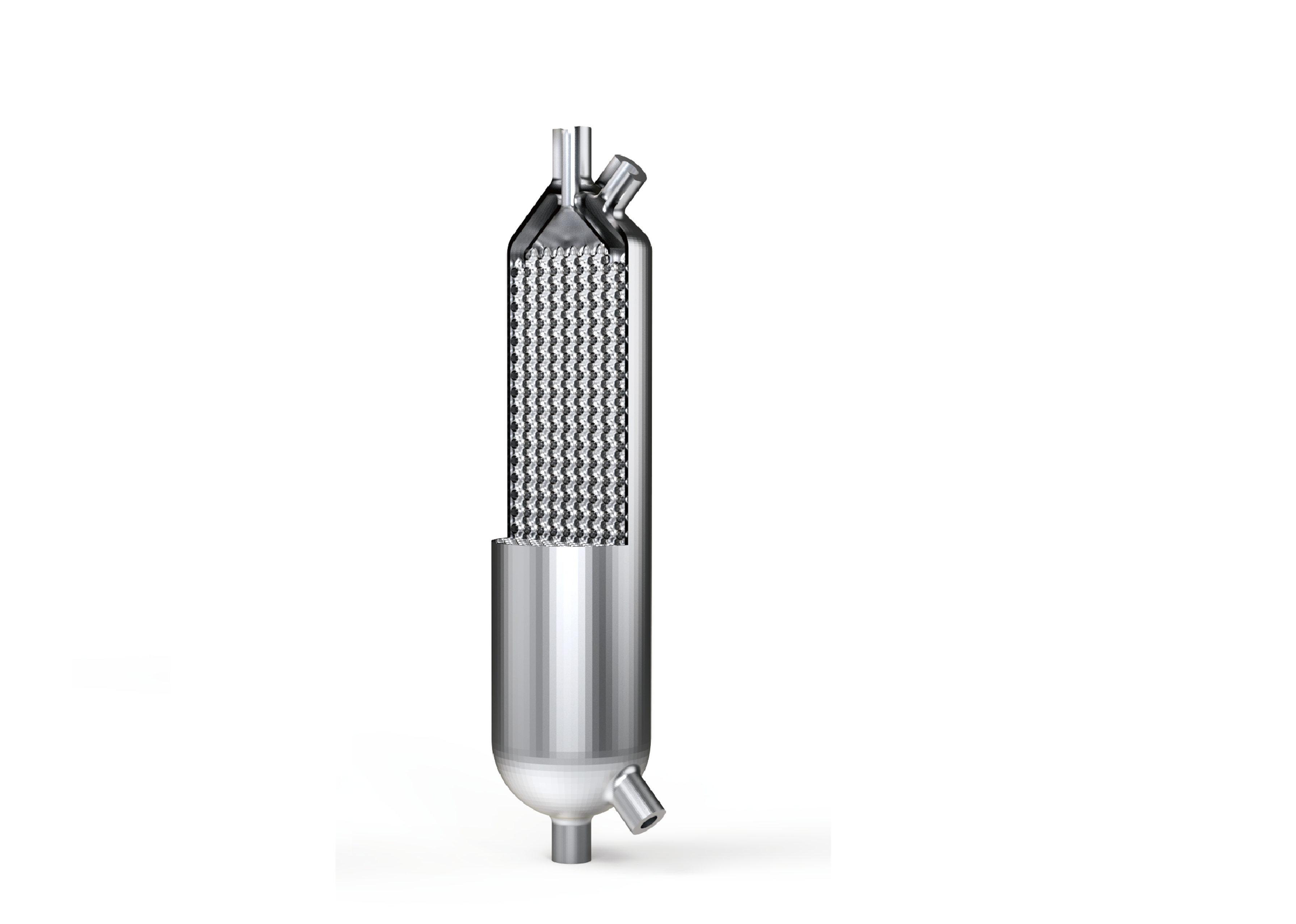

Metal additive manufacturing research heat exchanger core
Photo courtesy xa-blt.com (authorized for 3DWK use). 3DWK example page — brand remains 3DWK; not a BLT storefront listing.
