Part case · Metal 3D Printing

Metal AM lattice-spoke planetary gear trio

Three epicyclic planetary gear blanks with lattice spokes on a show table — for RFQ talk on tooth finish and carrier clearances; not a gearbox OEM listing.

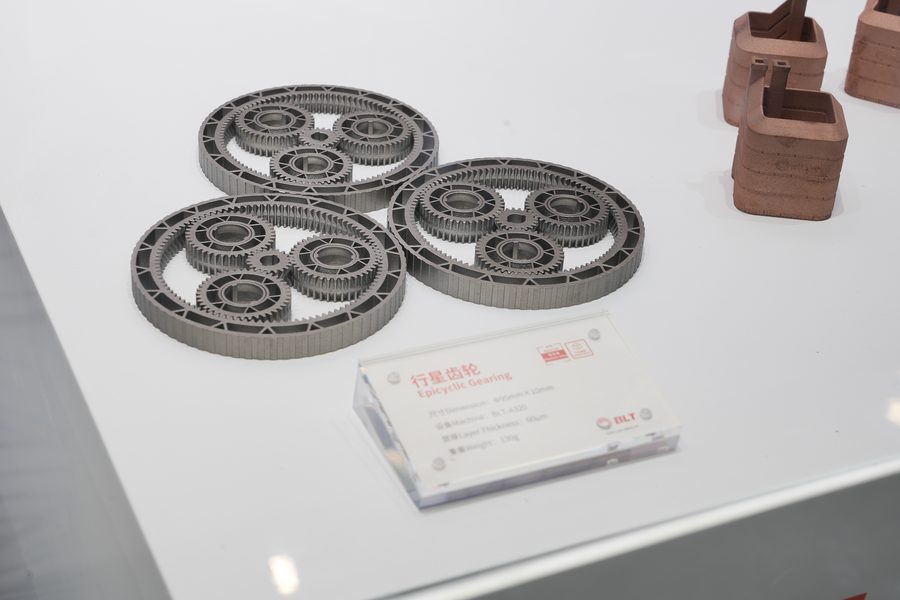

Three metal additive planetary gear sets with lattice spokes on a white table
Photo courtesy xa-blt.com (authorized for 3DWK use). 3DWK part case — brand remains 3DWK; not a BLT storefront listing.
  1. 01

    Design intent

    Three epicyclic planetary gear blanks with lattice spokes on a show table — for RFQ talk on tooth finish and carrier clearances; not a gearbox OEM listing.

    • Call which faces are datums versus cosmetic
    • Keep powder-escape paths open on lattice or thinwall features
    • State preferred alloy family on the RFQ
  2. 02

    Manufacturing notes

    Orient so internal cavities stay flushable after support removal. Mark any sealing, bearing, or flange faces that must be secondary-finished.

  3. 03

    What to put on the RFQ

    • Preferred alloy family
    • Envelope and critical flatness or bore positions
    • Any coating keep-out zones (state them; we do not invent certifications)
  4. 04

    Honesty bar

    No invented customers, prices, cycle times, certifications, or performance guarantees on this page.

Typical specification

Starting points for this part

Process
Metal 3D Printing
Material
Steel or titanium alloy TBD
Form
Part / context blank
Industry
Industrial
Post
Support removal; finish TBD per drawing
Three metal additive planetary gear sets with lattice spokes on a white table
Photo courtesy xa-blt.com (authorized for 3DWK use). 3DWK part case — brand remains 3DWK; not a BLT storefront listing.

Next step

Have a similar part?

Upload CAD and drawings. An engineer reviews materials, tolerances and finish before pricing.
