Metal AM mesh-spoke brake caliper example

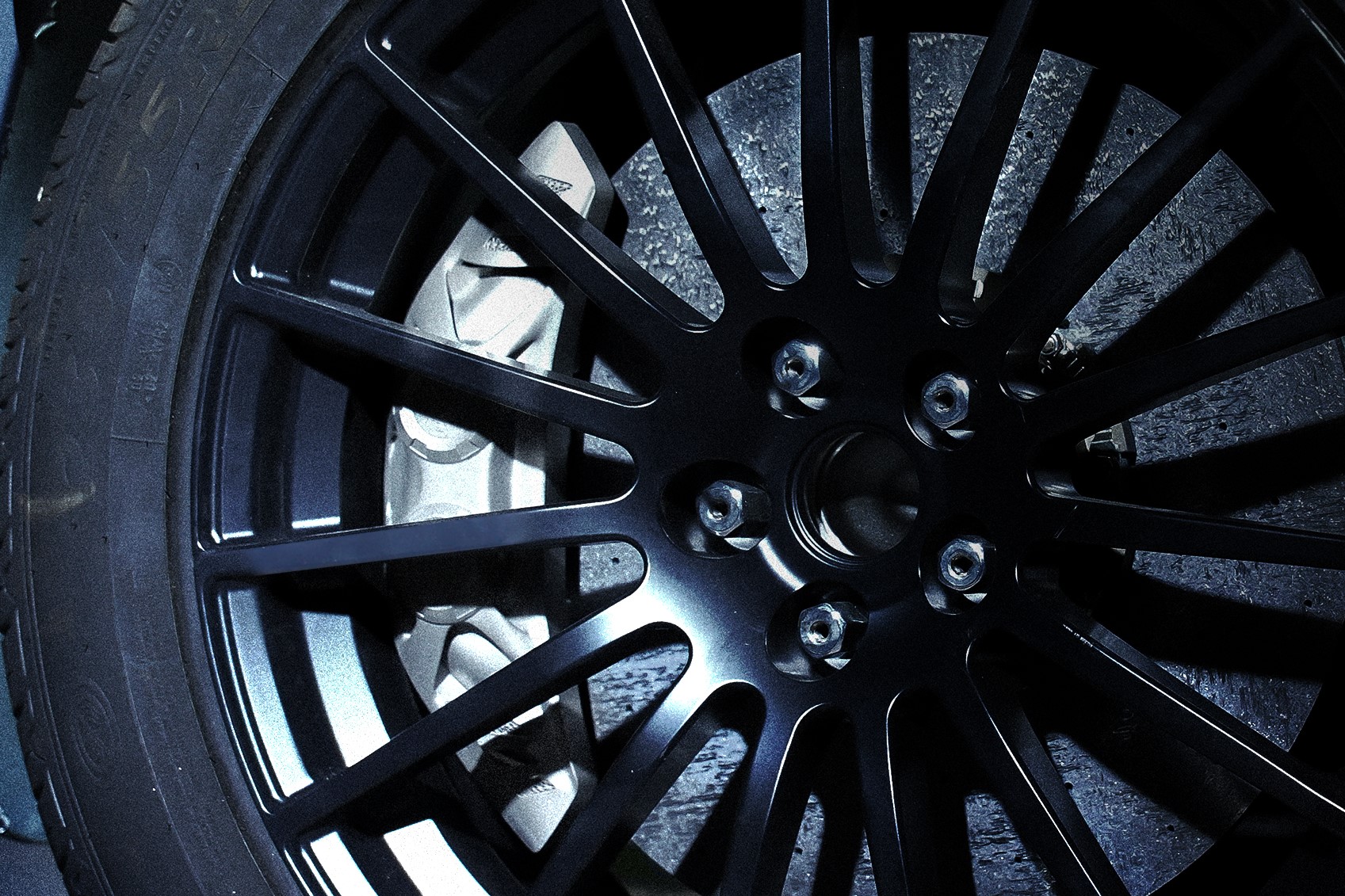

3DWK example (authorized photo). Incomplete parameters marked Example · to be confirmed / 「示例、待确认」. Performance-style brake caliper shown behind a mesh wheel — illustrating a metal AM chassis hardware blank for automotive prototypes; not a certified brake listing.
Typical specification
| Item | Typical value | Note |
|---|---|---|
| Process | Metal AM caliper blank | Example · to be confirmed / 「示例、待确认」 |
| Material | Al or Ti alloy | Example · to be confirmed / 「示例、待确认」 |
| Form | Multi-piston style body | Example · to be confirmed / 「示例、待确认」 |
| Mounts | Upright / pad faces TBD | Example · to be confirmed / 「示例、待确认」 |
| Post | Mill critical faces | Example · to be confirmed / 「示例、待确认」 |
Chassis hardware angle
A caliper blank can carry complex ribbing in one metal AM body, then CNC only the pad and upright faces.
- Separate structural metal from paint or anodize callouts
- Define piston bores and seal lands as machined datums if fit matters
Example part — not a production brake quote.
Honesty bar
No OEM vehicle brands, no braking distances, no invented durability numbers on this page.
Example · to be confirmed / 「示例、待确认」
