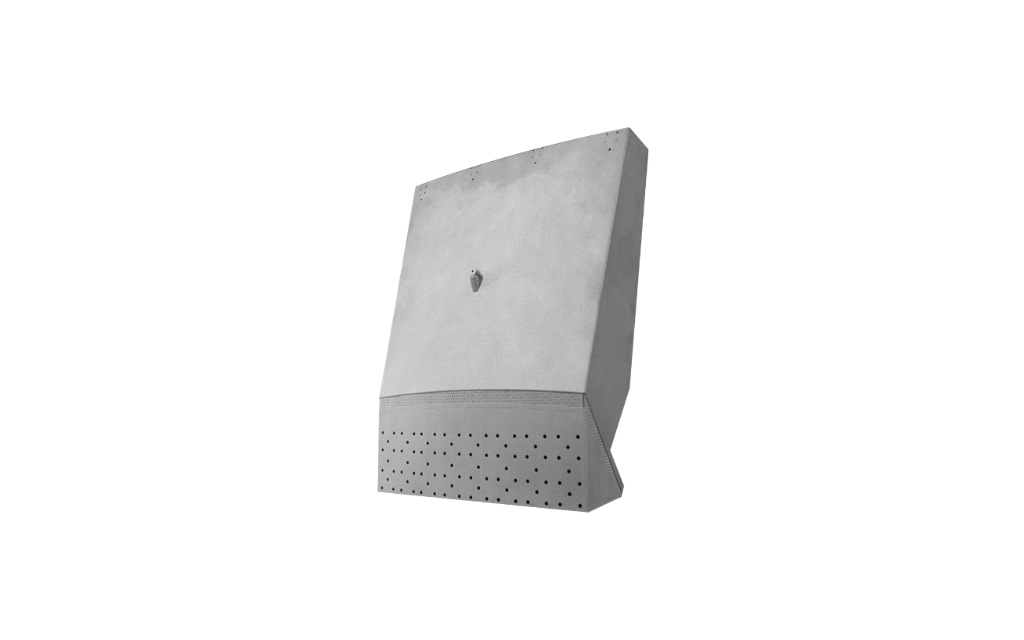

Photo courtesy xa-blt.com (authorized for 3DWK use). 3DWK example page — brand remains 3DWK; not a BLT storefront listing.
ProcessMetal powder-bed fusionExample · to be confirmed / 「示例、待确认」
MaterialAl or Ni alloyExample · to be confirmed / 「示例、待确认」
FormWedge housing, perforated faceExample · to be confirmed / 「示例、待确认」
PortsConical boss / face gridExample · to be confirmed / 「示例、待确认」
| Item | Typical value | Note |
|---|---|---|
| Post | Support removal, optional CNC seals | Example · to be confirmed / 「示例、待确认」 |
Design intent
This example shows a hollow wedge body where a face grid and a small port share one printed blank.
- Keep seal lands thick enough for post-machining if leak-tightness matters
- Confirm hole-grid diameter and pattern on the drawing
- Do not invent pressure ratings or certifications on this page
Manufacturing notes
Perforations need reliable powder removal and inspectable walls. Mark which faces are sealed.
All dimensions and alloys on this page are examples to be confirmed — not a quotation.
What to put on the RFQ
- Preferred alloy family
- Which faces are critical for flatness or leak check
- Any NDT expectations (state them; we do not invent certifications)
Example · to be confirmed / 「示例、待确认」
Next step
Have a similar part?
Upload CAD and drawings. An engineer reviews materials, tolerances and finish before pricing.
