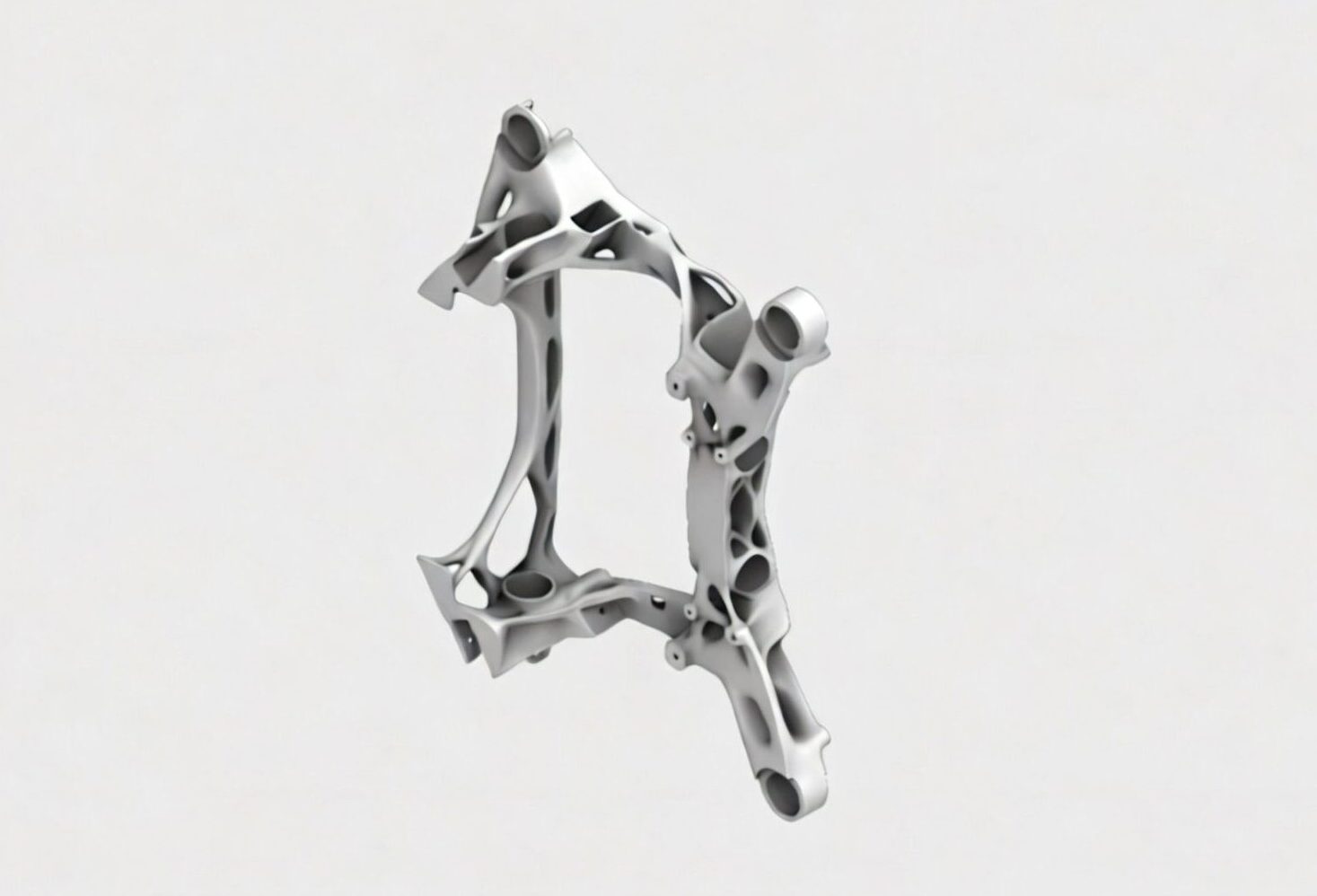

Metal AM rear subframe node example
Large node-style automotive structure example for discussing build size limits, sectioning, and weld or fastener interfaces.
Typical specification
Key values
| Item | Typical value | Note |
|---|---|---|
| Process | Metal AM (possibly sectioned) | Example · to be confirmed |
| Material | Aluminum alloy | Example · to be confirmed |
| Size | Check machine envelope | Example · to be confirmed |
| Join | Pads for fasteners/welds | Example · to be confirmed |
Size and sectioning
If the node exceeds a single build envelope, plan split lines and joint design up front. Do not assume one-piece printing without checking bed size.
- Machine bolt pads after build
- State crash or fatigue intent as engineering questions, not marketing claims
Example geometry — to be confirmed.
