Metal AM robot flange with diamond interior liner

Close-up of a robot flange joint interior showing a raised diamond / lozenge liner and internal ribs — for discussing printable interior textures and inspection access without inventing performance numbers.

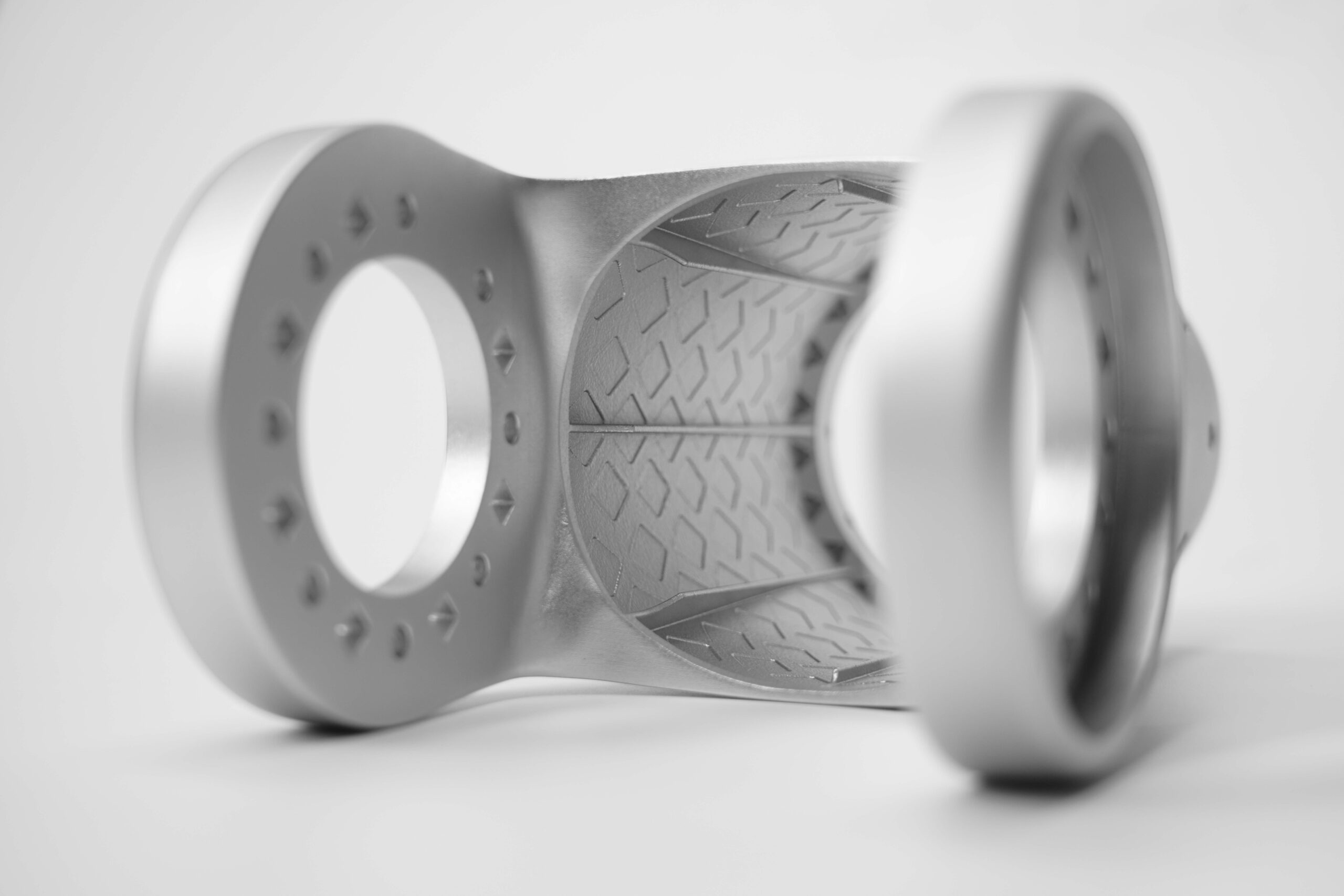

Close-up of metal AM robot flange joint with raised diamond interior liner texture — Photo courtesy xa-blt.com (authorized for 3DWK use). 3DWK part case — brand remains 3DWK; not a BLT storefront listing.

Typical specification

Key values

Item	Typical value
Process	Metal powder-bed fusion
Material	Al or Ti alloy
Form	Flange joint with diamond interior liner
Interior	Raised diamond / rib pattern
Post	Powder flush; optional face mill

Interior-texture mindset

Raised diamond liners change powder retention and inspection even when the outer envelope looks simple.

Call whether the liner faces a cable path, fluid, or cosmetic cavity
Separate as-built interiors from gasket faces that must be flat

What we will not invent

No grip or friction coefficients, no OEM robot brands as customers, and no invented fatigue life on this page.
