Part case · Metal 3D Printing

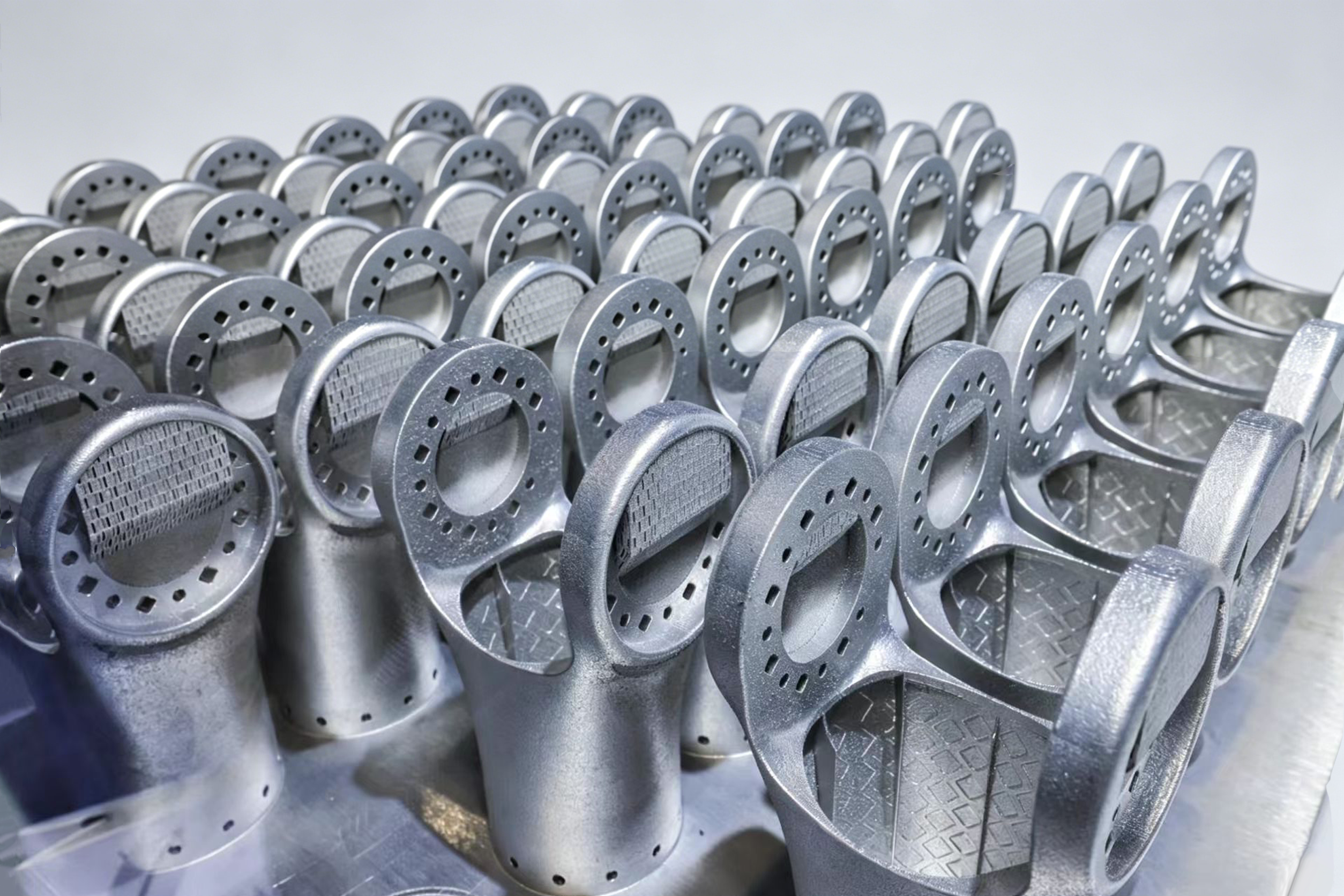

Metal AM robot Y-flange joint nest on build plate

Batch of identical Y-shaped robot flange joints still nested on the build plate — useful for nesting density, powder escape between neighbors, and cut-off strategy after a multi-part run.

Metal AM Y-flange robot joints nested in a batch still on the build plate
Photo courtesy xa-blt.com (authorized for 3DWK use). 3DWK part case — brand remains 3DWK; not a BLT storefront listing.
  1. 01

    Why show a full nest

    Batch nesting is a different conversation from a single studio joint: neighbor spacing, recoater clearance, and powder removal between parts dominate the RFQ.

    Nesting checklist

    • Minimum gap between joints for powder escape
    • Shared support strategy that does not weld neighbors together
    • Which parts are first articles versus production nests
  2. 02

    Honesty bar

    No claimed cycle times, laser counts, or cost-per-part figures on this page — bring those expectations on your RFQ if you have them.

Typical specification

Starting points for this part

Process
Multi-part metal AM plate
Material
Al or Ti alloy
Form
Nested Y-flange robot joints
Nesting
Batch layout on build plate
Post
Wire-cut / band-saw off plate; finish TBD
Metal AM Y-flange robot joints nested in a batch still on the build plate
Photo courtesy xa-blt.com (authorized for 3DWK use). 3DWK part case — brand remains 3DWK; not a BLT storefront listing.
