Part case · Metal 3D Printing

Metal AM segmented lattice and fin arch detail

Close-up of a segmented metal AM arch showing lattice trusses beside wavy fin / channel coupons — for RFQ talk on powder escape and which segments are structural versus thermal studies.

Detail-view framing

A close-up helps call minimum strut thickness, fin pitch class, and flush direction without ranking segment performance.

Mark which segments are first articles versus geometry studies
Keep any section labels you need for quoting

What we will not invent

No thermal-resistance numbers, no fluid names beyond what you specify, and no invented pressure ratings on this page.

Typical specification

At a glance

Item	Typical value
Process	Metal AM segmented sample
Material	Al or Ti alloy
Form	Lattice + fin arch detail
Features	Truss lattice beside wavy fins
Post	Powder flush between cells / fins

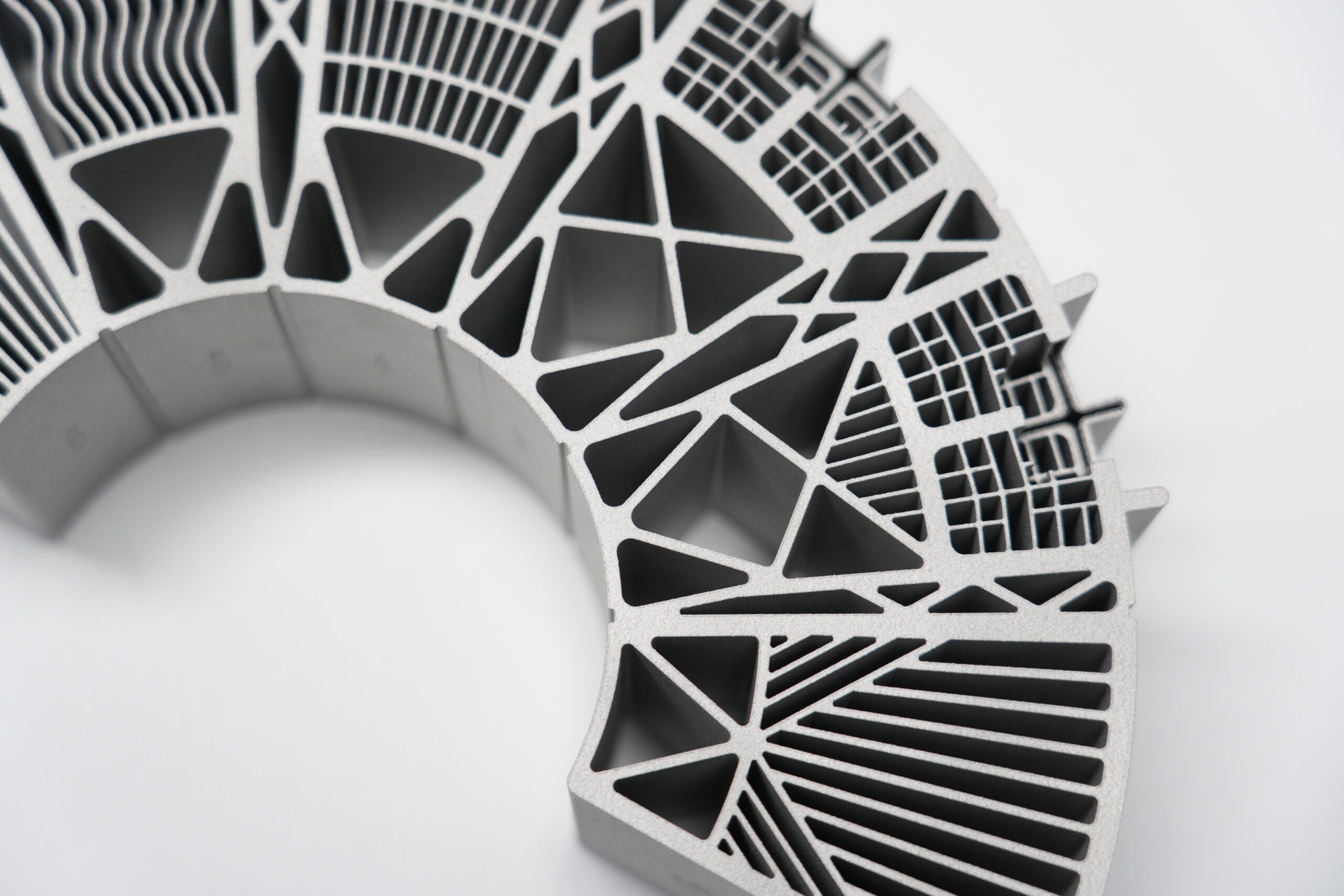

Close-up of segmented metal AM arch with lattice trusses and wavy fin channel coupons — Photo courtesy xa-blt.com (authorized for 3DWK use). 3DWK part case — brand remains 3DWK; not a BLT storefront listing.
