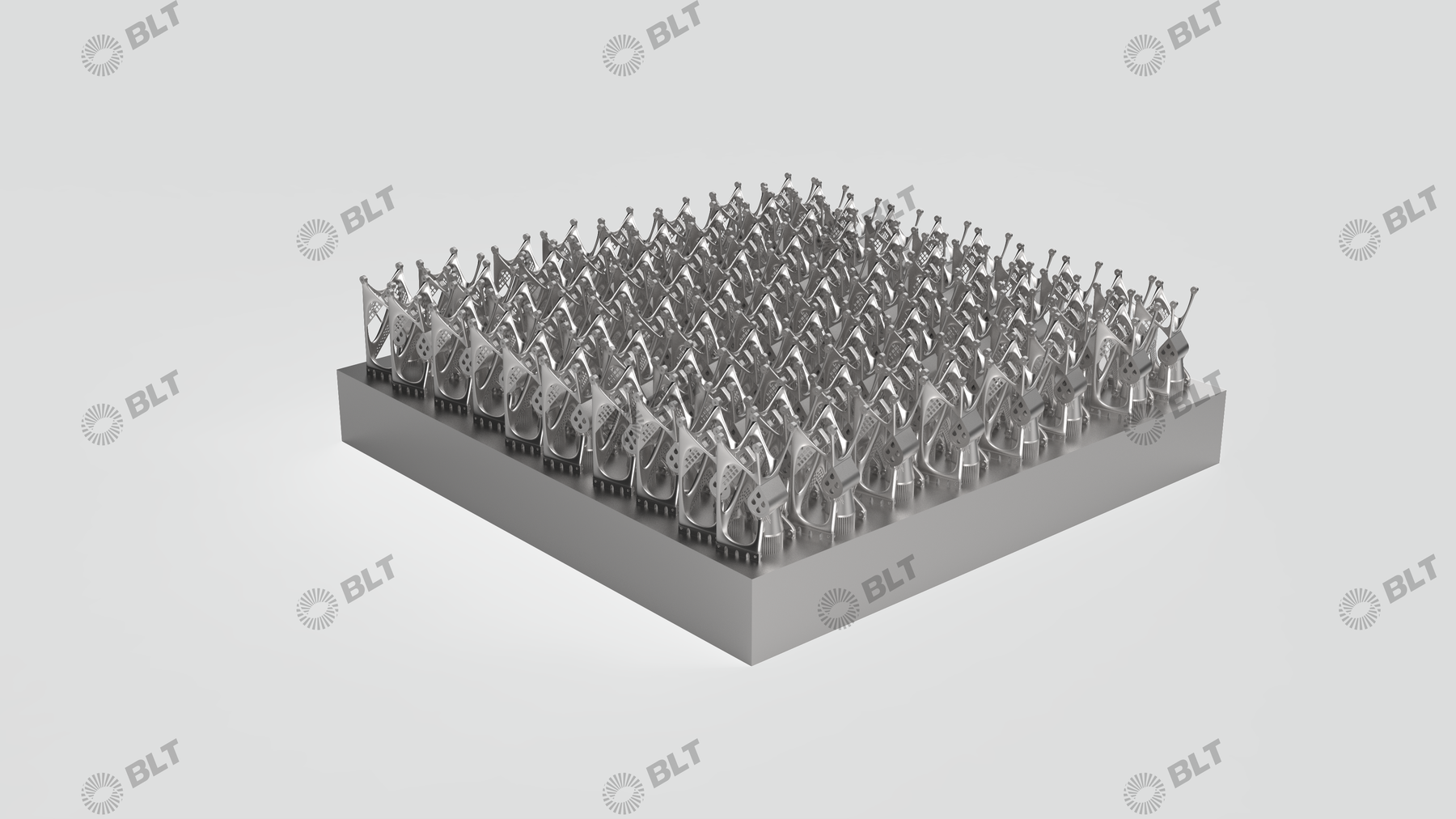

Dense nest of metal additive swirler blanks on a square build plate

Part case · Metal 3D Printing

Metal AM swirler batch nest on build plate

Name: Metal AM swirler batch nest on build plate
Brand: 3DWK

Hundred-piece nest of perforated swirler blanks still on the build plate — for discussing high-density nesting, support pins, and powder flush after a swirler production plate.

Upload a similar part Typical specs

Photo courtesy xa-blt.com (authorized for 3DWK use). 3DWK part case — brand remains 3DWK; not a BLT storefront listing.

ProcessMulti-part metal AM plate

FormPerforated swirler blanks

NestingDense full-plate grid

PostCut off; deburr TBD

Item	Typical value
Note	Nesting geometry sample

Swirler-nest framing

Dense perforated blanks need clear powder paths and a cut-off plan that does not warp thin walls.

Call perforation size class on the RFQ
Mark which faces stay as-built

Honesty bar

No claimed flow coefficients, burner OEM names, or cycle times on this page.

Next step

Have a similar part?

Upload CAD and drawings. An engineer reviews materials, tolerances and finish before pricing.
