Part example · Metal 3D Printing

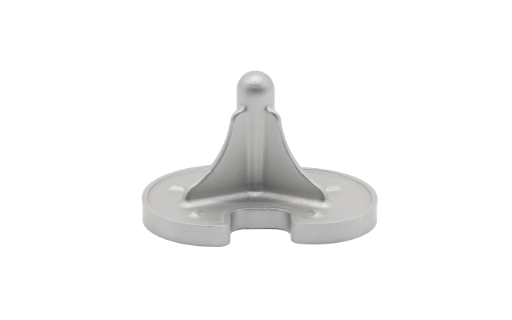

Metal AM tibial-tray style implant example
3DWK example (authorized photo). Incomplete parameters marked Example · to be confirmed / 「示例、待确认」. Orthopedic tray-style implant example with a central keel and reinforcing fins — for discussing metal AM medical blanks only; not a certified device.
Walk-through
1. Print near-net tray and keel with inspectable fillets
2. Remove supports carefully under the plate
3. Finish only faces called out on the drawing
What we will not invent
No patient outcomes, no OEM implant brands, no regulatory marks on this page.
Example geometry for conversation only — not a medical device listing.
Example · to be confirmed / 「示例、待确认」
Typical specification
At a glance
| Item | Typical value | Note |
|---|---|---|
| Process | Metal AM orthopedic blank | Example · to be confirmed / 「示例、待确认」 |
| Material | Ti alloy | Example · to be confirmed / 「示例、待确认」 |
| Form | Tray plate + central keel | Example · to be confirmed / 「示例、待确认」 |
| Fins | Triangular stiffeners | Example · to be confirmed / 「示例、待确认」 |
| Finish | Blast or polish TBD | Example · to be confirmed / 「示例、待确认」 |
Next step
Have a similar part?
Upload CAD and drawings. An engineer reviews materials, tolerances and finish before pricing.
