Part example · Metal 3D Printing
Metal AM tire tread mold segment

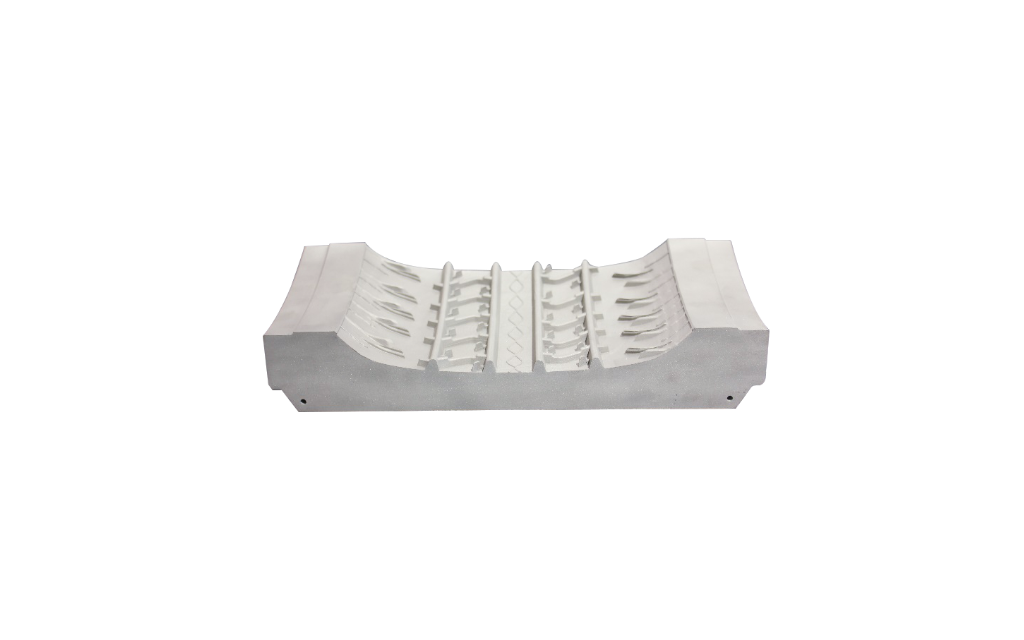

3DWK example (authorized photo). Incomplete parameters marked Example · to be confirmed / 「示例、待确认」. Curved tire-mold segment example with tread-negative detail, used to discuss metal AM tooling for patterned cavities — channel layout TBD on your CAD.
Typical specification
| Item | Typical value | Note |
|---|---|---|
| Process | Metal AM tool segment | Example · to be confirmed / 「示例、待确认」 |
| Material | Tool steel class | Example · to be confirmed / 「示例、待确认」 |
| Form | Arc segment, tread negative | Example · to be confirmed / 「示例、待确认」 |
| Cooling | Conformal channels TBD | Example · to be confirmed / 「示例、待确认」 |
| Finish | Cavity polish or texture | Example · to be confirmed / 「示例、待确认」 |
Tooling angle
Tire mold segments combine a curved cavity with fine tread negatives. Metal AM can form complex patterning; cooling and vent paths must be designed deliberately.
- Show water inlets/outlets on the drawing if conformal cooling is required
- Separate cavity finish callouts from AM blank notes
Example insert — not a production mold quote.
Honesty bar
No OEM tire brands, wear ratings, or invented cycle-life numbers on this page.
Example · to be confirmed / 「示例、待确认」
Next step
Have a similar part?
Upload CAD and drawings. An engineer reviews materials, tolerances and finish before pricing.
