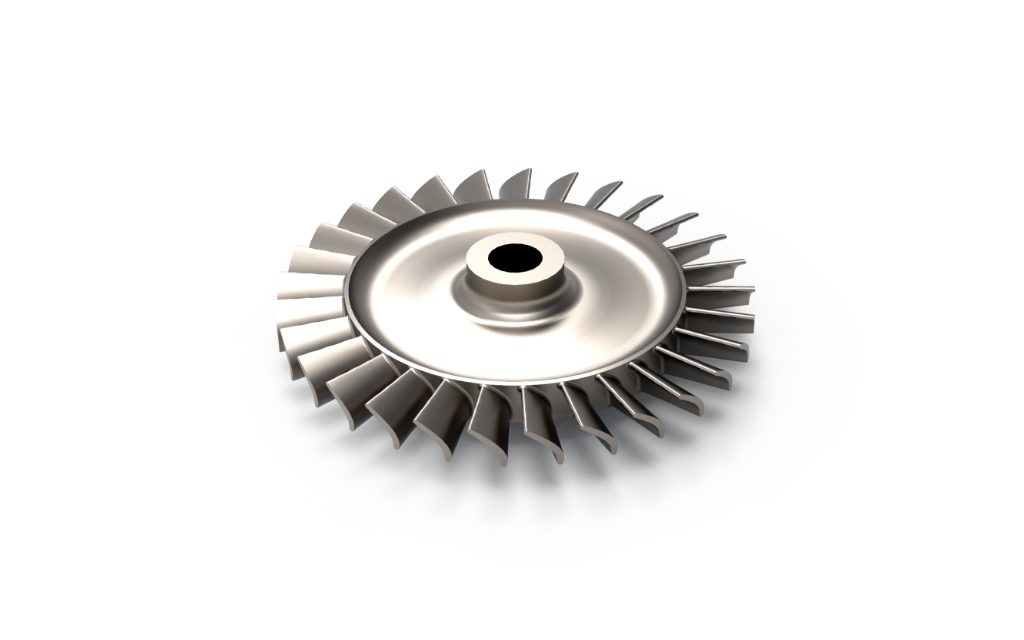

Metal AM turbine blisk (bladed disk) example
3DWK example (authorized photo). Incomplete parameters marked Example · to be confirmed / 「示例、待确认」. Integrated bladed-disk example for discussing metal AM airfoils and hub machining — not a certified aero rotor.
Walk-through
1. Print near-net blades with machining stock on the hub
2. Remove supports carefully between airfoils
3. Machine the bore and faces used for balance and assembly
What we will not invent
No customer engine models, no RPM or efficiency claims, no certification marks on this page.
Example geometry for conversation only.
Example · to be confirmed / 「示例、待确认」
Typical specification
At a glance
| Item | Typical value | Note |
|---|---|---|
| Process | Metal AM + CNC hub | Example · to be confirmed / 「示例、待确认」 |
| Material | Ti or Ni alloy | Example · to be confirmed / 「示例、待确认」 |
| Form | Bladed disk (blisk) | Example · to be confirmed / 「示例、待确认」 |
| Hub | Machined bore / faces | Example · to be confirmed / 「示例、待确认」 |
| Airfoil | As-built or blended | Example · to be confirmed / 「示例、待确认」 |
Next step
Have a similar part?
Upload CAD and drawings. An engineer reviews materials, tolerances and finish before pricing.
