Three ways shops take the “just machined” look off a part
After CNC milling or turning, edges carry burrs and faces show tool marks. Buyers often ask for a uniform matte look without knowing whether the shop should bead blast, tumble (barrel finish) or run a vibratory bowl. Those three processes overlap in purpose—deburr and blend—but they are not interchangeable. Bead blasting is a directional media spray against fixtured or handheld parts. Tumbling rolls parts with media inside a rotating barrel. Vibratory finishing shakes parts and media in a bowl or tub with continuous motion and usually better process control for delicate geometries.
This guide compares bead blasting, tumbling and vibratory finishing for machined metal parts so you can specify the finish that matches cosmetics, edges and downstream coatings.
What each process actually does
Bead blasting
Compressed air propels glass beads, ceramic beads or similar media at the surface. The operator or a fixture aims the stream. Peening action blends tool marks into a uniform matte texture. Masking protects threads, sealing faces and polished datums. Bead blast is common before anodizing aluminum and as a final cosmetic on stainless or steel when a soft satin look is desired.
Tumbling (barrel finishing)
Parts, media and compound go into a rotating barrel. Cascading action rubs media across edges and faces. It is efficient for large quantities of small, rugged parts. Fragile thin walls, precision external threads and parts that nest into each other can be damaged or poorly finished if the load is wrong.
Vibratory finishing
A vibratory bowl or tub moves media in a circulating path around the parts. Energy and media choice are tunable. Many shops prefer vibratory over barrel tumbling for parts that need gentler action, more consistent edge radii and easier in-process checks. Compounds clean, brighten or prepare for subsequent plating. None of these processes is a substitute for a precision ground or polished sealing face. They are surface-prep and edge-break tools with cosmetic side effects.
Side-by-side comparison
| Factor | Bead blasting | Tumbling (barrel) | Vibratory finishing |
|---|---|---|---|
| Motion | Directed media stream | Cascading barrel roll | Shaking / circulating bowl |
| Typical batch style | One-by-one or racked | Loose bulk | Loose bulk or fixtured in bowl |
| Texture character | Even matte; follows line of sight | Edge-focused; faces depend on media | Controlled edge break + blended faces |
| Masking critical faces | Straightforward | Difficult in bulk | Difficult in bulk; fixtures help |
| Thin walls / cosmetics | Good with care and distance control | Risk of nicks and peening damage | Better than barrel when tuned |
| Threads and fine features | Mask or expect dulling | High risk if unprotected | Risk; media size must clear features |
| Downstream anodize prep | Very common on aluminum | Less common as primary cosmetic | Used for deburr; blast may still follow |
| Best volume fit | Prototypes to mid volumes; selective faces | High volume small robust parts | Medium to high volume with more control |
Choosing by design intent
Uniform matte cosmetic on prismatic CNC parts
Bead blasting usually wins. You can rack parts, mask datums and hit visible faces deliberately. Specify media type at a high level (glass bead vs coarser grit blast) if the look matters, and call out “mask threads and sealing surfaces.”
Deburring hundreds of small turned pins or stampings
Tumbling or vibratory finishing wins on cost per piece. Vibratory is often safer for slightly more delicate shapes. Define acceptable edge break (for example, break sharp edges) rather than an Ra target the process cannot honestly guarantee on every face.
Edge break before plating or powder coat
Vibratory or tumbling with the right media removes feather burrs that would telegraph through coatings. Follow with rinse and the coating process notes. Bead blast can also prep, but bulk vibratory may be more economical when every edge matters and faces are not appearance-critical.
Aluminum parts headed to anodize
Bead blast (or a specified chemical etch path) is a frequent cosmetic prep. Tumbling aluminum can leave media residue or uneven sheen if not cleaned thoroughly. Say whether the anodize should show a blasted texture or a machined texture.
Media, pressure and time—what to put on the drawing
You rarely need to dictate PSI and brand of bead. Useful drawing language looks like:
- “Bead blast all visible exterior faces; mask Ø12H7 bore and M4 threads; matte uniform finish”
- “Tumble deburr; break sharp edges; protect against media lodged in blind holes”
- “Vibratory finish to remove burrs; max edge break 0.2 mm; no media in ports”
Avoid inventing a numeric Ra for bead blast unless you have a measured standard on a sample. Matte blast finishes vary with media size, angle, distance and alloy hardness. Approve a first-article sample when cosmetics are contractual.
Blind holes, cross-drilled passages and internal pockets trap media. Add a note to blow out, flush and inspect for lodged beads or chips—especially before assembly or anodize.
Interaction with machining and coatings
Tool marks that are very deep may still show ghosting after a light bead blast. If the cosmetic face is critical, ask for a finer last milling pass or a slightly longer blast—then lock the look with a sample.
Anodizing amplifies surface texture: a blasted aluminum part looks more matte after Type II anodize than a bright-machined one. Powder coat hides more texture but still likes stable edges without burrs. Plating can highlight every scratch; vibratory brightening plus careful handling may matter more than aggressive blasting.
Stainless passivation does not replace mechanical deburr. Remove burrs first, then passivate if specified.
Design habits that prevent finish scrap
- Keep wall thickness robust enough for bulk finishing if you plan to tumble
- Avoid unsupported thin fins that fold in a barrel
- Spot-face or counterbore so media does not wedge under fastener heads in ways that change torque later
- Call out non-blast zones with hatching on the drawing
- Do not expect bulk processes to hold sharp external corners that must remain crisp for branding or sealing
- For Swiss parts with tiny grooves, prefer targeted brushing or light blast over aggressive vibratory media that can peen groove edges

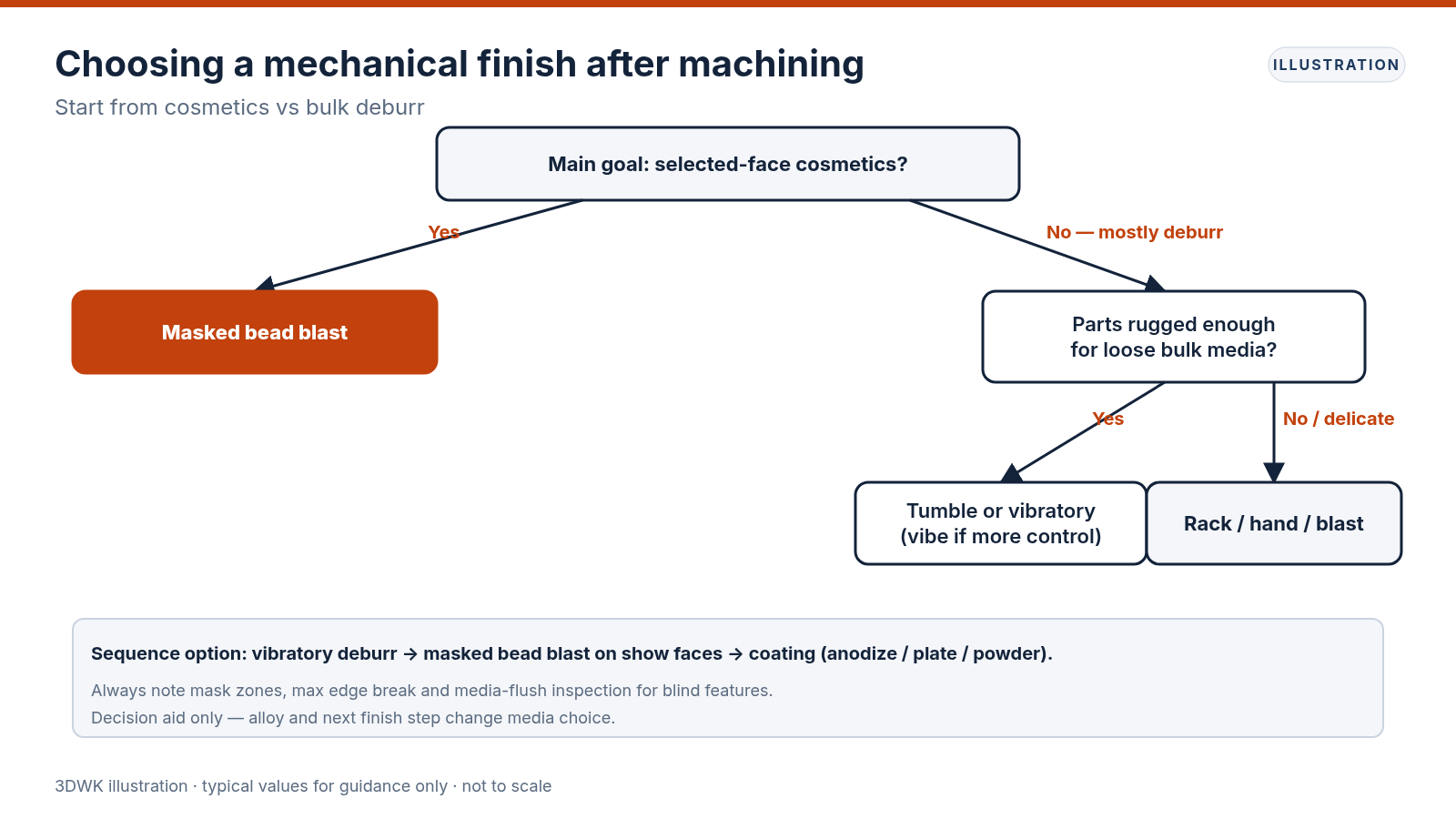

Process selection checklist
1. Is the goal mainly cosmetics on selected faces, mainly edge deburr, or both?
2. Can the part survive loose bulk media, or must it be racked?
3. Which features must be masked (threads, seals, bearing bores, polished logos)?
4. What coating follows (anodize, plate, powder, paint, none)?
5. Will media trap in internal passages?
6. Is there a sample or prior revision that defines the look?
If answers point to selective faces + masking + anodize, start with bead blast. If answers point to high volume + rugged + edge break, start with vibratory or tumble. If answers conflict, split the process: vibratory deburr, then masked bead blast on show faces.
Common specification mistakes
- Writing “sandblast” when a fine glass-bead satin was intended (coarser grit changes roughness and can embed)
- Tumbling precision external threads without protection
- Expecting bead blast to fix deep step marks from roughing toolpaths
- Omitting mask notes, then rejecting dulled sealing lands
- Lodged media discovered at assembly because blind holes were never flushed
- Copying a steel tumble note onto a soft aluminum cosmetic housing
Practical recommendation
For most machined housings and brackets that need a clean matte look before anodize or as final stainless cosmetics, specify masked bead blasting and approve a sample. For buckets of small non-cosmetic parts that only need safe edges, specify vibratory or tumble deburr with a maximum edge-break note. Use both only when bulk deburr plus a controlled show-face blast are clearly cheaper than hand work—and write that sequence on the drawing so the quote matches the process plan.
When you request a quote, include alloy, photos or prior samples if cosmetics matter, mask zones, and the next finish step. That context lets the shop pick media and motion without guessing.
