Aluminum CNC parts often need more than bare metal: corrosion resistance, paint or powder adhesion, and sometimes a conductive path for grounding or EMI gaskets. Two common answers are chemical conversion coating (chem film / chromate or qualified alternatives) and sulfuric Type II anodize. This article compares them for buyers—distinct from our separate guide on Type II vs Type III (hard) anodize, which focuses on thickness and wear.

Guidance below reflects typical practice for machined 6061 / 7075-class parts. Exact coating specs (for example chromate classes or anodize thickness bands) belong on your drawing from the standard you purchase—not from invented performance claims.

What each process is (buyer view)

• Adds very little dimensional thickness compared with anodize
• Often remains electrically conductive enough for grounding and EMI contact strategies (confirm against your specified class and test method)
• Serves as a paint / primer adhesion layer
• Offers corrosion protection that is usually lighter-duty than a well-sealed Type II anodize in harsh environments—follow your end-use standard

Appearance ranges from clear/iridescent to gold/brown depending on chemistry and class. Do not use color alone as the acceptance criterion unless your spec says so.

• Improves corrosion resistance and wear versus bare aluminum for many environments
• Is electrically insulating when sealed (important for grounding design)
• Builds measurable thickness on threads, fits and seal glands—see anodizing Type II vs Type III for thickness context
• Can be clear or dyed; sealing practice affects corrosion and dye retention

Type II is not the same as hardcoat Type III. If you need abrasion resistance on slides or wear faces, revisit the Type II vs Type III article rather than overloading Type II expectations.

Grounding, EMI and electrical continuity

This is the decision that most often separates chem film from anodize on electronic housings and chassis:

• Mating surfaces must stay conductive for ground straps, EMI gaskets or connector shells
• You will mask anodize anyway on contact patches—and chem film on the whole part is simpler
• Dimensional change must stay minimal on fine threads and press fits

• Corrosion and wear matter more than conductivity
• You can mask defined grounding islands or use conductive fasteners / jumpers as the electrical path
• Cosmetic color or a more durable sealed oxide is required

Never assume “anodize everywhere” on a grounded enclosure without a continuity plan. Masking notes and contact pad locations belong on the drawing.

Paint, powder and adhesion

Both finishes are used under organic coatings, but for different reasons:

• Chem film is a classic pretreatment before primer and paint on aluminum assemblies
• Type II anodize (often unsealed or specially prepared per paint spec) can also underlie coatings—follow the coating system’s process note

If the visible requirement is powder coat or wet paint, say so explicitly and name the pretreatment. “Chem film or anodize, shop choice” creates inconsistent adhesion and color. See powder coating vs painting metal parts for topcoat selection; keep pretreatment choice aligned with that system.

Corrosion expectations (without invented hours)

Salt-spray hours and beach-exposure stories vary with alloy, temper, coating class, seal quality and scribe rules. Buyers should:

• Specify the coating standard and class you purchase
• Define the end environment qualitatively (indoor electronics, outdoor industrial, marine splash, etc.) without fake hour guarantees on the drawing title block
• Combine coating choice with design: drain paths, dissimilar-metal galvanic couples and seal glands matter as much as the film

Chem film alone may be enough for mild indoor use and painted parts. Harsher exposure often pushes sealed Type II—or paint over chem film—depending on the OEM spec.

Dimensional and machining implications

• Chem film: typically negligible for most CNC tolerances; still note it when Class III threads or optical stack-ups are involved
• Type II: plan for buildup on shafts, bores, threads and O-ring glands—mask, chase threads or machine coat allowance

Drawing notes that keep quotes accurate

Ambiguous “anodize or chem film” notes waste time. Prefer:

• Process family: chem film (conversion coat) vs Type II anodize
• Spec / class your company uses (without requiring a competitor’s brand name unless mandated)
• Color: clear / dye color for anodize; class appearance for chem film if required
• Seal requirement for anodize (sealed vs unsealed) when it affects paint or corrosion

• Surfaces that must remain conductive
• Threads and fits to mask or size before coat
• Cosmetic faces that must be free of rack marks if that is contractual

• Machine → deburr → coat → assemble
• Any insert installation before or after coat (see thread inserts vs tapped holes)
• Paint / powder after pretreatment

Inspection and acceptance

Typical buyer checks:

• Visual coverage and color consistency per class
• Touch-up policy (often restricted)
• Conductivity or electrical bond checks on defined pads when grounding is required
• Thickness checks on anodize where fits are critical
• Adhesion checks when the part is a painted FAIR piece

Do not demand salt-spray certification on every prototype cover unless the contract needs it—cost and lead time jump.

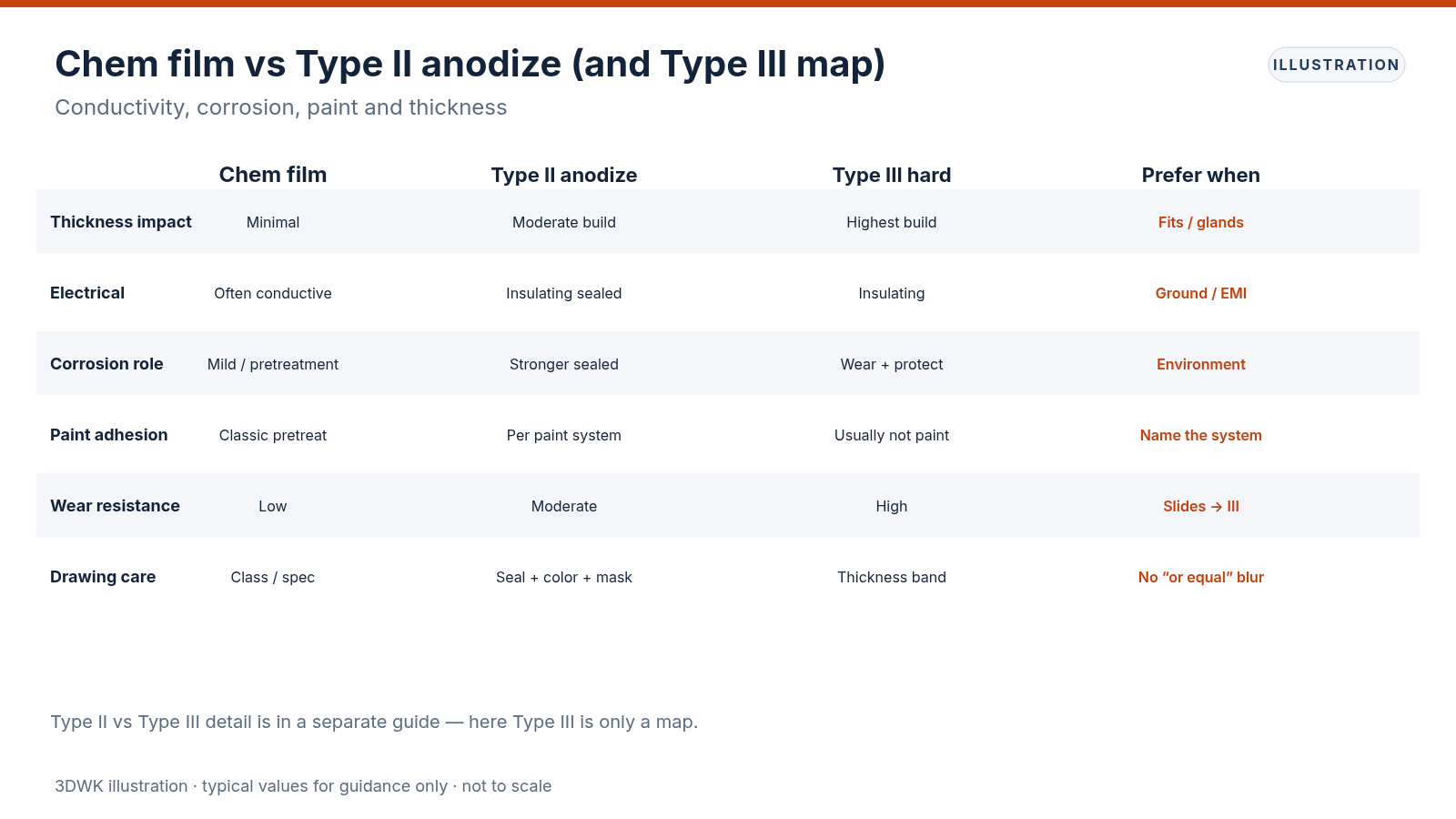

Chem film vs Type II vs Type III (quick map)

• Chem film: thin, often conductive, great pretreatment, mild standalone corrosion use cases
• Type II: decorative / protective oxide, usually insulating when sealed, moderate thickness
• Type III: hardcoat for wear—see the dedicated Type II vs Type III guide

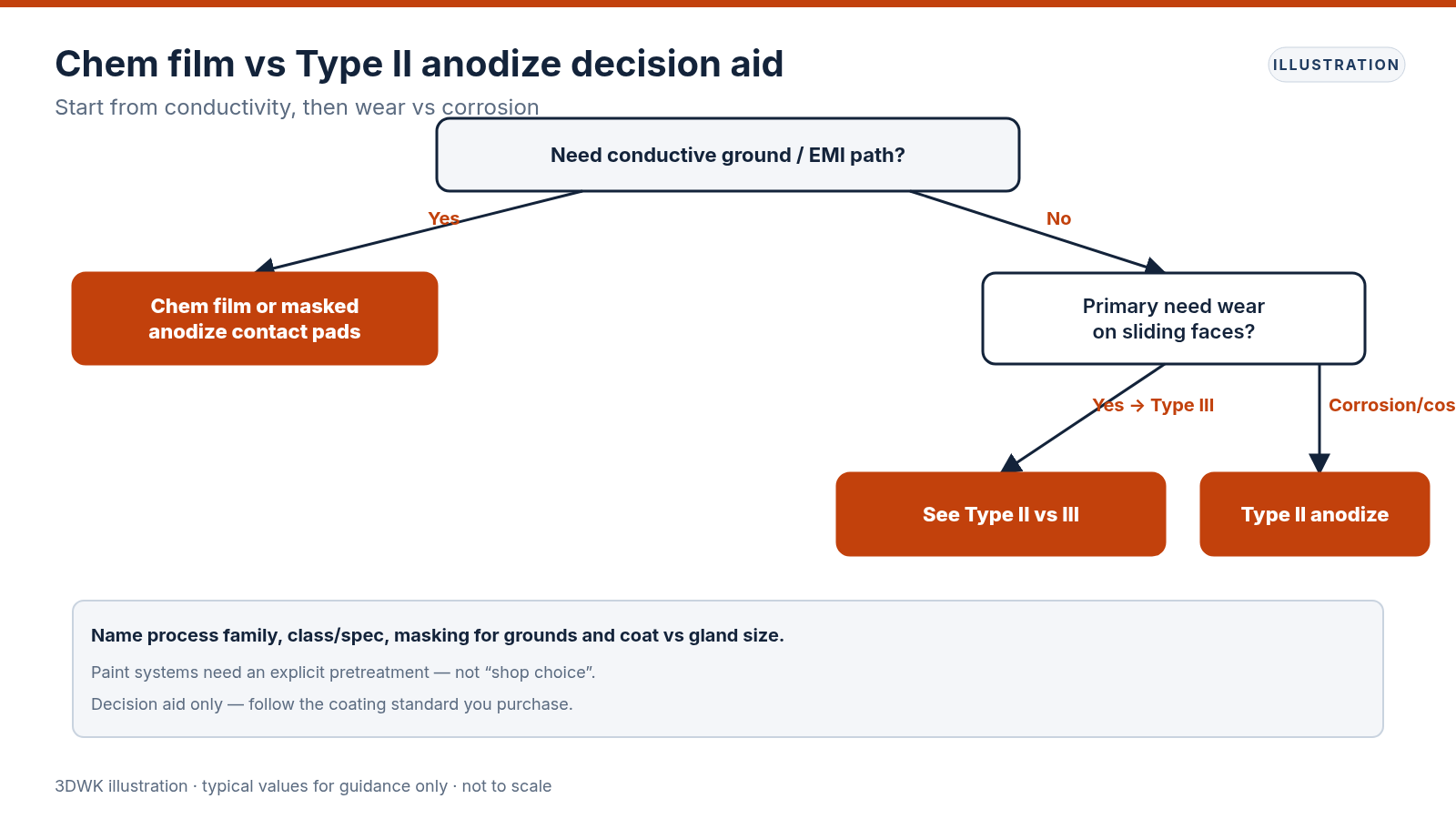

Pick from function: conductivity → chem film or masked anodize; corrosion/cosmetic → Type II; abrasion → Type III discussion.

Common RFQ mistakes

• Anodizing an EMI chassis solid with no conductive pads or jumpers
• Applying Type II thickness to O-ring grooves sized bare
• Writing “chromate” without a current acceptable spec when your region restricts hexavalent systems
• Mixing powder-coat cure expectations with an unsealed anodize note copied from another job
• Asking for dyed Type II and chem film conductivity on the same unmasked surface
• Omitting rack-mark zones on large cosmetic plates

Cost and lead-time drivers (no fixed prices)

Chem film is often quicker and cheaper than anodize for simple parts. Costs rise with masking complexity, dyeing, sealing, tight cosmetic standards, and combo systems (coat + paint). Type III and heavy masking are separate cost conversations. Tell the estimator the functional priority: ground path, paint adhesion or corrosion—so they do not default to the wrong process.

Checklist before you release the drawing

• Function: conductivity, corrosion, paint adhesion, wear
• Process family and class / thickness band from your standard
• Masking for grounds, threads and fits
• Sequence with inserts, paint and assembly
• Inspection needs (bond check, thickness, visual class)

When the finish callout matches the electrical and environmental design, housings work in the field—not only on the rendering. For aluminum CNC parts, use the CNC machining service and aluminum 6061 material pages, and submit drawings through the quote form.
