Counterbore vs countersink vs spotface for CNC bolted joints

Counterbore, countersink and spotface compared for CNC bolted joints: drawing callouts, angles, depths, coating notes and RFQ checks without invented fastener ratings.

By 3DWK Engineering Team · · 7 min read

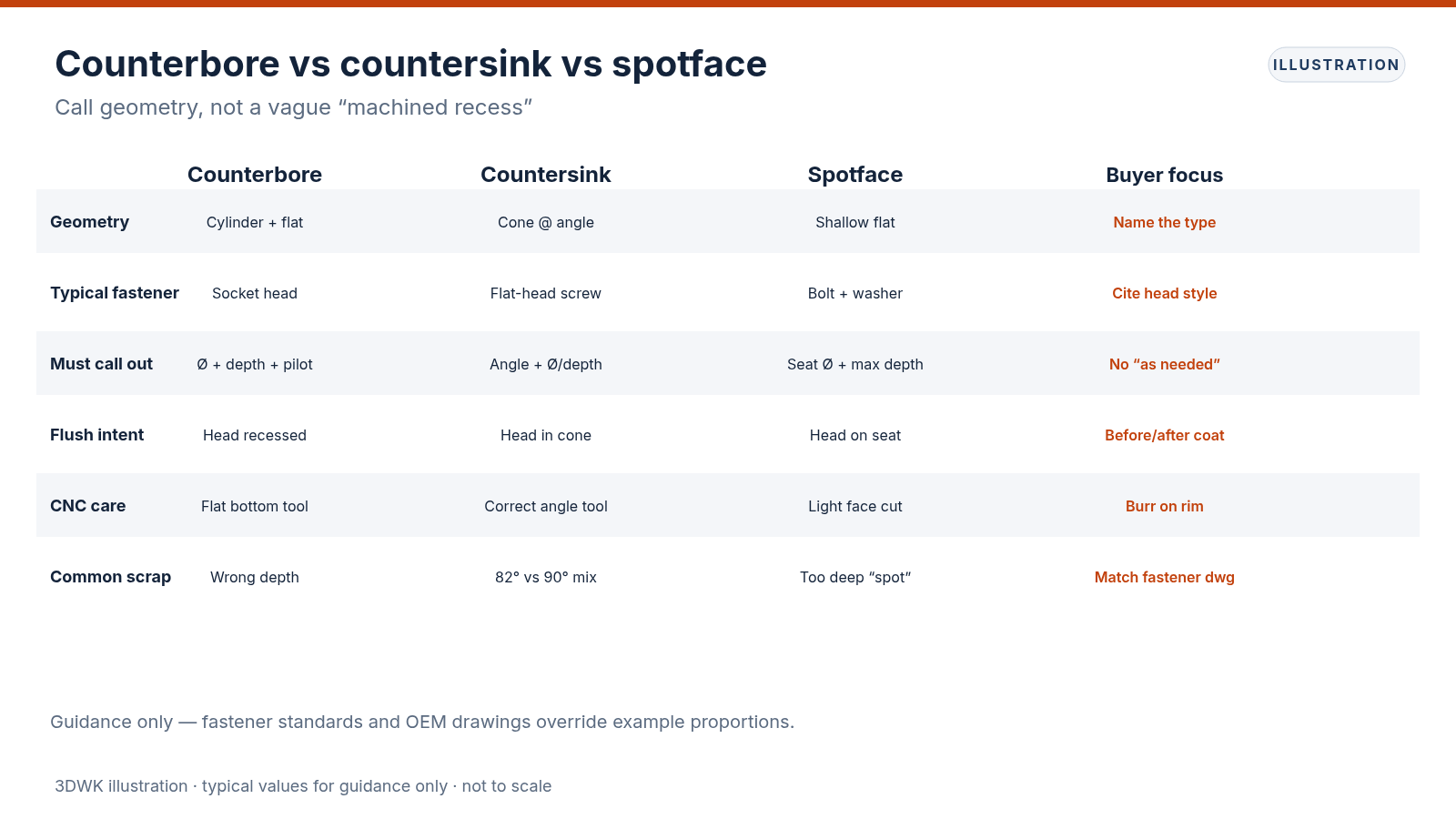

Comparison table of counterbore, countersink and spotface covering geometry, fasteners, callouts and CNC scrap risks
Illustration: 3DWK original diagram (typical values, not to scale).

Why bolted-joint callouts confuse CNC quotes

Counterbores, countersinks and spotfaces all clear fastener heads or create a flat seat for a washer or bolt head—but they are not interchangeable on a drawing. Buyers who write “C’sink for M6” without angle, diameter and depth force estimators to guess, and shops that guess wrong scrap the first article. This guide compares the three features for CNC bolted joints, shows typical drawing callouts and lists RFQ notes that keep aluminum and steel housings on schedule. Values below are common industry practice for metric fasteners; your OEM standard and fastener drawing override any rule of thumb.

For related fastener and hole practice, see designing threads and tapped holes, thread inserts vs tapped holes in aluminum, and GD&T basics for buyers. Surface finish on seats matters when sealing washers or soft gaskets ride on the joint—see surface roughness Ra for machined parts.

Counterbore, countersink and spotface defined

Counterbore

A counterbore is a flat-bottomed cylindrical recess that lets a socket-head or similar fastener sit flush or below the surface. Typical elements on the drawing:

  • Counterbore diameter (clearance for the head)
  • Counterbore depth (from the top face to the flat seat)
  • Through or pilot hole diameter for the shank
  • Optional bottom fillet or corner break if the tool cannot leave a sharp internal corner

Counterbores are the default choice when you need a flat bearing surface under a hex socket head and a controlled depth so the head does not protrude into a mating cover.

Countersink

A countersink is a conical recess that matches a flat-head (countersunk) screw. Typical elements:

  • Included angle (commonly 82° or 90° for many inch and metric flat-head screws; some aerospace and specialty fasteners use other angles—match the fastener drawing)
  • Major (outer) diameter of the cone at the face, or depth of the cone
  • Pilot / through hole for the shank
  • Whether the head must sit flush, proud or slightly underflush

Angle mismatch is the most common countersink scrap cause: an 82° screw in a 90° seat does not seat correctly and can crack thin heads under torque.

Spotface

A spotface is a shallow flat circular seat, usually just deep enough to clean a casting skin, mill scale or uneven plate so a washer or bolt head lands on a flat. Compared with a full counterbore:

  • Depth is minimal (often only a few tenths of a millimeter to a small fraction of the fastener head height)
  • Diameter is sized for the washer or head bearing area
  • The through hole is still required for the shank

Spotfaces are common on castings and flame-cut plate; on fully CNC-milled faces they are used when you want a local flat without sinking the head into a deep counterbore.

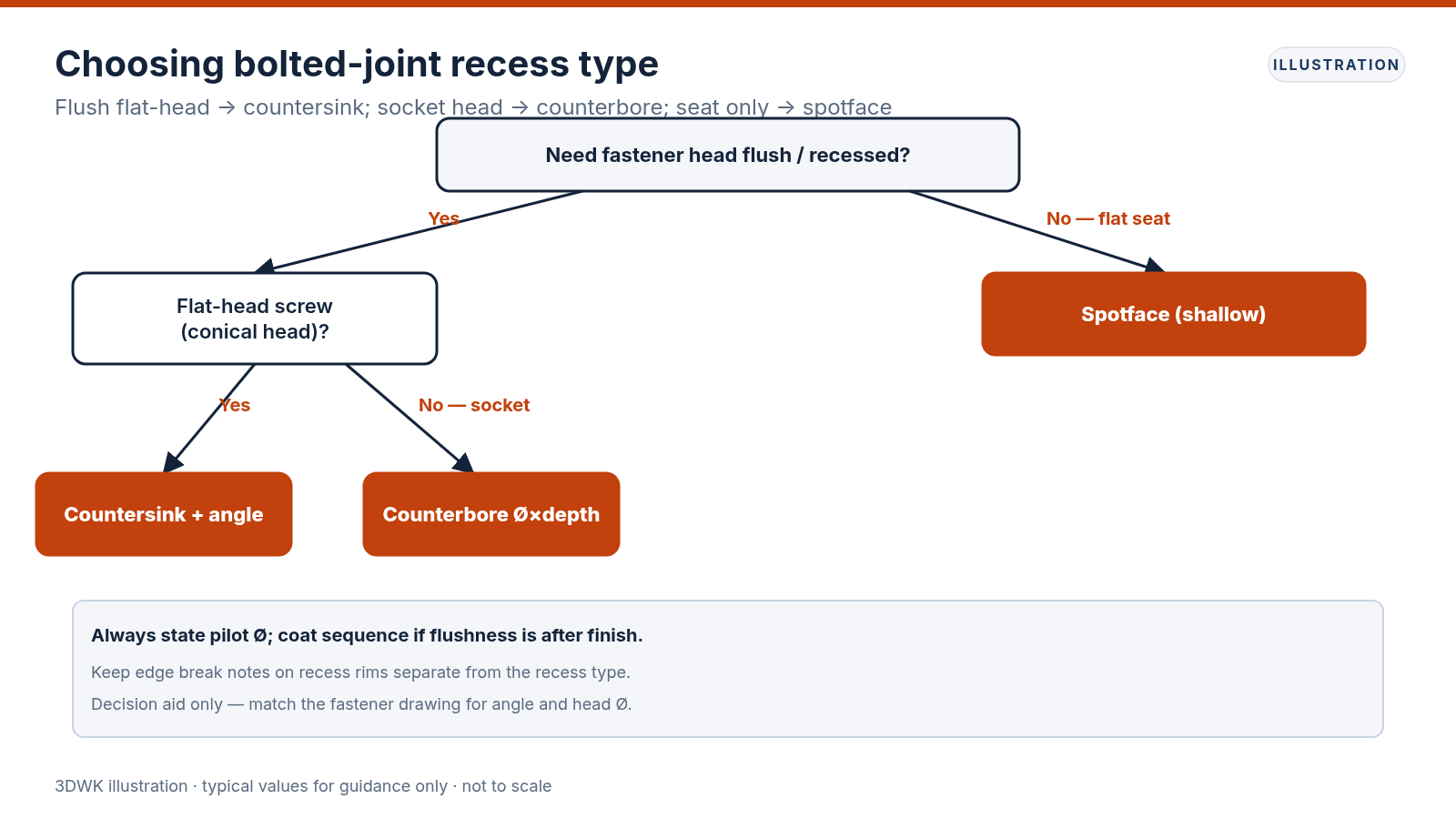

Decision flowchart choosing countersink, counterbore or spotface from flush and fastener head type
Illustration: 3DWK original diagram (typical values, not to scale).

Side-by-side comparison for RFQ language

Use distinct words on the print. Do not write “C’bore / C’sink as required.”

FeatureGeometryTypical fastenerWhat the shop must know
CounterboreCylinder + flat bottomSocket head, some flanged headsØ, depth, pilot Ø, bottom condition
CountersinkCone at stated angleFlat-head / countersunk screwsAngle, major Ø or depth, pilot Ø
SpotfaceShallow flat seatHex bolt + washer, flange jointsSeat Ø, max depth, pilot Ø

Illustration 1 in this article summarizes those columns for buyers who prefer a visual matrix.

Drawing callouts that estimators can price

Counterbore notes that work

Prefer explicit dimensions over vague notes:

  • “Ø11 counterbore × 6.5 deep; Ø6.6 through” for an M6 socket-head style joint (verify against your fastener and washer stack—these are example proportions only)
  • Datum and position tolerance on the through hole if the bolt pattern is critical; do not assume the counterbore diameter automatically carries the same tolerance story
  • State whether depth is measured to the flat seat and whether a small fillet at the counterbore bottom is allowed

Avoid “counterbore for SHCS” without sizes. Head catalogues differ by standard and manufacturer family.

Countersink notes that work

  • Call the included angle every time: “90° countersink to Ø12” or “82° × 6.5 deep”
  • If flushness matters cosmetically, say “head flush to −0.1 / +0.0” or similar—shops need a target, not “flush”
  • On thin walls, check remaining material under the cone; a deep countersink can break into a pocket or O-ring groove

Spotface notes that work

  • “Spotface Ø18 × 0.5 deep max” (depth as a maximum is common when the goal is only a flat seat)
  • Relate the spotface to the bolt pattern with position if the washer must clear adjacent walls
  • On castings, note whether the spotface must fully clean the as-cast surface or a partial land is acceptable

Geometry interactions shops watch for

Edge distance and thin walls

A large counterbore near a part edge leaves a thin crescent of material that can break during machining or under clamp load. Give estimators the edge distance from counterbore OD to the outer wall. Spotfaces near ribs on castings need enough land so the tool does not dig into the rib fillet.

Stack-up with coatings

Anodize, plating and powder coat add thickness on the face and inside diameters. If the head must sit flush after coating, state whether counterbore / countersink sizes are before or after finish. Chem film builds little thickness; Type II and Type III anodize and powder coat change the story—see chem film vs Type II anodize and anodizing Type II vs Type III.

Threaded holes under countersinks

When a flat-head screw threads into the same part, the countersink major diameter and the thread minor diameter compete for material. Leave enough unthreaded length of full cone, or use a separate threaded insert below the cone. See thread inserts vs tapped holes in aluminum for insert clearance notes.

Bolted joint patterns

Patterns of six or eight fasteners often mix counterbores on one face with tapped holes on the mating part. Call which side is counterbored. Do not rely on “typical assembly” notes in a 3D model alone—2D or PMI must state the recess type per hole.

CNC process implications

Tooling

  • Counterbores: end mills, dedicated counterbore tools or spot drills followed by milling; flat bottoms may need a second pass if a drill point remains
  • Countersinks: single-flute or multi-flute countersink cutters at the correct angle; form tools matched to the fastener
  • Spotfaces: short end mills or counterbore tools at shallow depth

Estimators care about quantity of holes, hardness of material and whether holes are on one face (single setup) or wrap a housing (multi-setup or five-axis). Five-axis aluminum housing tips cover when ports and bolt patterns on several faces drive setup count.

Burrs and edge break

Countersink lips and counterbore rims raise burrs that nick O-rings and technician hands. Spec an edge break or light chamfer on the rim if the joint is handled often. See the companion guide on edge break, chamfer and deburr callouts for wording that inspectors can measure.

Inspection

  • Counterbore: depth micrometers, pin gauges for pilot, optical or CMM for position
  • Countersink: angle gauges, major diameter at the face, flushness of a sample screw
  • Spotface: depth as maximum, flatness of the seat when a sealing washer is used

First article inspection reports should list each recess type separately when angles or depths differ across the pattern.

Material notes for common CNC metals

Aluminum (6061, 7075)

Aluminum countersinks and counterbores machine cleanly. Soft alloy can smear if feeds are wrong—shops manage that; buyers should still avoid ultra-thin remaining walls under deep cones. After Type II anodize, dark dye can highlight any chatter on cosmetic countersinks—call cosmetic faces explicitly.

Steel and stainless

Steel needs sharper tools and may leave tougher burrs. Stainless work-hardens; bank on deburr time in the quote when many countersinks appear on 304 / 316 parts. See stainless 304 vs 316 vs 17-4PH for alloy selection context.

Plastics

PEEK and POM accept counterbores well but creep under high clamp load on small spotfaces. Do not copy metal flushness targets into plastic without checking washer OD and clamp force.

RFQ checklist for bolted-joint recesses

Before you send the package:

1. Every fastener location states counterbore, countersink or spotface—not a generic “machined recess.”

2. Countersinks include included angle and major Ø or depth.

3. Counterbores include Ø and depth to the flat seat plus pilot Ø.

4. Spotfaces include seat Ø and max depth.

5. Coating sequence vs final size is stated when flushness matters after finish.

6. Edge distance and thin-wall risks are visible on the drawing or noted in the RFQ text.

7. Sample fastener standard or head style is named when “for SHCS” would otherwise be ambiguous.

8. Deburr / edge-break expectations on recess rims are written, not assumed.

Illustration 2 walks a simple decision path: flush flat-head → countersink; recessed socket head → counterbore; flat seat only → spotface.

Common specification pitfalls

  • Mixing 82° and 90° language on the same drawing family without tying each hole to a fastener
  • Calling a deep spotface that is actually a counterbore (inspectors then argue about depth tolerance)
  • Applying one position tolerance balloon to a pattern where only the pilot holes are critical and the counterbore OD is clearance
  • Leaving countersink depth “until flush” with no tolerance band on cosmetic covers
  • Ignoring washer OD when specifying spotface diameter—too small a seat bruises soft washers

How 3DWK uses this on quotes

When your RFQ lists clear recess types, angles and depths, CNC estimators can select tools, count ops and plan deburr without a clarification loop. Ambiguous “C’sink / C’bore as needed” notes delay the quote. Attach the fastener standard or a head-dimension excerpt when the joint is non-standard. For production intent on machined housings and plates, request a quote with the drawing package and call out which holes are structural versus cosmetic.

Pair this comparison with designing threads and tapped holes when the same part carries both recesses and threads, and with flatness / parallelism / perpendicularity when large covers bolt across a wide face. If your joint also seals, review O-ring groove design for CNC housings so bolt holes never cross the gland path.
