Why edge callouts decide whether parts ship or bounce
CNC buyers often leave edges as “break sharp edges” in the title block and then argue with inspectors about whether a 0.1 mm chamfer, a 0.5 mm blend or a hand-filed corner meets intent. Edge break, chamfer and deburr are related but not identical. This quality-focused guide explains how to write callouts inspectors can measure, which pitfalls inflate scrap and rework, and what belongs on an FAI checklist for machined metal and plastic parts. Typical size bands below are common practice guidance—not a universal default for aerospace, medical or safety-critical edges.
Related reading: surface roughness Ra for machined parts, first article inspection reports, GD&T basics for buyers, and flatness / parallelism / perpendicularity when edges sit on datum features.
Definitions buyers should keep separate
Deburr
Deburr means removing the raised residual material (burr) left by cutting, drilling or punching. It is a cleanliness / safety / assembly requirement. Deburr alone does not create a controlled chamfer size. A part can be deburred and still have an essentially sharp corner with a tiny break.
Edge break
Edge break is a small removal of the theoretical sharp intersection of two surfaces—often a light blend or tiny chamfer—so the edge is no longer knife-sharp. Drawings commonly say “break sharp edges 0.1–0.3” or similar. The intent is handling safety and minor assembly lead-in, not a large cosmetic bevel.
Chamfer
A chamfer is a deliberate flat (or sometimes defined angle) cut that replaces the sharp corner with a measurable face, typically called as 0.5 × 45° or 1 × 45°. Chamfers are used for:
- Lead-in on shafts and bores
- Bolt-hole rims and countersink blends
- Cosmetic perimeter breaks on visible covers
- Clearing a radius on a mating part
Radius / fillet at the external edge

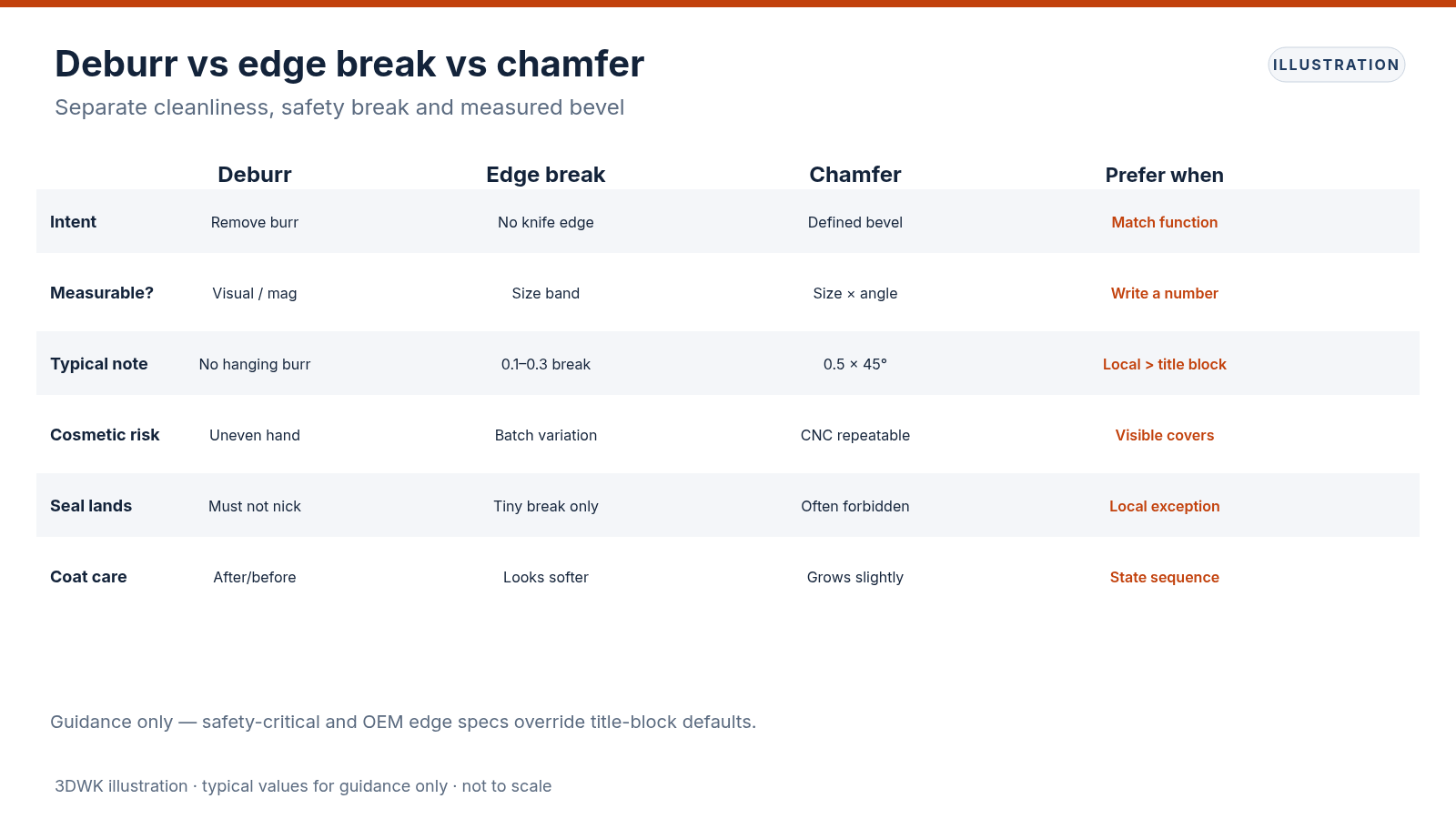

Some buyers want a rounded external edge (true radius) instead of a flat chamfer. Say “R0.2 max external edge” or similar. Do not assume “break edges” means a radius; many shops will chamfer unless you show an R. Illustration 1 maps deburr vs edge break vs chamfer vs radius against typical intent so RFQ wording stays consistent across a drawing set.
Title-block defaults vs local callouts
A title-block note such as “break sharp edges 0.1–0.5 mm unless otherwise specified” sets a default. Local callouts override it for functional edges:
- Seal land edges that must stay relatively sharp or within a tiny break so the O-ring is not cut—and must not get a large 1 mm chamfer
- Bearing seat corners where a large chamfer steals race contact width
- Thread starts that need a defined chamfer (often 45°) for gauging and assembly
- Cosmetic faces where a uniform visible chamfer is part of the product design
Rule of thumb for clear drawings: keep the title-block band narrow and realistic, then balloon every edge that cannot tolerate that band.
Specification pitfalls that cause rejects
Pitfall 1: “Deburr all edges” with no size
Inspectors cannot measure “deburr.” Pair deburr language with an edge-break size band or a Chamfer note on critical edges. Use “no burrs visible at 10×” only when you also define magnification and accept that it is a visual standard, not a dimensional one.
Pitfall 2: One huge range everywhere
“Break edges 0.05–1.0 mm” looks flexible and produces inconsistent looking parts across a batch. Assemblers notice. Prefer a tighter default (for example 0.1–0.3) and local 0.5 × 45° where lead-in needs it.
Pitfall 3: Chamfer into a tolerance stack
A 1 × 45° chamfer on a small boss can consume most of a short length tolerance. Check remaining flat width after chamfer. On thin flanges, large chamfers create knife edges of their own.
Pitfall 4: Ignoring coating build
Anodize and plating round and thicken edges. A barely broken edge before Type II anodize can look softer after dye; a large chamfer grows. State whether edge sizes apply before or after finish when the edge is cosmetic or sealing-critical. See chem film vs Type II anodize and anodizing Type II vs Type III.
Pitfall 5: Mixing units and symbols
Inconsistent “0.010″ break” on a metric drawing, or C0.5 vs 0.5 × 45° without a legend, slows inspection. Pick one convention and stick to it on the sheet.
Pitfall 6: Expecting perfect uniformity from hand deburr
Hand tools leave more variation than CNC chamfer cycles. If visual uniformity matters on a consumer-facing cover, call a machined chamfer with a tolerance, not only “break edges.”
Inspection notes that belong on the FAI plan
What to measure
- Chamfer size: length of the chamfer face or the resulting flat widths, per your callout style
- Angle: 45° is common; verify when the note states an angle
- Edge-break band: often verified with optical comparator, edge gauges or calibrated microscope for small breaks
- Burr presence: visual under agreed magnification on hole exits, pocket rims and thread starts
Sampling
For high hole counts, sample hole-exit burrs rather than 100% optical on every hole unless the risk demands it. State the sample plan on the FAI / quality notes so the shop and your receiving team share expectations. First article inspection reports should photograph representative edges when cosmetic grade is part of acceptance.
Datums and edges
Do not put an aggressive chamfer on a datum edge that inspectors use for fixturing unless the datum scheme accounts for it. GD&T basics for buyers covers when datum simulators assume clean corners.
Process notes for CNC suppliers
Machined chamfers
Produced with chamfer mills, spot drills, or tool-nose radius strategies on turned corners. Repeatable and easy to CMM. Prefer these for visible perimeters and shaft lead-ins.
Tumbling / vibratory
Batch edge break for small parts. Good for light burr removal; poor when edges must stay sharp in some zones and broken in others—masking is limited. See bead blast vs tumble vs vibratory finish for process character (finish change is a side effect).
Manual deburr
Files, scrapers, brushes, stones. Necessary for complex pockets and intersecting holes. Call critical edges that must not be over-broken by hand.
Hole exits and cross-drills

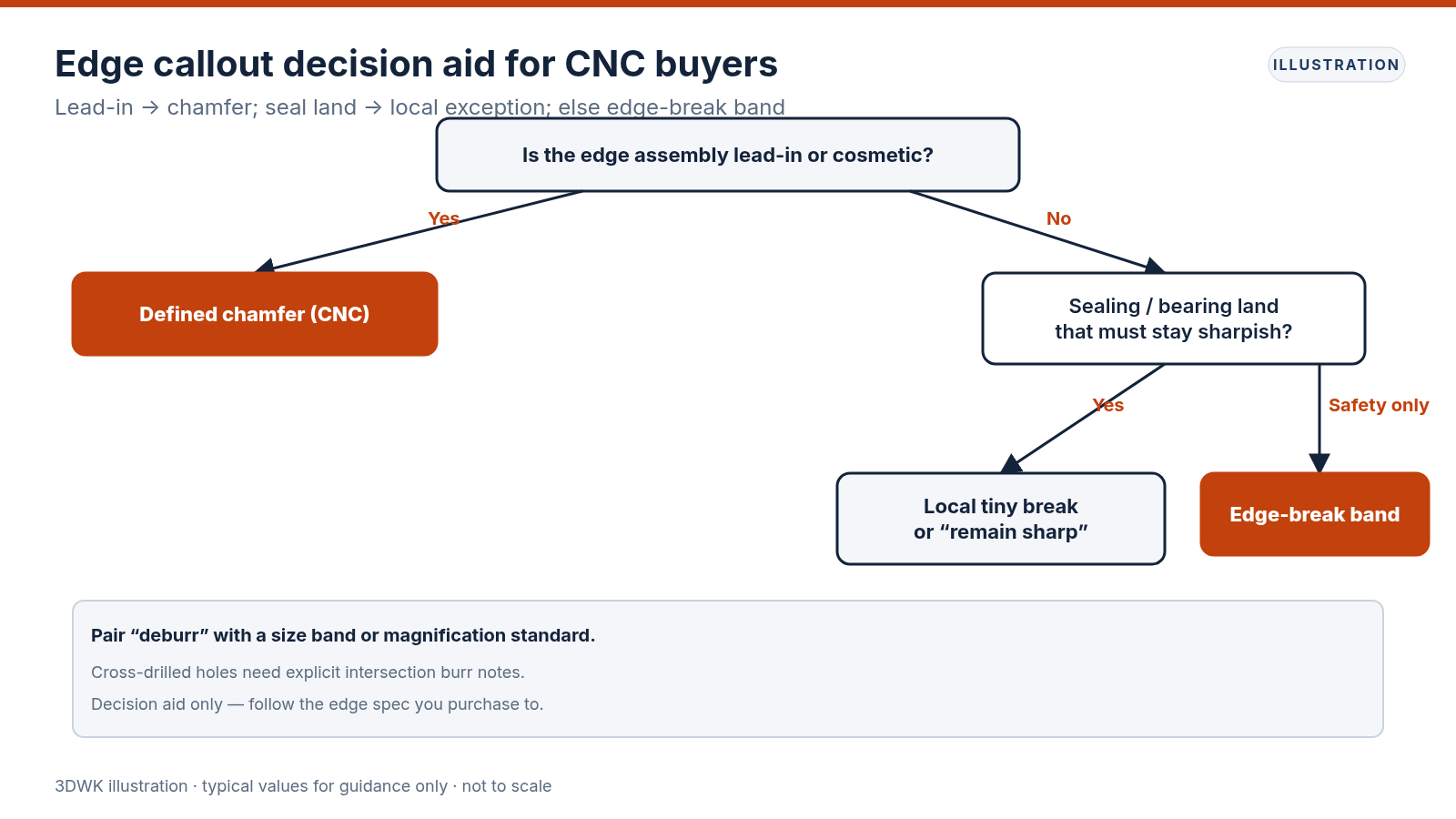

Cross-drilled holes leave stubborn burrs at intersections. If a passage is hydraulic or pneumatic, say “break intersection burrs; no hanging chips” and whether a small intentional blend is allowed. Deep-hole work adds exit burr risk—see deep-hole drilling and gun drilling. Illustration 2 provides a buyer decision path: safety/handling only → edge-break band; assembly lead-in → defined chamfer; sealing land → local exception; cosmetic cover → machined uniform chamfer.
Material-specific caveats
Aluminum
Soft alloys roll burrs rather than snap them; anodize highlights uneven hand breaks on cosmetic faces. Prefer CNC chamfers on visible aluminum covers.
Stainless steel
Stringy burrs on 304 / 316; budget deburr time on dense hole patterns. See stainless 304 vs 316 vs 17-4PH.
Steel, heat-treated
Deburr before harden when possible; after harden, edges are costlier to blend. Coordinate with heat treating steel after CNC machining notes on the drawing.
Plastics
PEEK / POM can melt into whiskers under dull tools; “no fuzzy edges” may appear on quality notes. Avoid aggressive tumbled media that dull precision diameters.
RFQ and drawing checklist
1. Title-block edge default is a narrow, realistic band—or explicitly “remain sharp” where required.
2. Functional edges (seals, bearings, threads, datum contacts) have local callouts.
3. Chamfers use a measurable form (size × angle or C notation per your standard).
4. Deburr language tied to magnification or “no hanging burrs” on named features.
5. Coating sequence vs edge acceptance is stated when finish is present.
6. Cosmetic faces marked if uniform appearance matters.
7. Cross-drilled or pocket intersections called out for burr control.
8. FAI sample plan for high hole-count parts agreed in the RFQ text.
How clear edge notes change quote quality
Estimators price CNC chamfer cycles differently from blanket hand deburr. When every cover edge must match a 0.5 × 45° look, say so. When only hole exits need attention, say that too—over-specifying hand work on every edge raises cost without improving function. For housings that also carry O-ring glands, keep gland mouths consistent with O-ring groove design guidance so install does not nick the ring.
Closing guidance
Write edge intent the way you write hole tolerances: measurable, local where needed and honest about whether hand blend is acceptable. Ambiguous “deburr / break edges” notes are a top source of receiving inspection friction on otherwise good CNC parts. Attach photos of acceptable and unacceptable edges for cosmetic grades when the product is customer-visible. Request a quote with drawings that already carry these notes; clarifying edges after the PO is how schedules slip.
Related resources
Use surface roughness Ra alongside edge notes so shops do not polish a chamfer you only wanted broken. For bolted joint rims that need both a countersink and a clean exit break, see the counterbore vs countersink vs spotface guide. Quality teams should keep first article inspection reports templates ready to capture edge photos and gauge results on the same FAI package as critical dimensions.
