Face milling and peripheral milling are not interchangeable notes
CNC buyers often mark a plate “mill flat” and expect a single Ra and a single flatness callout to cover every face. Shops then choose between facing the surface with the end of an end mill or face mill (face milling) and sweeping the side of a cutter along a wall or step (peripheral / side milling). Those strategies leave different tool marks, different heat paths and different risks for step-height error. Understanding the difference helps you write RFQs that match how flatness, parallelism and step heights are actually produced—not how a shaded CAD face looks.
This process-knowledge guide compares face milling vs peripheral milling for CNC plates, covers, manifolds and fixture bases. It stays with typical industry practice: no invented machine brands, cycle times or guaranteed flatness numbers. Pair it with flatness, parallelism and perpendicularity for machined parts, surface roughness Ra for machined parts, and CNC pockets, thin walls and undercuts when walls and floors interact.
What each strategy is doing
Face milling
The cutter axis is roughly perpendicular to the surface being generated. A face mill, shell mill or the tip of an end mill generates the plane. Typical traits:
- Large area coverage per pass on open faces
- Cutter diameter and insert/edge geometry dominate scallop and marks
- Flatness is influenced by spindle tram, fixture flatness, cutter height variation and thermal growth
- Step-overs create a visible pattern unless finished with a light skim
Peripheral (side) milling
The cutter axis is roughly parallel to the wall being generated; the periphery of an end mill or the side of a cutter cuts the surface. Typical traits:
- Used for walls, pockets sides, bosses and many step shoulders
- Deflection of a slender end mill can taper walls and shift step height at the floor blend
- Depth of cut and radial engagement drive chatter risk on tall thin walls
- Corner radii at floor/wall intersections come from tool corner geometry unless a separate floor pass is used
Many real parts mix both: face the top, peripheral-mill the pocket walls, then face or floor-mill the pocket bottom. The RFQ should not pretend one note covers all three.
When buyers care: flatness, steps and cosmetic faces
Open plate flatness
Large plates often need a face-mill strategy on the primary datum face, sometimes with stress-relief and a second skim after roughing. Calling only “flat to 0.05” without which face, relative to which datum and over what span forces guesswork. State the functional span (for example across mounting feet) if full-face flatness is not required.
Step heights between faces
A step between two parallel faces can be produced by:
- Facing both levels with known Z offsets (face strategy)
- Facing one level and peripheral-milling down to a shoulder (mixed)
- Peripheral-milling a wall that defines the step height indirectly
Mixed strategies are where scrap appears: the shoulder from a side mill does not land at the same Z as a faced land if tool length, deflection or wear differs. Dimension the step explicitly and say whether the shoulder is a sealing land, a cosmetic break or a clearance only.
Walls that must be square to a face

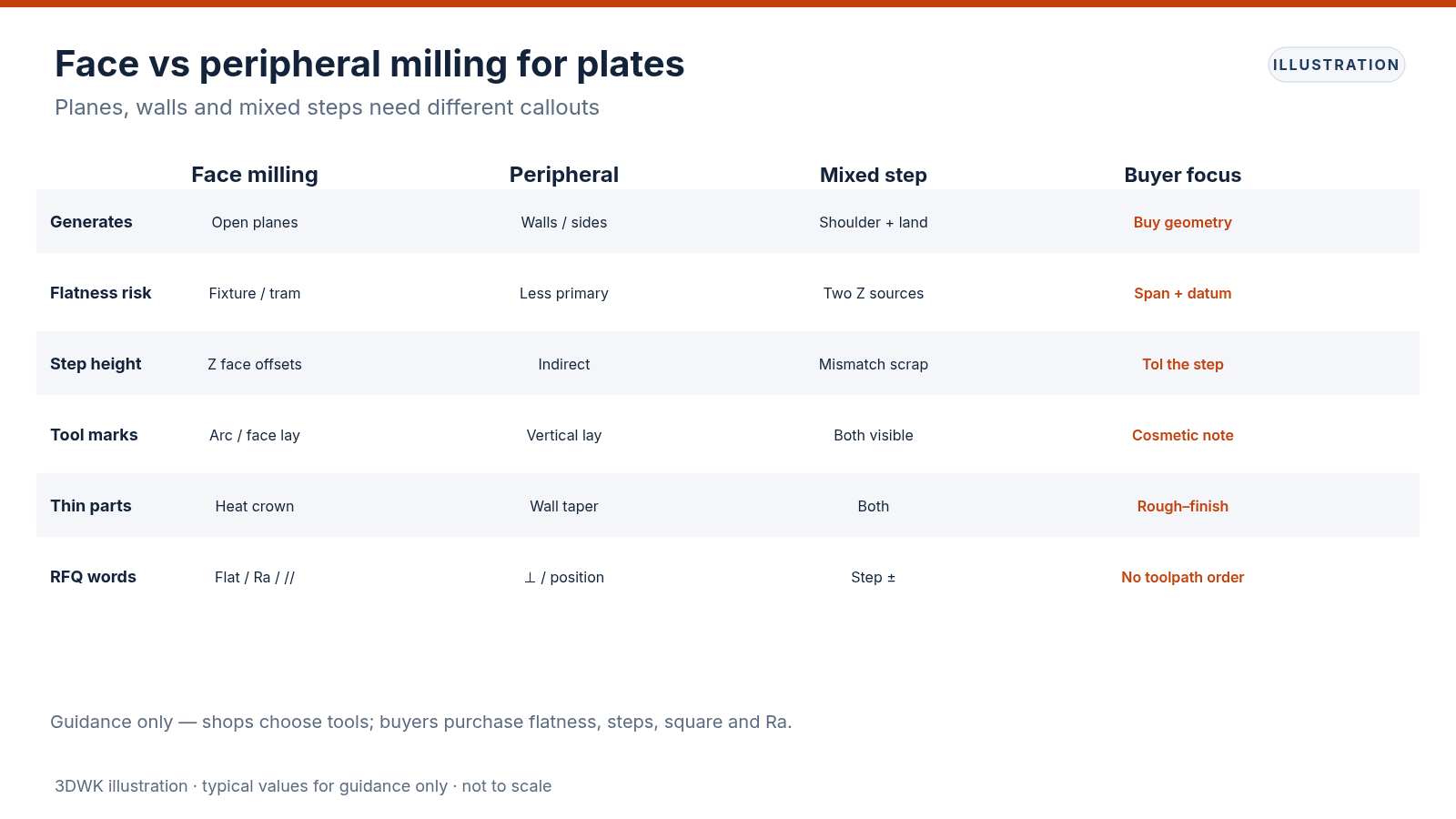

Perpendicularity between a faced top and a peripheral-milled wall depends on both setups. Five-axis or multi-side work adds more. See five-axis aluminum housing design tips when ports and walls wrap the part. Illustration 1 summarizes strategy vs buyer concern in matrix form.
Drawing callouts that match the process
Prefer measurable geometry over process words
Write flatness, parallelism, perpendicularity, step height and Ra. Avoid “face mill this surface” or “side mill only” unless a process is truly mandated (rare for commercial CNC). Shops pick tools; buyers buy geometry. Useful patterns:
- Flatness of datum A within … over the marked region
- Parallelism of face B to A within …
- Step 3.00 ±0.02 between faces B and C
- Wall perpendicular to A within … (or position of the wall)
- Ra on cosmetic face vs Ra on sealing land (often different)
Stock and opposite-face notes
Plate work often machines both faces. State:
- Which face is primary datum
- Whether opposite-face thickness is a size tolerance, a parallelism callout or both
- If cast or sawn stock must clean up fully on both sides
Leaving “machine all over” without cleanup stock notes invites thin spots on warped plate.
Process implications estimators watch
Fixture and tram
Face milling copies fixture error into the part. Soft jaws, vacuum fixtures and parallels all matter. Buyers do not design the fixture, but indicating a sealing face vs a paint face helps shops prioritize.
Cutter engagement and heat
Wide face-mill passes put heat into the skin of aluminum plates and can crown thin parts. Tall peripheral cuts heat local walls. Thin-wall notes and max wall height help—see CNC pockets, thin walls and undercuts.
Tool marks and downstream finish
Face-mill lay is usually circular or overlapping arcs; peripheral lay is vertical or helical along the wall. Bead blast, anodize and paint hide some patterns and highlight others. If a face is cosmetic after Type II anodize, say so—see anodizing Type II vs Type III and bead blast vs tumble vs vibratory finish.
Stepped pockets
Floor flatness inside a pocket is often a short face or floor-mill pass; walls are peripheral. Call floor flatness separately from top-face flatness. O-ring grooves on floors need their own depth control—see O-ring groove design for CNC housings.
Material notes
Aluminum plate (6061, 7075)
Faces cleanly; residual stress in plate can move flatness after heavy face milling. Rough–finish sequences are common. Alloy choice still matters for strength—see 6061 vs 7075 aluminum for machined parts—but flatness process dominates the quote conversation.
Steel and stainless
Harder on cutters; peripheral milling of deep walls may need more passes. Stainless work-hardening on rubbed walls shows up when radial engagement is too light—shops manage feeds; buyers should still avoid ultra-deep skinny slots without width notes.
Plastics
Face milling large POM or nylon plates needs attention to heat and clamping marks. Do not copy metal flatness bands into plastic without checking creep and temperature.
Inspection language for faced vs sided features
- Face flatness: surface plate + indicator, CMM plane, or optical flat methods depending on size and tolerance
- Step height: height gauge, CMM, or depth mic from a common datum
- Wall square: cylinder square, CMM, or optical for large fabrications
- Ra: profilometer on the correct lay direction—face-mill and peripheral lays need consistent stroke direction notes
First article inspection reports should list which faces were verified how. Pair with CMM vs optical measurement for machined parts when choosing a method family on the RFQ, and first article inspection reports for package structure.
Decision aid for RFQ writers
Ask, in order:
1. Is the critical geometry an open plane, a wall, or a step between planes?
2. Open plane → expect face-oriented finishing; call flatness/parallelism/Ra on that plane.
3. Wall → expect peripheral finishing; call perpendicularity/position and wall thickness.
4. Step → dimension the step; state which faces share a datum; avoid “mill shoulder” without toleranced height.
5. Cosmetic after coat? → separate Ra and note finish sequence.

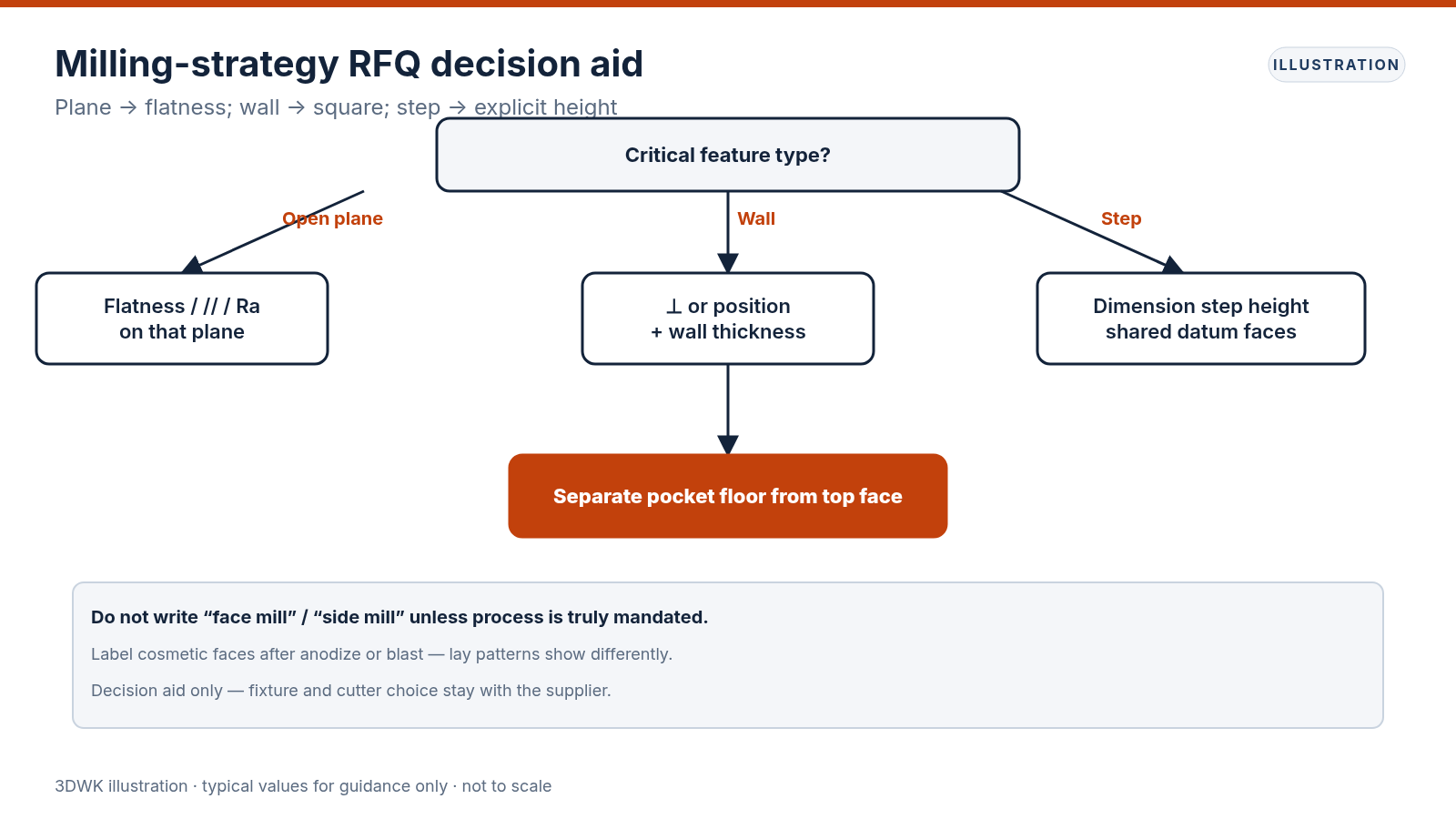

Illustration 2 walks that decision path.
RFQ checklist
1. Primary datum face identified; flatness span stated if not full face.
2. Step heights between functional faces have bilateral or limit tolerances.
3. Walls that seal or locate have perpendicularity or position—not only a 3D color.
4. Pocket floors separated from top-face flatness notes.
5. Cosmetic vs sealing faces labeled for finish and tool-mark expectations.
6. Thin walls and max depths called out where deflection risk is obvious.
7. Material and plate thickness / stock condition listed.
8. Link CNC machining service and request a quote when files are ready.
Varied failure modes tied to strategy mix
| Symptom | Often related to | Drawing fix |
|---|---|---|
| Crown on thin plate | Heavy face roughing / heat | Rough–finish note; allow spar |
| Tapered pocket wall | End-mill deflection | Wall tol + max depth; thicker cutter allowance |
| Step mismatch at shoulder | Mixed face vs side Z | Explicit step dimension |
| Visible lay after anodize | Face-mill pattern on cosmetic | Cosmetic face note + Ra |
| Floor not flat to top | Separate setups unlinked | Parallelism floor to datum |
How plate RFQs differ from housing RFQs
Simple plates are mostly face + drill/tap patterns. Housings add peripheral walls, bosses and five-axis ports. Do not paste a plate flatness note onto every housing face; prioritize the sealing and mounting faces. Laser cutting vs waterjet for metal parts and sheet metal enclosure design guide cover alternate blank processes when CNC facing of plate is only one option in a make/buy mix.
Wire EDM for precision parts is a different path for hardened openings; it is not a substitute for face-milling a large aluminum plate datum.
Summary
Face milling generates planes with the cutter end; peripheral milling generates walls with the cutter side. Buyers should purchase flatness, steps, square and Ra—not toolpath adjectives—while understanding how mixed strategies create step-height and taper risks. Clear datums, explicit steps and separated floor/top notes produce cleaner CNC plate and cover quotes.
