Flatness, parallelism and perpendicularity on machined plates and housings

Flatness, parallelism and perpendicularity on machined plates and housings

Machined plates, lids and housings often fail at assembly not because a hole diameter is wrong, but because a face is out of flat, two faces are not parallel, or a wall is not square to a datum. Flatness, parallelism and perpendicularity are the orientation and form controls buyers reach for—yet blanket callouts on every face inflate cost without improving function. This guide explains when those callouts matter, how shops typically check them, and RFQ mistakes that slow quoting.

It sits beside GD&T basics for buyers and surface roughness Ra guidance: use form and orientation controls where the joint, seal or bearing needs them, not as decoration.

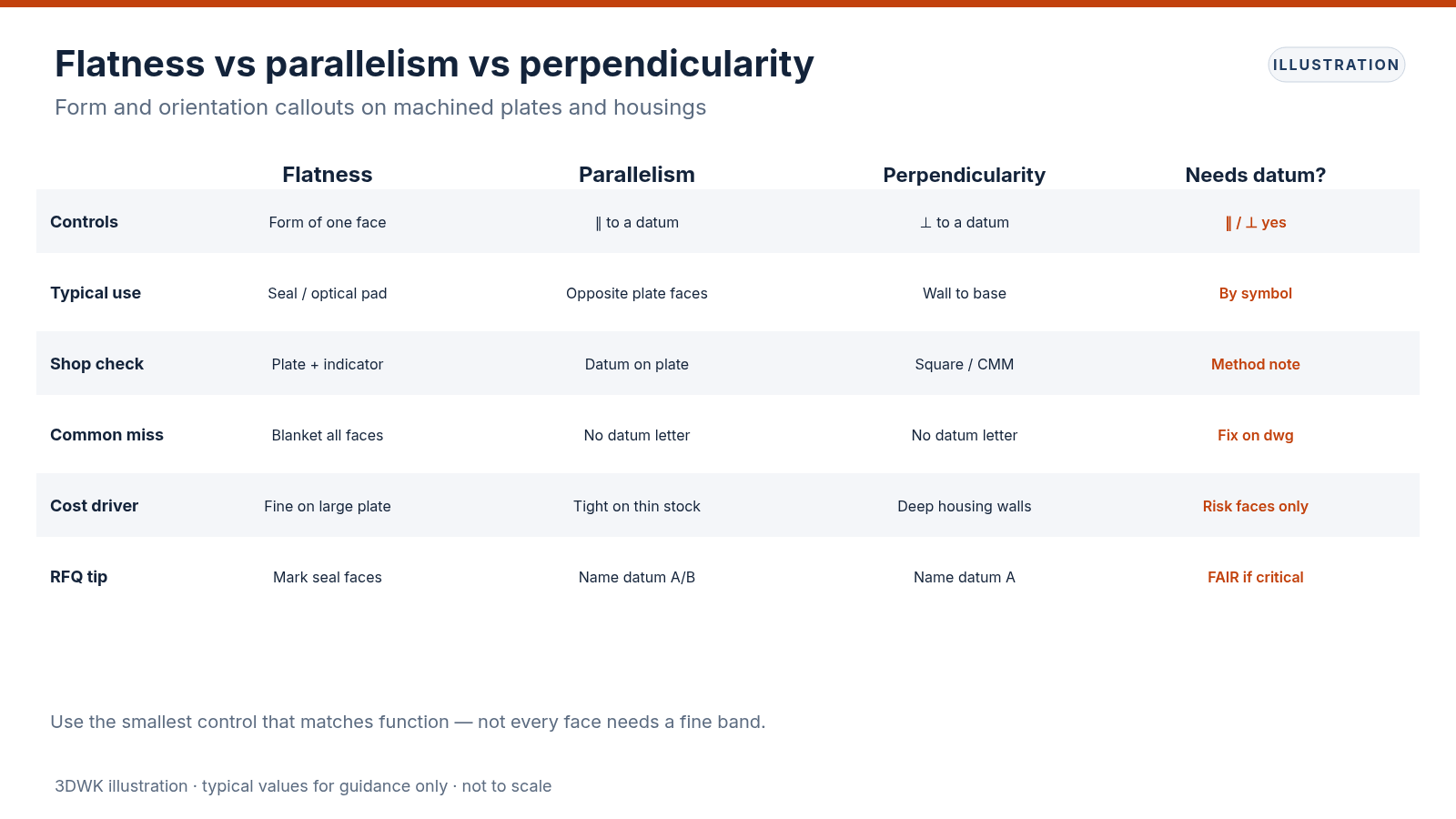

What each control means in plain language

• Straightness: for lines and axes, not entire faces
• Angularity: for non-90° relationships
• Surface profile: when the whole contour matters, not only a plane
• Runout: for rotating parts about an axis

Pick the smallest control that matches function. Profile of a surface can replace several orientation callouts on complex housings—but only when your team reads profile fluently.

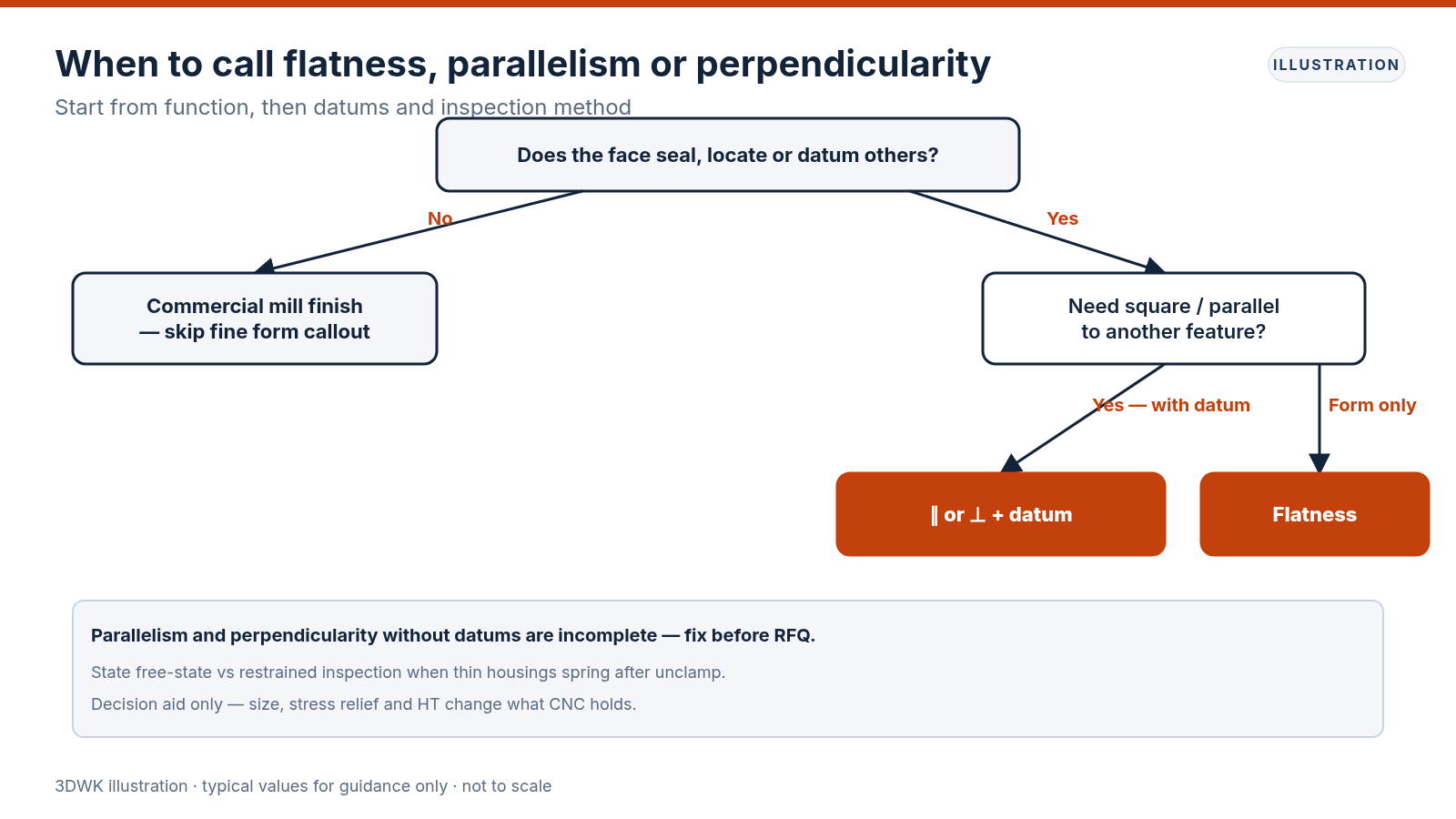

When these callouts actually matter

• Gaskets, O-rings or metal-to-metal seals need a continuous contact plane
• A precision stage, sensor or optic mounts on the face
• The face is a shop or customer datum for further machining
• Vacuum or pressure leak risk is real

• Opposite faces must stay coplanar in orientation for stacks or spacers
• A moving carriage references both sides of a plate
• Thickness tolerance alone does not capture the orientation you need (clarify with your GD&T reviewer)

• Walls or panels must meet at a true right angle for fit of covers and cards
• A bore must stay square to a mounting face for shaft alignment
• Assembly relies on “bolt-up square” without shims

• Faces are non-functional interiors after painting
• Cast or fabricated parts will be shimmed at install by design
• The tolerance is tighter than the process can hold without grind/lap—and function does not need it

How shops typically verify these controls

Methods vary with tolerance band and part size. Typical practice:

• Precision surface plate plus dial indicator or height gauge sweep
• Feeler checks under a known straightedge for coarse bands
• CMM plane measurement for documented reports
• Optical flats or interferometry only for very fine bands (unusual for general CNC plates)

• Indicator sweep of the feature while the datum sits on a plate or is fixtured
• CMM pairwise plane evaluation
• Micrometer grid maps thickness as a proxy check when appropriate—but confirm it matches the drawing control

• Cylindrical square, precision square and indicator
• CMM evaluation of plane or axis to datum
• Machining “witness” passes are not inspection—do not accept milling marks as proof of GD&T

State on the RFQ whether you need a written report, sample CMM print or only in-process checks. First-article expectations are covered in first article inspection reports.

Datums: the part of the callout people forget

Flatness can stand alone. Parallelism and perpendicularity cannot. If the drawing shows ⊥ or ∥ without a clear datum letter tied to a real surface or feature of size, the shop must guess. Good practice:

• Choose stable, accessible datum faces that match assembly
• Avoid datums on fragile thin walls when a thicker base exists
• Keep datum precedence consistent across views
• Do not change datums between detail views without a reason

Housing tip: if the mounting face is datum A and a side wall must be square for a connector, call perpendicularity of that wall to A—not to an undefined “world square.”

Tolerance bands and process reality (guidance only)

Exact capability depends on machine, fixturing, material and size. Qualitative buyer guidance:

• As-milled flatness on small stiff plates can be quite good; large thin plates move with stress and temperature
• Aluminum often moves after heavy pocketing; stress relief or a finish skim after roughing helps
• Steel plates after quench and temper may need grind to hit fine flatness—tie HT sequence to the callout (see heat treating steel after CNC)
• Stacking ultra-tight flatness + fine Ra + Type III anodize without process notes invites clarification

If a seal needs fine flatness, say so on that face only. Blanket 0.01 mm flatness on every face of a large housing is a common cost driver.

RFQ package: what to send

• PDF drawing with GD&T symbols readable at print scale
• CAD model that matches the drawing (state which wins if they conflict)
• Material and temper; HT and coating sequence
• Which faces are sealing / optical / datum
• Inspection requirement: FAIR, CMM, or shop standard
• Assembly photo or mate-part note when “square enough to close the lid” is the real requirement

Plates versus housings: slightly different failure modes

On a simple plate, flatness of the top and parallelism to the bottom dominate stack-ups. On a housing, perpendicularity of walls to the base and parallelism of opposite connector faces often matter more than absolute flatness of every pocket floor. Ask which faces mate, seal or locate before cloning plate callouts onto a deep pocketed box.

Thin-wall housings also change shape when clamps are released; a face that was flat in the vise can spring. Notes such as “inspect free state” versus “inspect restrained as assembled” belong on the drawing when the difference is contractual. If you only care about the bolted assembly, say so—shops can fixture accordingly instead of chasing free-state perfection that assembly will pull flat.

Common RFQ mistakes

• Parallelism or perpendicularity without datums
• Flatness on a face that will be heavily coated without saying before/after coat
• Copy-pasting the same fine orientation tolerance onto every view
• Specifying CMM-only tolerances on huge fabrications where plate and indicator methods are the shop norm—without discussing method
• Conflicting thickness tolerance and parallelism that fight each other
• Calling perpendicularity to a centerline that is not defined as a datum axis
• Ignoring that removing stock from one side of a plate after surveying flatness can spring the part

Design levers that help shops hold orientation

• Leave finish stock on datum and seal faces for a final skim
• Symmetrical pocketing to balance stress
• Temporary webs on open frames, removed late
• Realistic stock sizes so warping from sawed plate is skimmed out
• Avoid mixing “make from plate” with “all six faces ultra-flat” unless the budget includes precision plate or grind

Cost drivers (no fixed prices)

Orientation controls add fixturing care, inspection time and sometimes secondary grind or lap. Coarse functional callouts on the few faces that matter usually beat blanket fine callouts. When quotes diverge widely, ask each bidder which faces they assumed were critical—you may find they interpreted the drawing differently.

Buyer checklist

• Mark seal, datum and optical faces clearly
• Use flatness for form; parallelism / perpendicularity only with datums
• Match tolerance tightness to function and process
• State inspection method expectations for first article
• Align HT and coating sequence with when the face must be true

For machined plates and housings, clear orientation callouts plus a complete RFQ produce faster, more comparable CNC quotes. Use the CNC machining service page and the quote form when you are ready to release drawings.
