GD&T basics for buyers: reading feature control frames and datums

Why buyers should read GD&T

Geometric dimensioning and tolerancing, usually shortened to GD&T, is the symbolic language engineers use to say how much a feature's shape, orientation and location may vary. Buyers do not need to design with it, but understanding the basics helps when reviewing quotes, discussing inspection reports and spotting drawings that will be expensive to make. This article explains the core ideas in plain terms. It follows the concepts used in ASME Y14.5 and the closely related ISO GPS standards.

Plus-minus tolerancing and its limits

Traditional drawings place a dimension with a plus-minus tolerance, such as 40.00 ±0.10, on a hole location. That approach is simple but leaves gaps. It defines a square tolerance zone for a round hole, does not say which surfaces to measure from, and says little about form or orientation. Two inspectors can measure the same part differently and both be "right".

GD&T fills these gaps by defining reference surfaces, called datums, and tolerance zones whose shape matches the function.

Reading a feature control frame

GD&T requirements sit in a rectangular box called a feature control frame. Read it from left to right.

A frame reading "position, Ø0.10, A, B, C" means the hole axis must lie within a cylinder 0.10 in diameter, located at the exact theoretical position measured from datums A, B and C.

Datums: the measurement starting point

Datums are features chosen to represent how the part is located in its assembly. The primary datum, often a large flat face, removes the most freedom. The secondary and tertiary datums finish locating the part. On inspection, the part is set up against these datums, and everything else is measured from them.

For buyers, the key point is that datums should reflect real function. A drawing that uses a cosmetic edge as a datum for precision holes may produce parts that pass inspection but do not fit.

Basic dimensions

Dimensions shown in a box are called basic dimensions. They have no tolerance of their own; they describe the perfect theoretical location or shape, and the feature control frame says how much variation is allowed. A quote reviewer seeing many basic dimensions knows the feature locations are controlled by GD&T rather than by plus-minus tolerances.

The main symbol families

Why position tolerance is often better

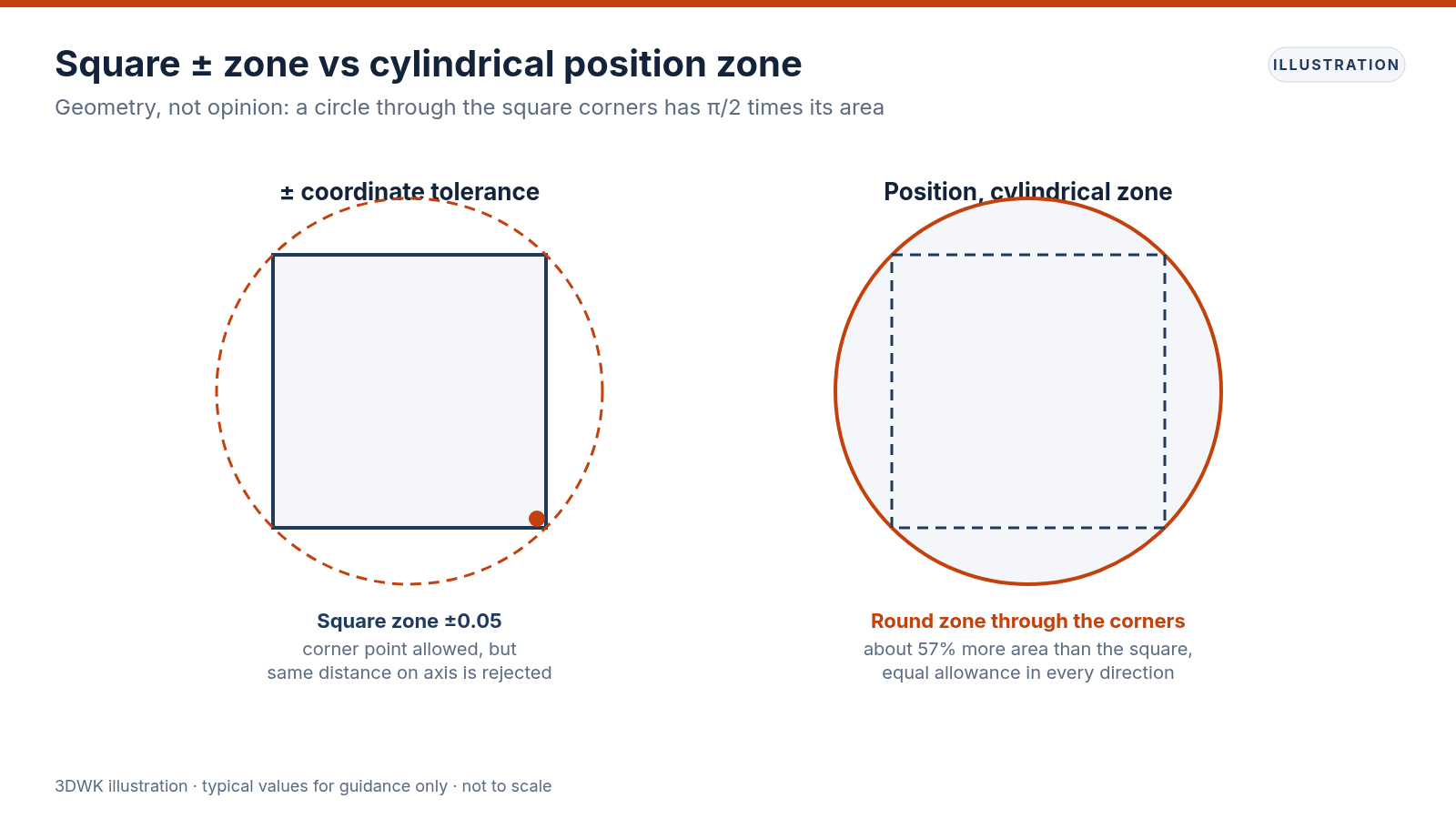

A round hole with plus-minus coordinates has a square zone. The corners of that square allow more error diagonally than straight along an axis, which makes no sense for a round bolt. Position tolerance uses a circular zone, which matches function and gives about 57% more usable area than the square that fits inside it. Parts that would fail a square zone near its edges may still fit perfectly, and position recognizes that.

Material condition modifiers

The circled M, maximum material condition, adds tolerance when the feature departs from its tightest size. For a hole, maximum material condition is the smallest allowed diameter. If the hole is made larger, the bolt has more room, so the position tolerance may grow by the same amount. This bonus tolerance reduces scrap without hurting assembly.

The circled L, least material condition, works the other way and is used where minimum wall thickness matters. With no modifier, the tolerance applies regardless of feature size.

Modifiers make inspection with functional gauges straightforward, which is helpful for high-volume parts.

What drives cost on a GD&T drawing

• Very small tolerance values, especially on position, flatness or runout
• Tight controls applied to every feature by default rather than only where function needs them
• Datums that are hard to fixture or are small, curved or rough
• Profile of a surface on complex shapes, which needs scanning or CMM inspection
• Requirements for full CMM reports on every part

A buyer can often reduce cost by asking whether tight callouts are functionally required on all features, or whether a general tolerance block covers most of the part.

Common drawing issues to raise early

• Datum features that are not defined or are referenced but not labeled
• Basic dimensions missing, so a position callout has no defined true position
• Conflicting plus-minus and GD&T controls on the same feature
• Tolerances tighter than the process normally holds without special effort
• Standards not named, so it is unclear whether ASME or ISO rules apply

Raising these questions during quoting is far cheaper than discovering them at inspection.

How inspection relates to the frame

Inspection of GD&T usually uses a coordinate measuring machine, which probes points on the datums, establishes the datum reference frame and then evaluates each feature. For simpler cases, height gauges, indicators, surface plates and functional gauges are used. Inspection reports list each callout, its tolerance and the measured result, often with bonus tolerance calculated where modifiers apply.

When you request an inspection report, specify which features must be reported and on how many parts. A full report on every part is expensive; key characteristics on a sample are often enough.

ASME and ISO: same idea, different rules

ASME Y14.5 and the ISO GPS standards use many of the same symbols, but some default rules differ. One important example is the relationship between size and form. Under ASME, a feature of size by default may not exceed its perfect form at maximum material, often called Rule 1 or the envelope principle. Under ISO, size and form are independent by default unless the envelope requirement is called out. A drawing should state which system applies, usually in the title block or general notes, so the supplier and the inspector interpret it the same way.

Editions matter too. Rules and symbols have changed between editions, so a note such as "Interpret per ASME Y14.5-2018" removes doubt.

A worked reading example

Imagine a plate with four mounting holes. Datum A is the bottom face, datum B a long side and datum C a short side. The holes have basic dimensions from B and C and a frame reading position, Ø0.20 at MMC, A, B, C. In plain words: stand the plate on its bottom face, push it against the long side and then the short side, and each hole axis must fall within a 0.20 diameter cylinder around its exact location. If a hole is made larger than its smallest allowed size, the cylinder may grow by the same amount.

A short glossary

Practical takeaways for buyers

Ask which standard and edition the drawing follows. Check that datums make functional sense. Question tight callouts that seem to apply everywhere. Agree on the inspection method and report scope before production. These steps help ensure the parts you receive are both acceptable on paper and functional in the assembly.
