Heat treating steel after CNC: what buyers should specify
Carbon and alloy steels are often CNC machined in a soft or pre-heat-treated condition, then hardened, tempered, normalized or stress-relieved to meet strength, wear or stability needs. If the drawing only says “HT” or “harden,” estimators cannot price distortion risk, grind stock or inspection. This guide explains common post-machining heat-treat paths for steel parts, what to put on drawings, and typical dimensional-change expectations—as guidance ranges only, not guarantees for every grade and section size.
It complements material pages such as steel 4140 and steel 1018, and process pages for CNC machining. Stainless precipitation-hardening grades (for example 17-4PH) follow different aging rules; see stainless 304 vs 316 vs 17-4PH when that family applies.
Why sequence matters: machine soft, then harden—or machine hard
Machining before quench and temper
Many alloy steel parts (4140, 4340, tool steels in some shops) are rough- and finish-machined in annealed or normalized condition, then quenched and tempered, then finish-ground on critical diameters and faces. Soft machining is faster and kinder to cutters; hardening afterward raises strength but can move dimensions.
Machining in the prehardened condition
Some billets arrive prehardened (for example 4140 around mid-HRC ranges marketed as “pre-hard”). You avoid quench distortion but accept slower machining and higher tool wear. Final stress relief may still be specified after heavy milling.
Hybrid approaches
Typical hybrid: rough machine with grind stock → heat treat → finish machine or grind critical features. State which features are “after HT” on the drawing so the shop does not finish them too early.

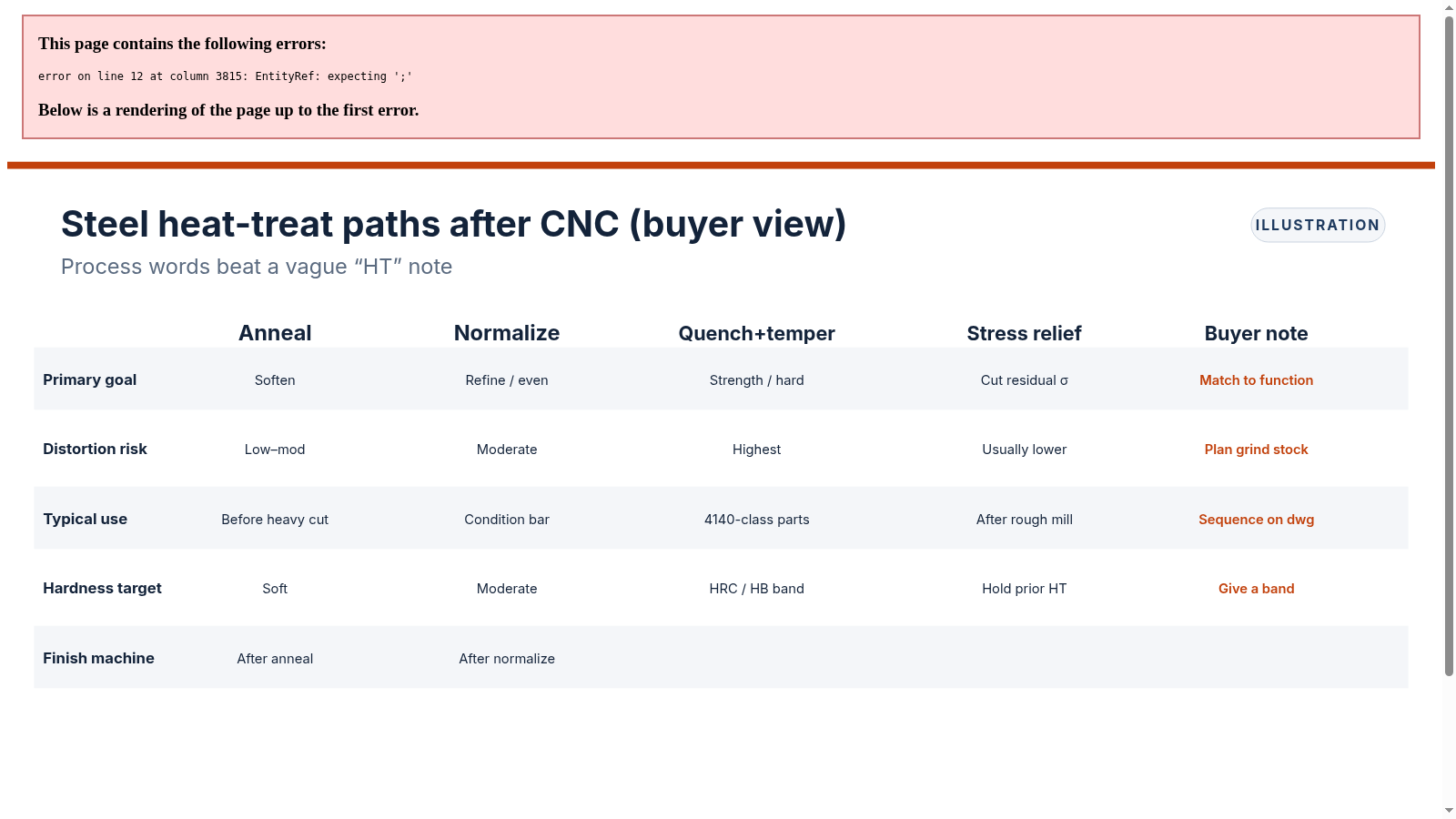

Common heat-treat verbs buyers actually need
Anneal
Softens steel, improves machinability, and can homogenize structure after prior work. Used when starting from a hard bar or when maximum softness is required before heavy cutting. Not a substitute for a strength specification if the end use needs hardness.
Normalize
Air cool from austenitizing temperature to refine grain and improve uniformity. Often used on carbon steels before finish machining or as a conditioning step. Dimensional movement is usually milder than liquid quench, but still real on thin sections.
Quench and temper (Q&T)
Austenitize, quench (oil, polymer, water—process-dependent), then temper to a target hardness or strength band. This is the workhorse for many 4140-class structural and wear parts. Distortion and residual stress risk are highest in this family—especially with uneven sections, thin webs and sharp corners.
Stress relief
Lower-temperature hold to reduce residual stress from machining or prior HT without fully re-hardening. Common after heavy pocketing or before final grind. Clarify temperature class if your industry uses a standard; otherwise state “stress relieve after rough machine” plus any hardness must-hold requirement.
Case harden / carburize / nitride (awareness)
Surface hardening processes change case depth and core properties. They need explicit case-depth callouts, mask notes and often grind stock. Do not bury “carburize” inside a vague “HT to HRC …” note without depth and surface hardness.
What to put on the drawing (minimum useful set)
Replace vague “heat treat” with:
- Process family: anneal / normalize / quench and temper / stress relieve / case harden (name the process)
- Target hardness or strength: for example HRC band, HB band, or tensile requirement—with units and test location if critical
- Applicable specification if your contract requires one (industry or customer spec)—without inventing certification claims
- Sequence: which operations occur before vs after HT (mill, drill, grind, hone, finish coat)
- Stock allowance: grind or finish-machine stock on diameters and faces that must be true after HT
- Straightness / flatness requirements after HT, if they matter (see also flatness and orientation callouts on plates)
- Test coupons: whether hardness is taken on the part, a prolongation, or a separate coupon
Example note style (illustrative wording only)
“4140 alloy steel. Rough machine. Quench and temper to HRC [band]. Stress relieve if required by process. Finish grind Ø … and face … after HT. Hardness on non-critical boss.” Exact bands belong to your engineering calculation—not to a copied marketing number.
Dimensional growth and movement (typical ranges only)
Heat treatment does not move every part the same way. Section thickness, quench media, racking, prior residual stress and geometry dominate. The following are qualitative expectations buyers use in planning—not contractual capability:
- Stress relief: often small movement relative to quench; still enough to matter on tight flatness or close-fitting bores if stock is zero
- Normalize: moderate movement possible on asymmetric parts
- Quench and temper: largest risk of out-of-round, banana bow, dish and size change—plan grind stock on fits
- Thin plates and open frames: watch flatness and twist
- Thick uniform chunks: more size change predictability, still not zero
Shops often leave grind stock on the order of a few tenths of a millimeter per side on critical diameters for Q&T alloy parts—confirm with your supplier for the size and grade. Do not publish a single universal “growth chart” as if it were a standard; ask for process capability on similar parts when the fit is safety-critical.
Hardness callouts that RFQs understand
Use a band, not a single magic number when possible
A range (for example a few HRC points wide) acknowledges temper variation and measurement uncertainty. A single value with no tolerance forces clarification.
Say where hardness is measured
Surface vs core, case vs substrate, and “not on cosmetic face” notes prevent rejected parts that meet function but fail a poorly placed indentation.
Match hardness to temper and grade
4140 Q&T bands differ from simple carbon steel. If you only know “make it hard,” expect the estimator to ask for HRC or for a functional wear / strength requirement.
Distortion control: design and process levers
Buyers can reduce surprise by:
- Balancing cross-sections; avoid huge mass next to thin webs when Q&T is required
- Adding ribs or temporary webs that are machined off after HT when the design allows
- Specifying fixturing or press quench only when the part family truly needs it (costly; use sparingly)
- Calling out “straighten after HT to …” only with a measurable tolerance and acceptance method
- Allowing stress relief between rough and finish operations on large aluminum-alternative steel weldments or heavily milled blocks
Wire EDM and finish grind after HT are common rescue paths for distortion—but they are not free. Mention allowed secondary processes on the RFQ if the geometry is risky.
Coatings and heat treat order
Black oxide, zinc plating, electroless nickel and paint stacks usually come after final heat treat and after critical grind—unless a specification says otherwise. High-strength electroplated steels may need hydrogen relief bake; that bake is not a substitute for the primary Q&T. State coating after HT explicitly. For coating comparisons on steel, see zinc plating vs electroless nickel vs black oxide.
Inspection after heat treat
Typical buyer expectations:
- Hardness report matching the drawing band and location
- Dimensional check of features marked “after HT”
- Flatness / straightness if called out
- Magnetic particle or other NDT only when specified—do not assume
First-article packages for hardened parts often include hardness plus key fits; see first article inspection reports for how FAIR-style packages are structured.
Common RFQ mistakes
- “Harden” with no HRC / HB / tensile target
- Finish-machining all fits before Q&T with zero grind stock
- Specifying case depth and core hardness without naming the case process
- Applying stainless 17-4 aging notes to 4140 Q&T (wrong metallurgy family)
- Demanding ultra-tight flatness after aggressive quench on a thin plate with no straighten allowance
- Omitting sequence for coating vs HT vs grind
Cost and lead-time drivers (no fixed prices)
Quotes move with furnace loting, quench risk, straighten/grind labor, hardness inspection density, and scrap contingency on fragile geometries. Soft-only machining is cheaper when hardness is unnecessary. When strength is required, clear notes beat vague “HT” every time.
Practical RFQ checklist
- Grade and condition at machining (annealed, normalized, pre-hard)
- HT process words and target hardness / strength band
- Before/after HT operation split and grind stock
- Distortion-critical tolerances called out measurably
- Coating sequence after final metallurgical condition
- Hardness test location
Submit drawings with those notes through the quote form so estimators can route heat-treat vendors without a clarification loop.
