Knurling on turned shafts: what buyers should specify
Knurling raises a patterned grip or press-fit surface on a CNC turned shaft, pin or knob. It looks simple on a rendering and becomes expensive or scrap-prone when the drawing only says “knurl” without pattern, pitch, diameter before/after and length. This process guide covers common straight and diamond knurls, typical pitch language, drawing notes and an RFQ checklist for shafts made on CNC lathes and Swiss-type machines. Figures and values are typical shop practice—not a substitute for your knurl tooling standard or press-fit engineering calculation.
For related shaft documentation, see the turned stainless shaft drawing guide, Swiss turning vs CNC lathe for small parts, and surface roughness Ra for machined parts. Deep features next to a knurl (grooves, undercuts, threads) change tooling order—call the sequence on the print.
What knurling does on a CNC part
Knurling displaces or cuts material to form ridges. Buyers use it for:
- Hand grip on adjustment knobs and thumbscrews
- Press-fit retention into plastic or soft metal hubs (knurl OD larger than the mating bore)
- Aesthetic bands that must match a product family
- Soft-jaw traction in secondary ops (less common on finished customer parts)
It is not a substitute for a defined spline, keyway or interference-fit calculation. When torque or press load is structural, engineering owns the knurl selection; manufacturing owns whether the pattern can be produced on the blank diameter you drew.
Straight vs diamond vs other patterns
Straight knurl
Parallel ridges along the axis (or sometimes circumferential, depending on tool presentation). Typical uses:
- Press fits into molded hubs where axial push-on is the assembly motion
- Applications where a diamond pattern would feel too aggressive on the hand
Straight knurls are often produced with a matching straight knurl wheel. Alignment and tracking matter on long bands.
Diamond knurl
Crossed ridges forming a diamond network—the pattern most people picture on a thumbscrew. Typical uses:
- Hand-tightened knobs
- General-purpose grip where no press-fit standard is driving the choice
Diamond patterns are commonly raised with a pair of wheels or a diamond knurl tool. Male vs female diamond conventions appear in older drawings; modern practice is to show a clear pictorial or cite a knurl standard and pitch.
Cut knurl vs form (displace) knurl

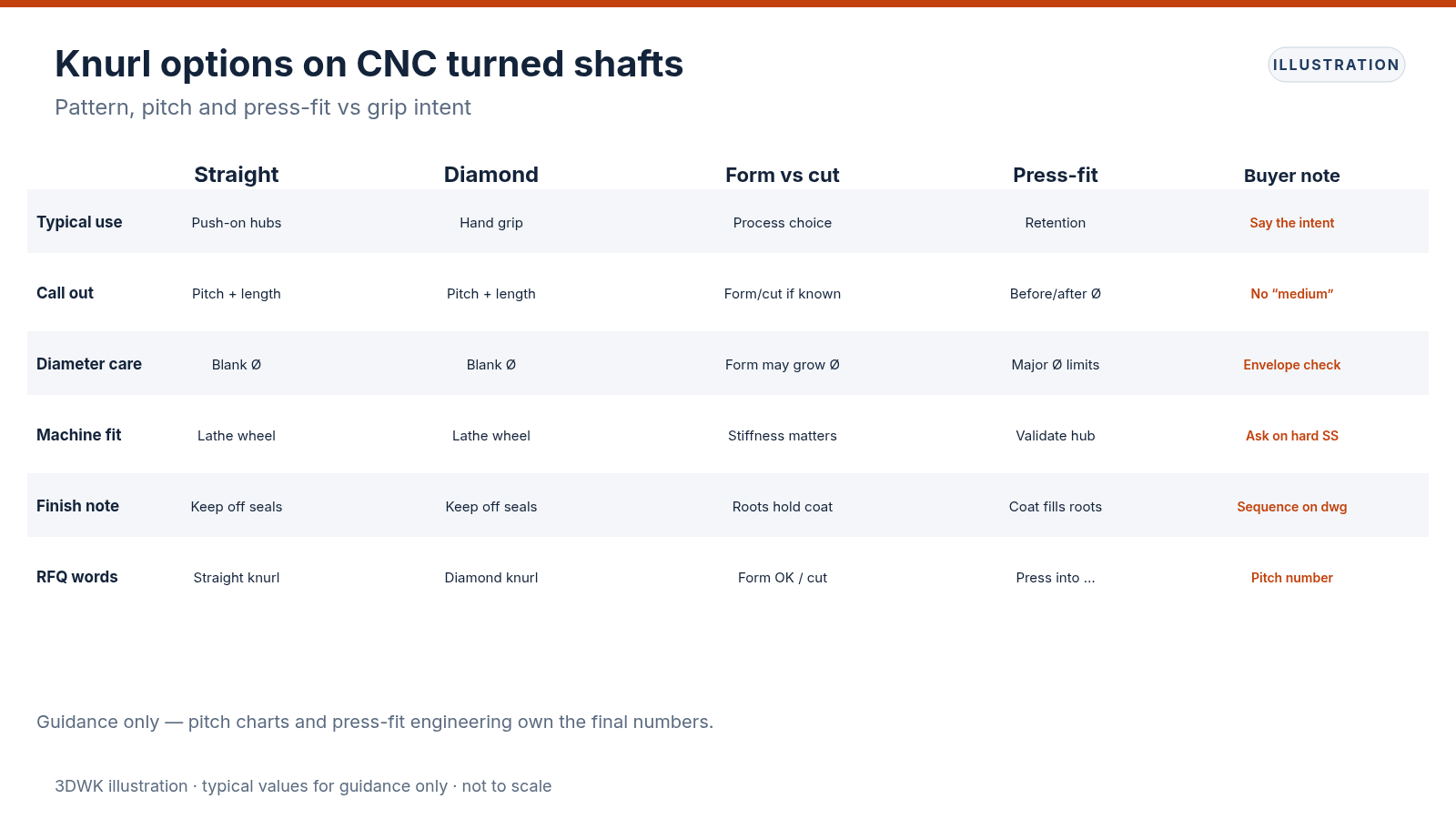

Some tooling cuts the pattern; classic knurling often displaces (forms) material and can grow the major diameter slightly. Buyers should state whether the finished major diameter after knurl is a hard limit. Form knurling on thin-wall tubes can bulge the bore—call max ID change if the tube is functional. Illustration 1 compares pattern types against typical buyer intent (grip, press-fit, cosmetic) so RFQ language stays unambiguous.
Pitch, TPI and diameter language
Shops need a pitch definition they can match to a wheel:
- Metric pitch (distance between teeth) or teeth per inch (TPI), depending on your standard
- Pattern: straight or diamond; raised or depressed if your standard distinguishes them
- Knurl length along the axis and start/stop distance from shoulders
- Blank diameter before knurl and maximum major diameter after knurl when the fit is critical
Vague notes such as “fine knurl” or “medium diamond” force a clarification call. Prefer “diamond knurl, 1.0 mm pitch × 12 long” or the equivalent citation to a published knurl chart you actually purchase to.
Before/after diameter
Form knurling can increase the crest diameter relative to the turned blank. For press fits, state:
- Turned blank Ø tolerance band
- Knurl major Ø after process (max / min) or “knurl to suit ØX press into Y material”
- Whether secondary turning of the crests is allowed (usually not, unless you say so)
For grip-only knurls with no press requirement, a pitch plus length plus “raise knurl on Ød” is often enough if cosmetic limits are loose.
Drawing notes that belong on the shaft print
Minimum callout set
1. Pattern (straight / diamond) and pitch or TPI 2. Axial location and length of the knurled band 3. Diameter reference (blank Ø and/or finished major Ø) 4. Any max runout or concentricity of the knurl band to bearing seats if the knurl is near precision diameters 5. Edge distance to adjacent grooves, threads or snap-ring lands
Notes to avoid
- “Knurl per vendor standard” with no pitch
- Applying a tight Ra callout across the knurl—Ra on a knurled surface is rarely meaningful the way it is on a bearing seat
- Dimensioning only the rendering appearance without a measurable pitch
Interaction with other shaft features
Keep knurls clear of:
- Bearing seats and seal diameters
- Thread runout zones
- Snap-ring grooves and undercuts that need sharp corners
- Laser marks or etched scales that must remain readable
If the knurl stops against a shoulder, show a small relief or state whether a crushed last tooth is acceptable.
Process options on CNC lathes
In-cycle knurling on the turning center
Many CNC lathes present a knurl tool in the turret and roll the pattern after turning the blank diameter. Pros: one setup, good concentricity to turned datums. Cons: stiffness and diameter limits; hard materials and large pitches need enough machine rigidity.
Secondary knurling
Blank is turned, then knurled on a dedicated fixture or bench machine. Used when the primary lathe cannot hold the tool or when knurl scrap risk should stay off a complex turned blank. Adds handling and possible runout stack—state which diameters are datums after knurl.
Swiss-type and small diameters
On small pins, knurl wheels must match the miniature pitch; deflection is higher. See Swiss turning vs CNC lathe for when slender parts belong on a sliding-headstock machine. Very fine pitches on tiny diameters may be impractical—ask before freezing the industrial design.
Material behavior
- Aluminum (6061 and similar): forms cleanly; watch galling on soft alloys with poor lubrication notes
- Brass / copper: classic knurl materials; see brass vs copper for machined parts for alloy context
- Stainless: work-hardening and higher forces; expect more careful blank sizing
- Steel: common; heat-treated blanks may need knurl before harden—state heat-treat sequence (see heat treating steel after CNC machining)
- Plastics: possible with cut knurls; form knurls can melt or smear—validate on the polymer you buy
Press-fit vs grip: design intent on the RFQ
State the function in one line on the RFQ or drawing note:
- “Hand grip only — no press requirement”
- “Press into acetal hub, target interference per eng. note Z”
Without intent, shops cannot judge whether a slightly undersized major diameter is scrap or acceptable. Engineering owns interference; manufacturing owns process capability for the pitch you named.
RFQ checklist
Use this list before releasing the packet:
1. Pattern named (straight or diamond) with pitch or TPI—not “medium knurl.”
2. Knurl length and position from a datum shoulder.
3. Blank Ø and finished major Ø limits when press-fit or envelope matters.
4. Material and heat-treat sequence relative to knurl.
5. Adjacent features (threads, grooves, bearings) with clear keep-out.
6. Cosmetic vs functional acceptance (crushed end teeth OK? partial band OK on start/stop?)
7. Qty and whether first-article must include a photo of the knurl band and a measured pitch check.
8. Secondary processes (passivation, plating, black oxide) and whether coating fills knurl roots—see zinc plating vs electroless nickel vs black oxide and passivation vs electropolishing for stainless finish context.

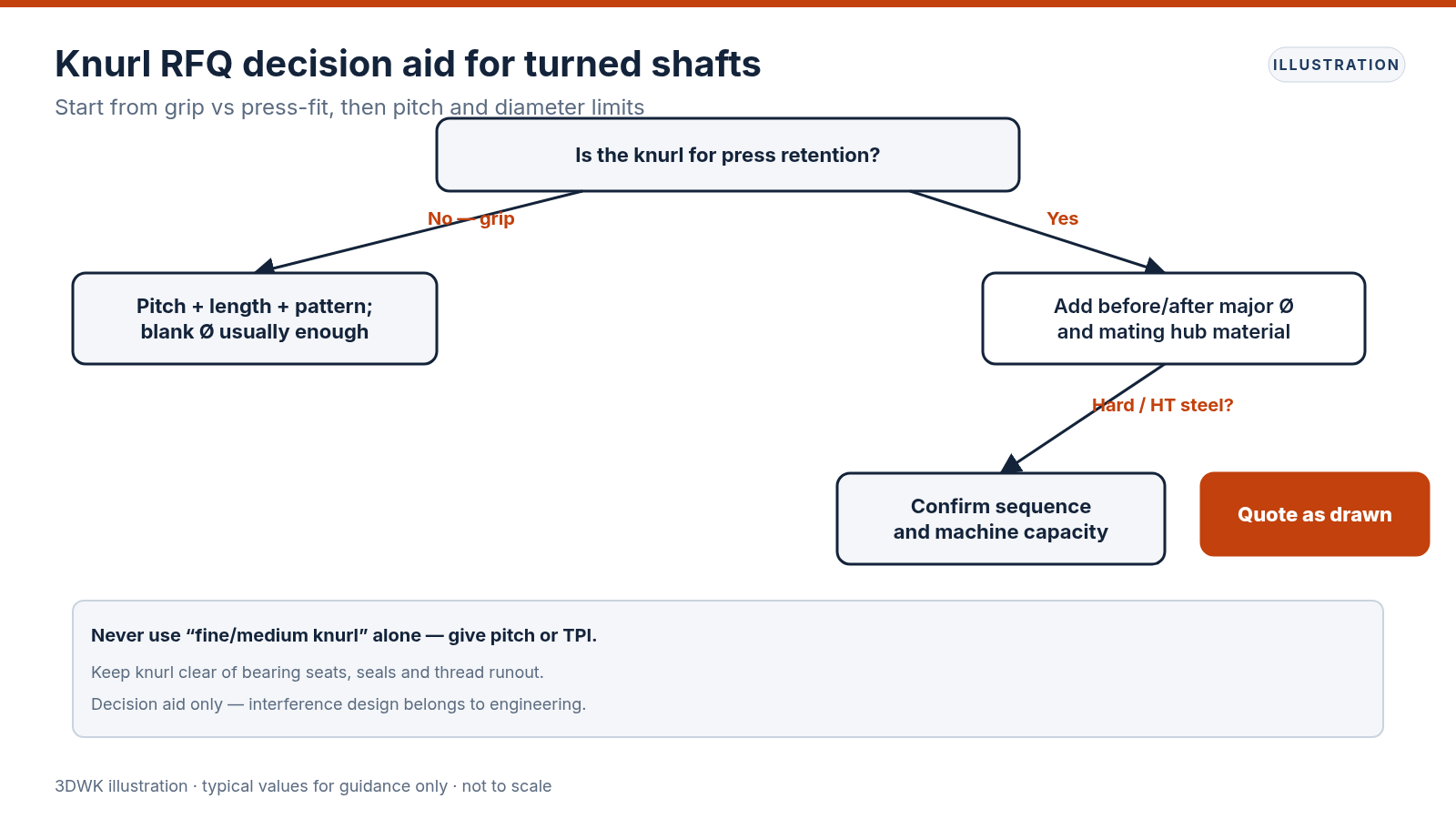

Illustration 2 is a decision flowchart: grip-only → pitch + length; press-fit → add before/after Ø; hard stainless or heat-treat → confirm sequence and machine capability.
Inspection notes
- Pitch verification with optical comparator, knurl gauge or calibrated photo scale on FAI
- Major diameter over crests with suitable micrometer technique (crests are not a smooth cylinder)
- Length of band and position from shoulder
- Visual for tracking errors, flaking or incomplete diamonds at start/stop
Do not call a mirror Ra on the knurl. Do call Ra on adjacent bearing seats that must remain untouched by knurl wheels.
Common pitfalls
- Copying a knurl from a photograph without a pitch number
- Specifying diamond knurl on a diameter too small for the chosen pitch
- Ignoring diameter growth on form knurls inside a hard envelope
- Plating after knurl without checking whether roots fill and grip changes
- Placing knurl over a previously heat-treated hard zone without process review
Quoting posture
Clear knurl callouts let the lathe estimator pick tools, blank allowances and risk contingency. Ambiguous “knurl to match sample” without a measurable sample delays the job. Include a sketch of band length relative to shoulders and name the mating hub material when the knurl is for press retention. Request a quote with the shaft drawing and knurl notes attached; for small complex pins, say whether Swiss capacity is required.
