Laser cutting vs waterjet cutting for metal parts: when to use which

The short answer

Laser cutting and waterjet cutting both produce flat metal parts from plate and sheet without hard tooling. Laser cutting is usually the faster, lower-cost choice for thin to medium-thickness mild steel, stainless and aluminum when the edges can tolerate a heat-affected zone. Waterjet cutting is the better choice when heat must be avoided, when thickness is high, when reflective or hard materials are involved, or when several dissimilar materials must be cut on the same machine. Many projects use both: waterjet for thick blanks and laser for thinner nested sheets.

This article compares how each process works, where each wins, and how to design parts so either process can quote cleanly.

How each process removes material

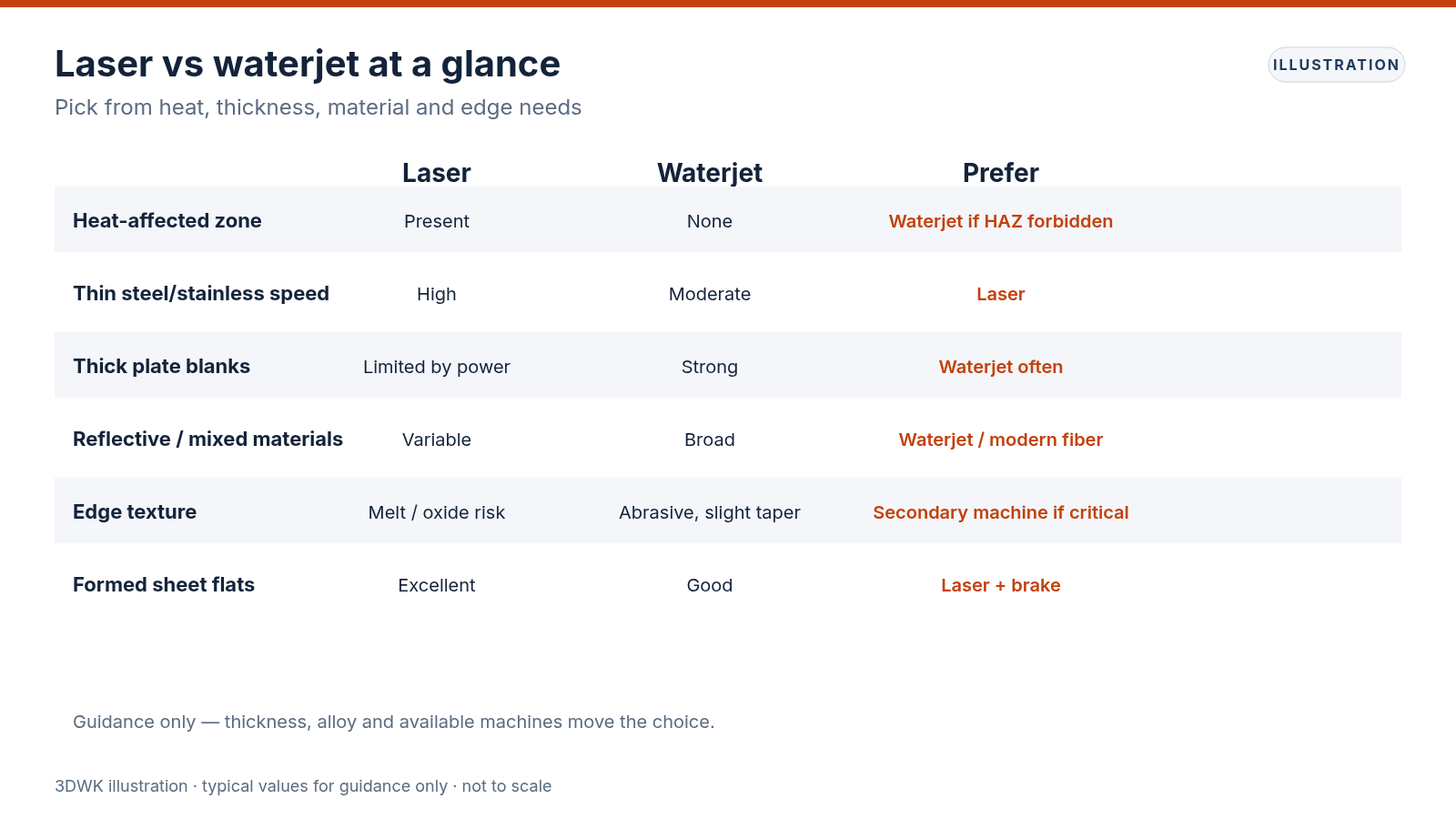

Head-to-head comparison

Neither process replaces CNC milling for tight 3D features, deep pockets or precision bores. Both excel at 2D profiles and holes that will later be finished or left as-cut.

When laser cutting is the practical choice

Choose laser cutting when:

• Thickness is in the range where laser speed is high (often a few millimetres up to roughly mid-teens of millimetres for common steels, depending on power)
• The material is mild steel, stainless or aluminum that the laser handles well
• Slight heat discoloration or a thin heat-affected zone is acceptable, or will be removed by later machining or finishing
• You need many parts nested tightly from sheet with short lead time
• Cosmetic edges after light deburring are enough for the job

Laser cutting is also a natural partner to press-brake forming: cut the flat pattern, then bend. Holes, slots and external profiles land in one nesting run.

When waterjet cutting is the practical choice

Choose waterjet cutting when:

• Heat would ruin the edge: hardened tool steel, heat-treated parts, titanium where oxidation or embrittlement near the edge is unwanted, or materials that delaminate or burn
• Thickness is beyond the economical laser range for that alloy
• Reflective or highly conductive metals are difficult for the available laser
• Soft materials, rubber, foam-backed composites or stone share the job with metals
• You need near-net blanks for thick plate that will be finish-machined, without a heat-affected zone to remove

Waterjet edges are not mirror-smooth; they carry an abrasive texture and a small taper. For many structural blanks that is fine. For sealing faces or bearing fits, plan a secondary machine operation.

Thickness, tolerance and edge quality

Both processes hold useful tolerances for fabricated parts, but neither matches a finish-machined bore. As a design habit:

• Call out critical holes and fits as "machine after cut" rather than expecting as-cut accuracy to match a reamed hole
• Allow for kerf in nested designs; the CAM system accounts for it, but thin webs between cuts need enough leftover metal
• Expect edge taper on waterjet, especially on thick plate; taper compensation and slower quality modes reduce it
• Expect a heat-affected fringe on laser cuts; on thin sheet it is small, on thicker plate it is more noticeable

If a drawing shows ±0.05 mm on a large plate profile, ask whether that is truly needed or whether a looser profile tolerance with machined datums would cost less.

Material notes that change the decision

Design rules that help either quote

• Provide a clean 2D profile (DXF or DWG) with a single closed outline per part and clearly marked holes
• Avoid features smaller than the practical kerf and nozzle or beam limits; very narrow slots may not cut cleanly
• Keep minimum web thickness between holes and edges generous enough for handling; thin tabs break in nesting or shipping
• Mark bend lines and grain direction notes separately from the cut profile when forming follows cutting
• State whether edges may remain as-cut or must be deburred, ground or machined
• Call out material grade, thickness and any special flatness or surface requirements on the drawing or RFQ notes

Internal sharp corners in the CAD file become rounded by the beam or jet diameter. If a sharp internal corner is functionally required, say so; it may need a later machining pass.

Combining both processes and machining

A common production path for thick, high-value parts is:

1. Waterjet or laser blank the near-net shape

2. CNC machine datums, bores, pockets and critical thicknesses

3. Finish and inspect

This route saves roughing time on the mill while protecting tight features. For thin sheet metal enclosures, laser flat patterns plus press-brake bends often finish the part without milling at all.

Cost and lead-time drivers (without fixed prices)

Cost drivers differ:

• Laser: machine time, nest utilization, assist gas, and secondary deburr
• Waterjet: machine time (often slower on thick stock), abrasive consumption, and nozzle wear

Lead time is usually short for both when material is in stock. Thick exotic plate, very large nests or tight edge-quality modes extend time. Asking for "laser or waterjet, shop choice" on non-critical blanks often yields the best schedule.

Common mistakes

• Specifying laser on thick heat-treated plate when a cold cut is required
• Expecting as-cut holes to hold bearing or sealing tolerances
• Designing knife-edge webs that break during nesting
• Ignoring taper on thick waterjet parts that must stack or seal
• Omitting material temper or coating notes that change process choice
• Sending 3D models without a clear flat pattern when only 2D cutting is needed

A one-line process note on the drawing—"Laser cut OK" or "Waterjet only — no HAZ"—prevents wrong assumptions at quote time.

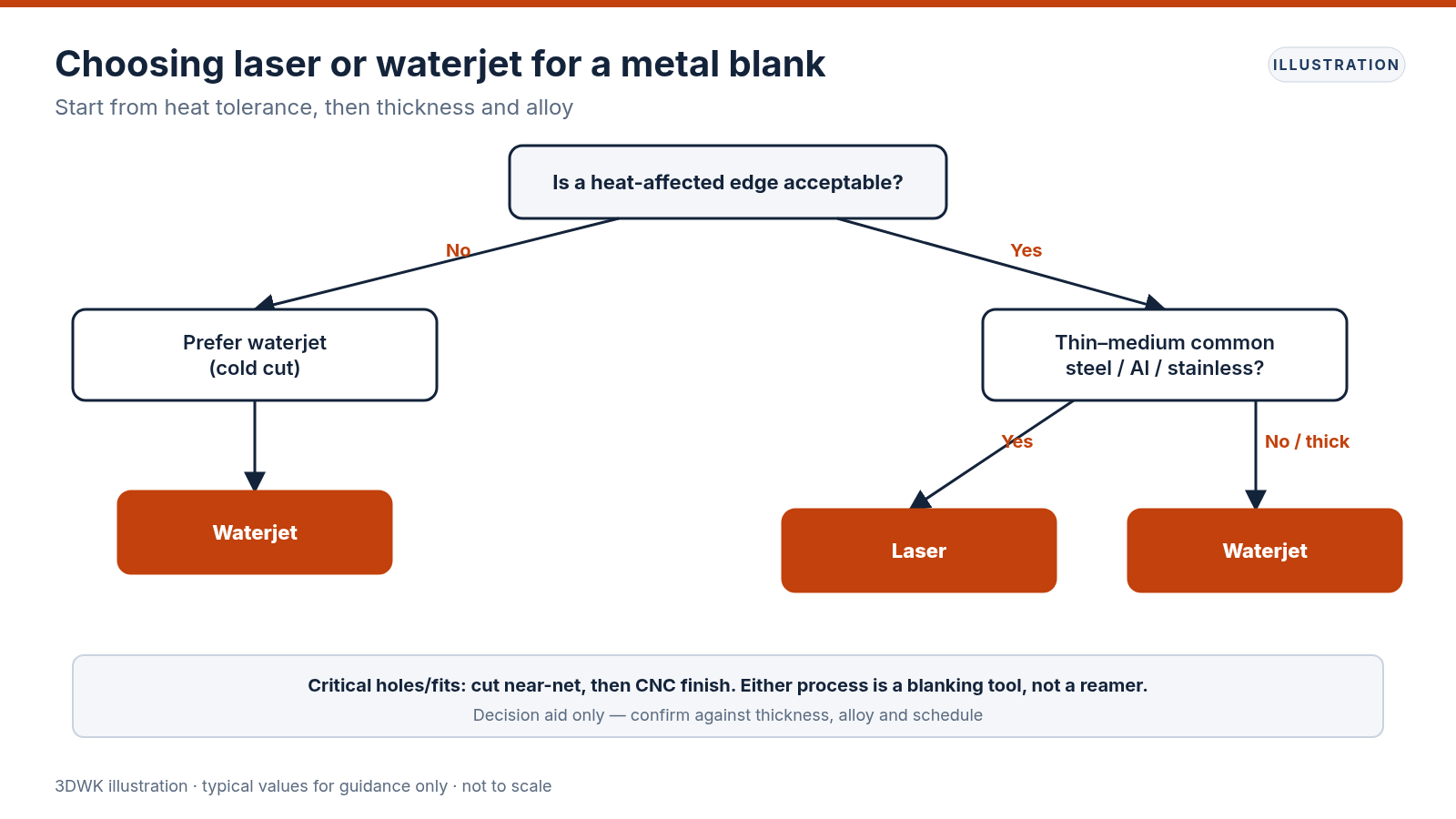

Choosing in one minute

If you are unsure, upload the flat pattern and state thickness, alloy and whether heat at the edge is acceptable. The reviewing engineer can recommend laser, waterjet or a blank-plus-machine route and flag features that need secondary operations.
