O-ring groove design for CNC housings and plates

Why O-ring groove design belongs on the CNC drawing early

CNC housings and plates often seal with elastomeric O-rings in face grooves (axial squeeze) or in radial glands (piston / rod style). Buyers who leave groove size, finish and corner radii as afterthoughts get clarifying questions, scrap risk and seal leaks that are hard to blame on the elastomer alone. This guide covers typical AS568-style practice for machined aluminum and steel parts—groove proportions, squeeze, finish and drawing notes—without inventing seal pressure ratings or proprietary compound claims.

Treat dash sizes and percentage squeeze ranges below as common industry guidance for static face seals and many radial glands. Your OEM standard, fluid, temperature and dynamic duty can override any rule of thumb. For related housing geometry, see our five-axis aluminum housing tips and CNC pockets / thin walls guidance; for finish context, see surface roughness Ra for machined parts.

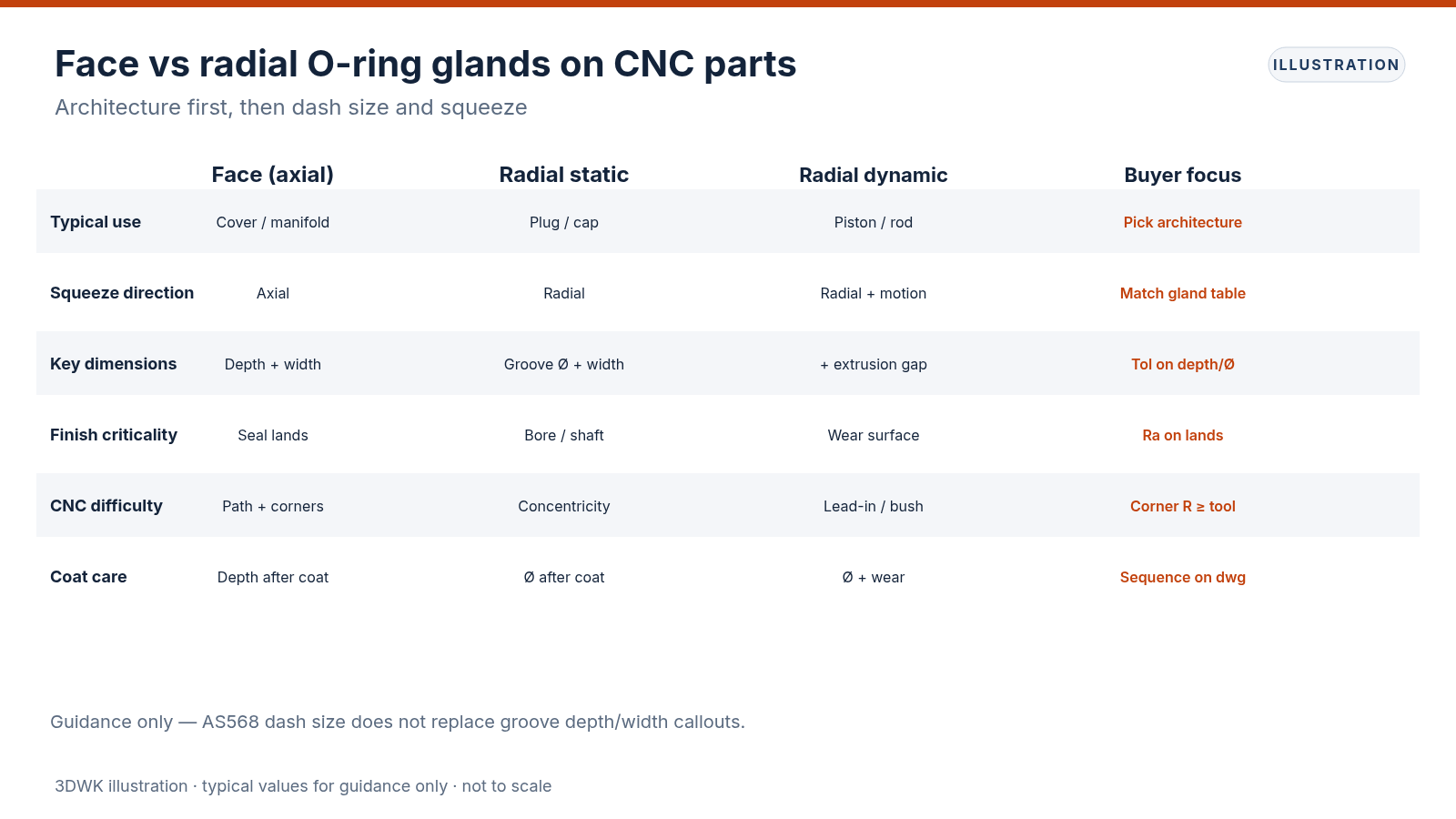

Face seal vs radial gland: pick the architecture first

• Cover-to-housing joints
• Manifold plates and valve blocks
• Battery or electronics enclosures with gasket-like O-ring frames

Face grooves are usually easier to machine and inspect on plates than deep radial glands. They need a closed or carefully radiused groove path, controlled depth and a flatness / surface finish story on the sealing lands.

• Piston heads sliding in cylinders
• Static plugs and caps with radial squeeze
• Some shaft seals (often with additional wear rings or backup rings—out of scope here)

Radial glands need concentricity, bore finish and lead-in chamfers that face grooves do not. Dynamic radial seals add wear, lubrication and extrusion-gap rules that static face seals rarely see.

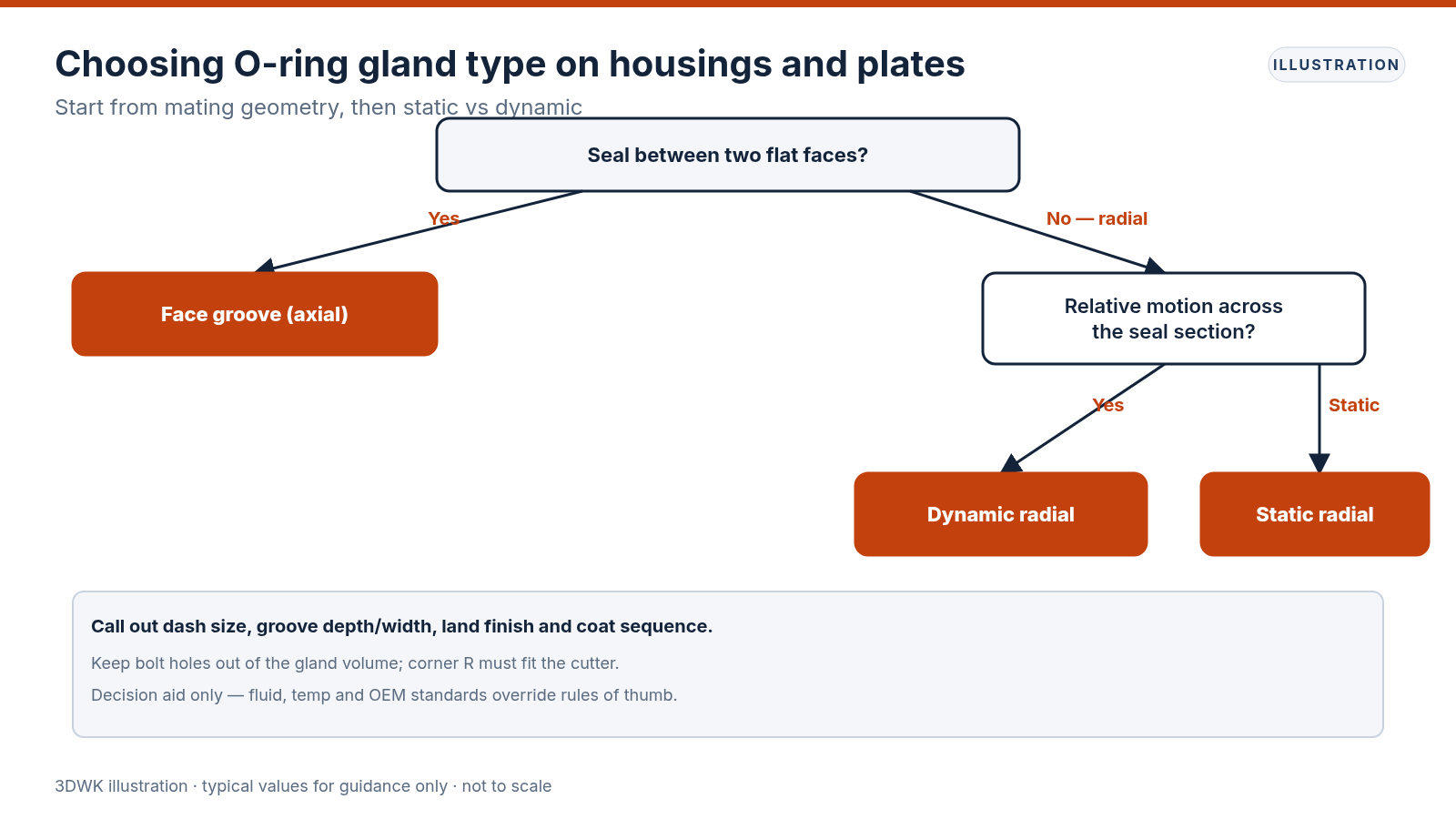

Decide architecture before you copy a groove table. A face-seal AS568 dash number does not automatically become a correct radial gland of the same dash.

AS568-style sizing: what buyers usually specify

AS568 (and equivalent metric families) catalogs standard O-ring inside diameters and cross-sections (commonly called dash sizes). On CNC drawings, buyers typically call out:

• Dash size or explicit ID × cross-section (for example AS568-214 or 1.234 × 0.139 in)
• Compound family only at the level you truly need (NBR, FKM, EPDM, silicone, etc.)—avoid branding a single vendor unless procurement requires it
• Groove type: face or radial; static or dynamic if that changes gland rules in your standard

Do not invent custom cross-sections when a standard dash works. Odd sizes raise tooling and inventory cost and make field replacements harder.

Typical face-groove proportions (guidance only)

Static face grooves commonly target roughly 15–30% squeeze of the O-ring cross-section for many elastomer families in room-temperature static service—exact targets depend on hardness, fluid swell and temperature. Gland volume must leave room for the compressed ring (fill percentage), or the joint will stack solid and leak or crush the elastomer.

Buyer-facing checks that usually appear in RFQs:

• Groove depth from the sealing face (controls squeeze)
• Groove width (controls fill and lateral room)
• Inner and outer land widths so the ring cannot walk out of the gland under assembly
• Corner radii at the groove bottom—sharp internal corners raise stress and are harder to machine cleanly
• Break-sharp edges at the groove mouth so the ring is not nicked during install

Aluminum CNC plates often hold groove depth well when the face is finish-milled in the same setup as the groove. Deep pockets next to a thin land can spring and change local depth—see thin-wall pocket guidance.

Radial gland notes buyers forget

For radial static glands, shops care about:

• Groove diameter (male or female gland) relative to the mating bore/shaft
• Groove width and bottom radius
• Lead-in chamfers so the ring is not sheared on assembly
• Concentricity of the groove to the sealing diameter
• Extrusion gap at the clearance diameter (backup rings may be required at higher pressures—follow your standard; do not invent a pressure cutoff here)

If the part is anodized or plated, state whether groove diameters are before or after coating. Coating build changes squeeze.

Surface finish and flatness on sealing lands

O-rings tolerate a range of finishes, but sealing lands that are too rough or wavy leak. Typical practice for many static face seals on metal is a smooth machined finish (often discussed in Ra bands around the low single-digit micrometers for critical faces—confirm against your seal handbook). Avoid:

• Heavy tool marks concentric with the seal path that can form leak channels
• Unfinished saw-cut or as-cast lands under the ring
• Calling Ra 0.2 µm everywhere when only the seal land needs it

Couple finish with flatness or parallelism where the cover and housing must meet. A perfect groove depth on a warped plate still leaks. See flatness, parallelism and perpendicularity for when those callouts earn their cost.

Materials, coatings and groove interaction

• Masking or oversize/undersize strategy if coating thickness changes gland size
• Hard anodize (Type III) builds more thickness and can require different pre-coat dimensions—see anodizing Type II vs Type III and chem film vs Type II anodize

Drawing notes that keep quotes accurate

Ambiguous notes such as “O-ring groove per AS568” without dash size, depth and width force estimators to guess. Prefer:

• Dash size or ID × CS
• Face vs radial; static vs dynamic if required by your standard
• Quantity and which grooves (do not assume every pocket is a seal)
• Compound or hardness band only if function needs it

• Depth and width with tolerances that match squeeze targets—not blanket ±0.05 mm on every feature if only depth is critical
• Bottom radius minimum
• Land widths and edge distance to fasteners (bolt circles that cross the groove path need redesign)

• Ra or equivalent on sealing lands
• Flatness of mating faces if the joint is wide
• Coating sequence relative to final groove size

• Install lubrication allowed or forbidden
• Whether backup rings are part of the BOM

CNC machining implications

Face grooves are often cut with form tools, end mills or dedicated groove cutters. Estimators need:

• Groove path length (closed rectangular, racetrack, circular)
• Minimum internal corner radius of the groove path—cannot be sharper than the cutter allows
• Depth-to-width ratio and access for chip evacuation
• Whether the opposite face is already finished (setup count)

A long racetrack groove on a large plate is a different cost driver than four small circular face seals. Call them out separately on the RFQ.

Inspection and first-article checks

Useful buyer checks without over-inspecting:

• Groove depth and width at several stations
• Visual for nicks, burrs and sharp edges at the mouth
• Spot check of land finish
• Dry fit of a sample O-ring (not a substitute for dimensional inspection, but catches gross errors)

For critical pressure joints, first-article inspection may include a pressure or leak test defined by you—not by inventing a universal test pressure on a marketing page. See first article inspection reports for how to scope FAIR without vague “seal OK” language.

Common RFQ mistakes

• Copying a dash size from a catalog without checking gland depth for that cross-section
• Putting bolt holes through the gland volume
• Leaving groove corners sharper than any practical cutter
• Specifying Type III anodize after machining final gland sizes with no coat allowance
• Calling dynamic radial rules on a static face cover
• Omitting which side of a plate carries the groove when both faces look similar on the PDF
• Asking for “food grade O-ring groove” without a compound or standard reference

Cost and lead-time drivers (no fixed prices)

Quotes move with groove count and length, tight depth tolerances, fine finish on large lands, hard coatings with mask, multi-setup faces and inspection density. Standard dash sizes and commercial depth tolerances are usually cheaper than custom sections and optical-flat sealing faces. Ask the estimator when a cover seal can stay commercial versus when aerospace-style leak criteria apply.

Checklist before you release the drawing

• Architecture: face vs radial, static vs dynamic
• Dash size or explicit cross-section and ID
• Groove depth, width, radii and lands with functional tolerances
• Finish and flatness only where the seal needs them
• Coating sequence vs final gland size
• Install notes and backup rings if required

When the package is clear, shops quote faster and seals work as intended. For CNC housings and plates, use the CNC machining service page and submit drawings through the quote form.
