Why machined stainless needs a finishing step
Stainless steel resists corrosion because of a very thin chromium-rich oxide film on its surface. Machining, grinding and handling can disturb that film and leave behind free iron from tools, fixtures or shop dust. If that iron stays on the surface, the part may show rust spots soon after delivery, even though the base metal is perfectly sound.
Passivation and electropolishing are the two common treatments that restore and improve the surface. They are often confused, but they do different things and suit different parts.
Passivation in one paragraph
Passivation is a chemical cleaning treatment, normally in nitric or citric acid solutions, that dissolves free iron and other contamination from the surface and helps the chromium-rich passive film reform. It does not change the appearance noticeably and removes essentially no measurable material. Dimensions stay the same, which makes it safe for precision parts.
Electropolishing in one paragraph
Electropolishing is an electrochemical process that removes a thin layer of metal from the surface, typically a few micrometers, with the part acting as the anode in an acid electrolyte. Peaks dissolve faster than valleys, so the surface becomes smoother and brighter. It also removes embedded contamination and leaves a chromium-enriched, highly passive surface.
Side-by-side comparison
| Topic | Passivation | Electropolishing |
|---|---|---|
| Mechanism | Chemical cleaning | Electrochemical metal removal |
| Material removed | Negligible | Typically a few micrometers, controllable |
| Appearance change | Little or none | Brighter, smoother, often mirror-like on good substrates |
| Effect on roughness | None | Reduces micro-roughness noticeably |
| Edge effect | None | Rounds sharp edges and removes micro-burrs |
| Common specifications | ASTM A967, AMS 2700 | ASTM B912 |
| Typical uses | Most machined stainless parts | Medical, food, pharmaceutical, vacuum and cleanroom parts |
| Relative cost | Lower | Higher |
The common specifications
ASTM A967
A widely used standard for chemical passivation of stainless steel parts. It describes several nitric acid and citric acid treatments, along with tests that can verify the result.
AMS 2700
An aerospace specification for passivation that defines methods, classes and testing requirements. It is often called out on aerospace drawings in place of older specifications.
ASTM B912
A standard for passivation of stainless steels using electropolishing. A drawing callout should name the specification and, where it allows choices, the method or type. If the drawing leaves the method open, the finisher picks one suitable for the grade.
Nitric or citric
Nitric acid passivation is traditional and well understood. Citric acid passivation uses milder chemistry, is easier to handle and dispose of, and is increasingly common. Both are accepted under ASTM A967 for many grades. Some customers or industries specify one; otherwise the finisher chooses based on grade and process capability.
Free-machining grades such as 303 and 416 contain sulfur, and aggressive treatment can attack the sulfide inclusions and leave pits or a frosted appearance. These grades need suitable chemistry and careful control.
Testing the passive surface
Passivation is verified with tests that look for free iron or early rust, usually on sample parts or witness coupons.
- Water immersion or humidity tests expose parts to moisture and check for rust spots
- Salt spray tests use a salt fog for a set period
- Copper sulfate tests detect free iron by copper deposition, but they are not suitable for every grade
- High-humidity cabinet tests are common for many aerospace requirements
The test, sample size and frequency should be agreed on the purchase order if they matter for acceptance.
Design for electropolishing
Electropolishing depends on current flow, so geometry matters.
Recesses and blind holes
Current density is lower in deep recesses and blind holes, so they receive less polishing. Internal surfaces of long tubes may need internal cathodes. Mention any internal surfaces that must be electropolished.
Edges
Edges polish faster and become slightly rounded. That is often welcome, since it removes micro-burrs, but it matters for sharp cutting edges or sealing edges that must stay crisp.
Dimensions
Removal is small but real. A typical removal of a few micrometers per surface can matter on tight bores and fine threads. Specify the removal range or the final dimension, and allow the shop to machine slightly oversize if needed.
Racking marks
Each part needs electrical contact, which leaves a small mark. Indicate where contact marks are acceptable.
What electropolishing cannot do
It improves surfaces at the micro scale but does not remove deep scratches, tool marks or pits. A rough, poorly machined surface stays visibly marked after electropolishing; it simply becomes shinier. For a mirror finish, start with a good machined or mechanically polished surface. Electropolishing also does not fix the wrong grade or a poor design that traps moisture.

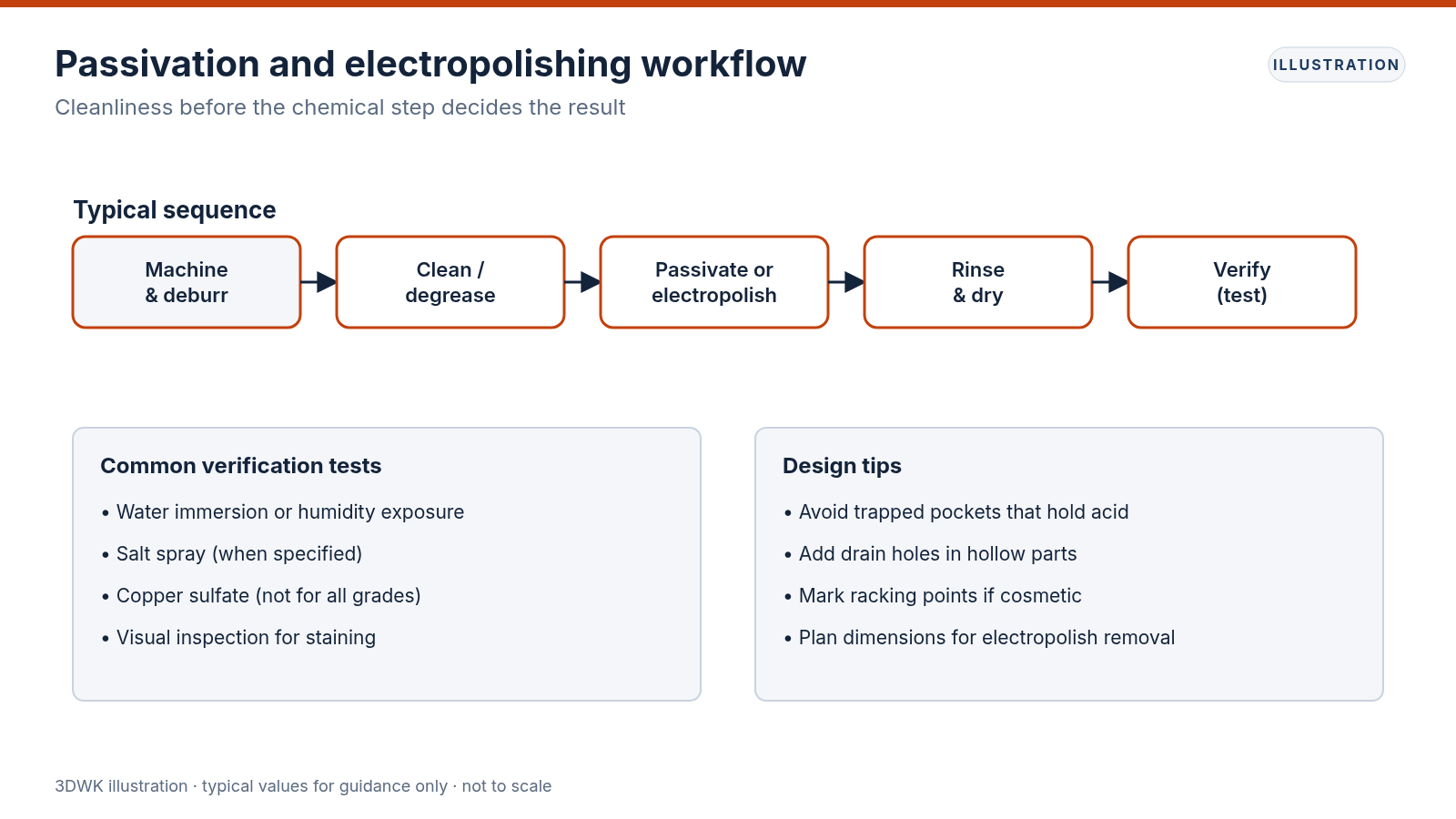

Typical process sequence
A clean, well-controlled sequence gives the best results:
- Machine the part and remove burrs
- Degrease and clean thoroughly to remove oils and coolants
- Mechanically polish if a bright cosmetic finish is needed
- Passivate or electropolish to the specified standard
- Rinse in clean water, dry and inspect
- Package to avoid contact with carbon steel and contamination
Heat treatment and welding should normally happen before passivation, because they disturb the surface. Heat tint from welding is usually removed by pickling or electropolishing before the final passivation.
Choosing between them
- General machined stainless parts that need reliable corrosion resistance: passivation
- Parts that must be easy to clean, such as food or medical equipment: electropolishing
- Vacuum and cleanroom parts where outgassing and particles matter: electropolishing
- Precision parts where no dimensional change is allowed: passivation
- Cosmetic bright finish: mechanical polishing followed by electropolishing
Handling after finishing
A passivated surface can be contaminated again. Tools, carbon steel racks, steel wool and shop dust can embed iron. Wrap or bag finished parts, avoid contact with carbon steel during assembly, and use stainless or plastic tools where practical.
Grade-specific notes
Austenitic grades such as 304 and 316 respond well to standard passivation and electropolishing. 316L is the most common grade for electropolished hygienic parts because it combines good corrosion resistance with a clean, bright result.
Martensitic and precipitation-hardening grades such as 410, 440C and 17-4PH need more care. They can be sensitive to the acid chemistry and, in hardened conditions, to hydrogen embrittlement in some processes. The finisher will usually choose a milder method and may recommend a bake or specific sequence relative to heat treatment.
Mixed assemblies with other metals should normally be finished as separate parts before assembly. Acid baths can attack aluminum, brass and carbon steel components, and trapped acid in joints can cause later corrosion.
Writing the callout
Good examples are "Passivate per ASTM A967, citric acid method, verify by humidity test" or "Electropolish per ASTM B912, remove 5–10 µm, mask threads". State whether certificates of conformance are required. For regulated industries, add lot traceability and test reporting requirements to the purchase order.
Frequently raised concerns
Will passivation remove rust that is already there?
Light surface contamination, yes; established rust or heat tint, often not. Those may need pickling or mechanical cleaning first.
Does passivation make 304 as good as 316?
No. Passivation restores the alloy's own resistance; it does not change the alloy.
Can aluminum or carbon steel be passivated?
The term refers to stainless steel processes here. Aluminum uses anodizing or conversion coatings, and carbon steel needs a protective coating.
Summary
Passivation is the standard, low-cost step that nearly every machined stainless part benefits from. Electropolishing goes further, smoothing and brightening the surface for hygienic, vacuum and cosmetic applications, at the cost of slight material removal. Choose based on function, specify the standard, and protect parts from re-contamination after finishing.
