Two ways to put color on metal
Powder coating and liquid paint both leave a colored, protective film on a part, but they get there by different routes. Powder coating applies dry, electrostatically charged powder and then cures it in an oven, where it flows into a continuous film. Liquid paint is sprayed wet and dries or cures through solvent evaporation, chemical reaction or heat.
For machined and sheet metal parts, the choice affects durability, appearance, tolerances, cost at volume and how fine details survive. This guide compares the two in practical terms.
How each process works
Powder coating
Parts are cleaned and pretreated, often with a phosphate or zirconium conversion coating. They hang on conductive racks, receive charged powder from a spray gun, and then go into an oven, typically around 180–200 °C, for curing. The powder melts, flows and cross-links into a tough film. Overspray can often be recovered and reused.
Liquid paint
Parts are cleaned, pretreated and usually primed. Paint is sprayed in one or more coats. Air-dry paints cure at room temperature, two-component paints cure by chemical reaction, and baked enamels cure in a low-temperature oven. Wet paint can be applied to parts that cannot tolerate oven temperatures, including assemblies with plastic or rubber components.
Comparison table
| Topic | Powder coat | Liquid paint |
|---|---|---|
| Typical film thickness | ~60–120 µm in one coat | ~25–75 µm, often in several coats |
| Durability | Very good chip and abrasion resistance | Good; depends heavily on paint system |
| Heat needed | Oven cure, typically 180–200 °C | Room temperature to low bake |
| Thin film and fine detail | Harder; tends to round edges and fill small features | Easier; thin coats keep fine detail |
| Color matching | Standard colors widely available; custom batches have minimums | Mixed to order; small quantities easy |
| Touch-up | Difficult; repairs usually done with matching liquid paint | Straightforward |
| VOC emissions | Very low | Varies; solvent-borne paints emit more |
| Suitable substrates | Metals that tolerate cure heat | Metals, plastics, composites, assemblies |
Durability in practice
Powder coating's thick, cross-linked film resists chipping, scratching and abrasion well, which is why it is common on enclosures, brackets, outdoor furniture and machine guards. Exterior-grade polyester powders hold color and gloss outdoors better than epoxy powders, which chalk in sunlight but have strong chemical resistance indoors.
Liquid systems span a wide range. A two-component polyurethane topcoat over an epoxy primer can be very durable and is common in heavy equipment and aerospace. A single-coat air-dry enamel is much less robust. When comparing quotes, compare the full system, not just the word "paint".
Film build and tolerances
A typical powder coat adds roughly 60–120 µm per surface. That is enough to close up small holes, fill fine engraved text and make slots and tabs fit tightly. Liquid paint is thinner and easier to keep under control.
Design rules for powder coated parts:
- Size clearance holes and slots with the coating in mind
- Mask threads, or tap them after coating
- Mask bearing and press-fit bores
- Avoid tiny engraved or embossed text; use larger, bolder characters
- Allow for slightly rounded edges and corners

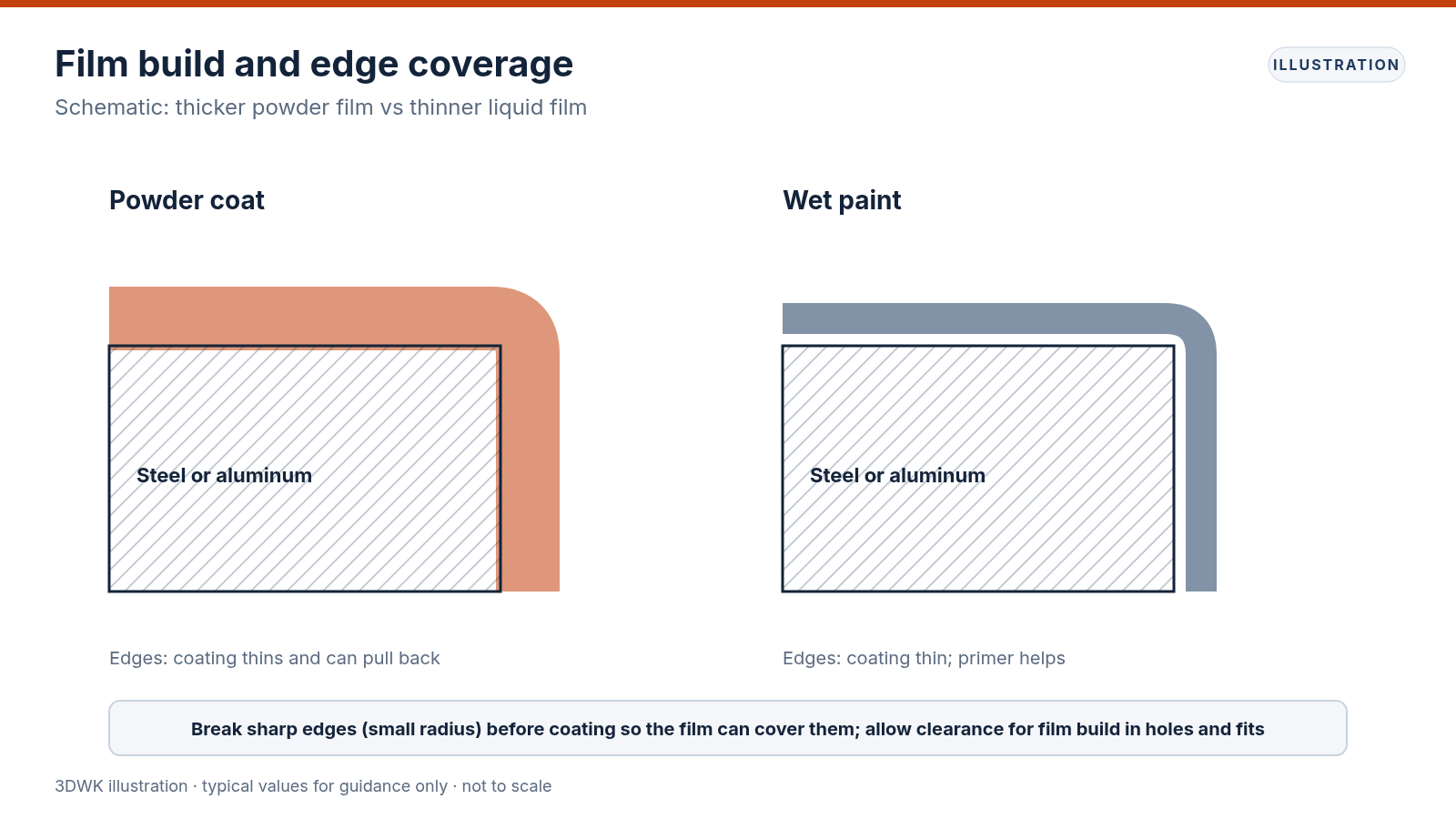

The edge problem
Powder pulls away from sharp edges during curing, leaving thinner coverage on the edge itself. That is where corrosion often starts on outdoor parts. Electrostatic attraction also makes it hard to coat deep inside corners and recesses, an effect called the Faraday cage effect. Recesses may end up thinly covered.
Practical responses are a small edge radius instead of a sharp corner, avoiding very narrow deep slots, and good pretreatment so the coating adheres well where it is thin. Liquid paint does not avoid edge thinning completely, but multiple thin coats and primer give more control.
Color, gloss and texture
Both systems offer a wide range of colors. RAL numbers are the common European reference, and many powder suppliers stock popular RAL colors. Gloss is usually specified in gloss units at a standard angle, such as matte, satin or high gloss.
Powder coating offers textures such as fine texture, wrinkle and hammer tone that hide surface defects and fingerprints. That can save cosmetic preparation on sheet metal parts with visible welds or grain. Liquid paint is often chosen for very smooth, high-gloss finishes or for exact color matches across mixed materials.
For any color-critical program, approve a physical color sample, define gloss and texture, and keep a reference panel. Different batches and suppliers can vary slightly.
Masking and hanging
Both processes need masking for threads, ground points, mating faces and holes with tight fits. Silicone plugs and high-temperature tapes are used for powder because they must survive the cure oven.
Each part also needs a hanging or contact point. For powder, the hook must touch bare metal for electrical ground, so a small bare or marked spot remains. Add a small hanging hole on a non-cosmetic face if the design allows it. This saves masking time and avoids marks on visible surfaces.
Grounding and electrical continuity
Both coatings insulate. If a part needs an electrical ground or must be bonded to a chassis, mask the contact areas or plan for conductive fasteners that cut through the coating. A drawing note such as "Mask both faces around M4 ground studs, 10 mm diameter" prevents confusion.
Cost and volume
For production quantities in standard colors, powder coating is usually economical because it applies a thick coat in one pass with little waste. For very small batches, unusual colors or parts that cannot take oven heat, liquid paint can be the simpler choice. Avoid assuming one is always cheaper; masking, racking and color changes often dominate the cost of a small batch.
Choosing between them
- Steel enclosures, brackets and outdoor hardware: powder coat in a polyester or appropriate exterior grade
- Indoor parts needing chemical resistance: epoxy powder or an epoxy paint system
- Parts with plastic components or low heat tolerance: liquid paint
- Fine detail, thin films or tight tolerance features: liquid paint, or powder with careful masking
- Small batch in a custom color: liquid paint is often easier
- Highest chip resistance on a budget: powder coat
Coating aluminum
Aluminum can be powder coated or painted, but pretreatment is critical for adhesion. A chromate or non-chromate conversion coating is usually applied first. For many aluminum parts, anodizing is an alternative that adds no thickness concerns of the same scale and gives a metallic look; see the anodizing article for that comparison.
What to specify
State the coating type, color reference, gloss, texture, thickness range if it matters, and masking. Example: "Powder coat, polyester, RAL 9005, fine texture, 60–100 µm, mask threads and hatched areas". If outdoor durability or salt spray performance is needed, say so and agree on the test.
Inspection and acceptance
Film thickness is typically checked with a magnetic or eddy-current gauge, depending on the substrate. Adhesion can be checked with a cross-hatch tape test on sample parts or coupons. Appearance is usually judged at a set viewing distance under normal lighting, with agreed rules for which faces are cosmetic. If a part has class A visible faces and hidden faces, mark them on the drawing so inspection effort goes where it matters.
Defects to discuss in advance include orange peel texture, small inclusions, thin coverage in recesses and hanging marks. Some level of each is normal; what matters is that the acceptance standard is agreed before production rather than argued about afterward.
Rework
Powder coating is hard to touch up invisibly. Damaged parts are usually stripped and recoated, which takes time. Liquid paint can be spot repaired more easily. If parts will be handled heavily during assembly, plan for protective packaging or for coating after assembly where that is practical.
Summary
Powder coating gives a tough, thick finish efficiently but needs heat and adds film thickness. Liquid paint is thinner, more flexible in where and how it can be applied, and easier to match in small quantities. Design features that tolerate film build and edge thinning help either finish perform well.
