Why press-fit callouts stall CNC housing quotes
Interference fits for dowel pins, locating pins and press-in bushings look simple on a CAD model: a hole, a pin, and a note that says “press fit.” On the shop floor that note is incomplete. Estimators need hole size and tolerance class, pin or bushing size, material pair, entry chamfer, wall thickness around the hole and whether the fit is permanent or serviceable. Without those details, aluminum and steel housings get quoted with contingency, or the first article fails gauge check when a pin will not start or falls out under light load.
This guide is written for buyers and RFQ teams who specify CNC-machined housings, manifolds and fixture plates. It explains common ISO hole/shaft language (H7/p6 style notes as examples of how fits are named—not a claim of any shop’s default capability), drawing practices that reduce scrap and an RFQ checklist. Typical industry values appear only as orientation; your OEM fit tables, pin supplier data and assembly process own the final numbers. For related hole and fastener practice see designing threads and tapped holes, O-ring groove design for CNC housings, and GD&T basics for buyers.
What “press fit” means on a housing drawing
Interference, transition and clearance
Fit systems describe the relationship between hole size and shaft (pin or bushing OD) size:
- Clearance fit: hole always larger than shaft; pin slips or slides.
- Transition fit: overlap of tolerances can produce light interference or slight clearance depending on actual sizes.
- Interference (press) fit: hole always smaller than shaft within the stated tolerances; assembly needs press, thermal shrink or controlled force.
Buyers often say “press fit” when they mean “locating pin that stays put.” That may be a light transition fit in practice. Write the function (locate, retain, bushing for a rotating or sliding pin) and the fit class or size limits—not only the words “press fit.”
Pins vs bushings
- Solid dowel / locating pins: usually hardened steel or stainless; hole is machined in the housing; pin is purchased to a catalog diameter.
- Press-in bushings / liners: thin-wall or thick-wall sleeves pressed into a soft housing so a softer or replaceable bore receives a sliding pin or bolt. The housing hole is sized for the bushing OD; the bushing ID is a separate requirement.
Treat bushing OD fits and bushing ID fits as two different callouts. Confusing them is a common RFQ error.
Typical drawing language (ISO-style examples)
Many drawings use hole basis fits such as H7 with a shaft class like p6, n6 or s6 for increasing interference. Inch drawings may use RC, LN or FN classes or explicit diameter limits. Example wording patterns (illustrative only):
- “Ø6 H7 for Ø6 m6 dowel” or “Ø6.000 / 6.012 hole; pin Ø6.008 / 6.014”
- “Press-fit bushing per supplier P/N; housing bore Ø… H7”
- “Pin must be removable with arbor press; max press force note for service”
Do not invent a shop’s guaranteed H7 capability in the RFQ email. Ask whether the quoted process holds the stated tolerance on that diameter and material, and whether the pin supplier’s OD tolerance is included in the stack-up.

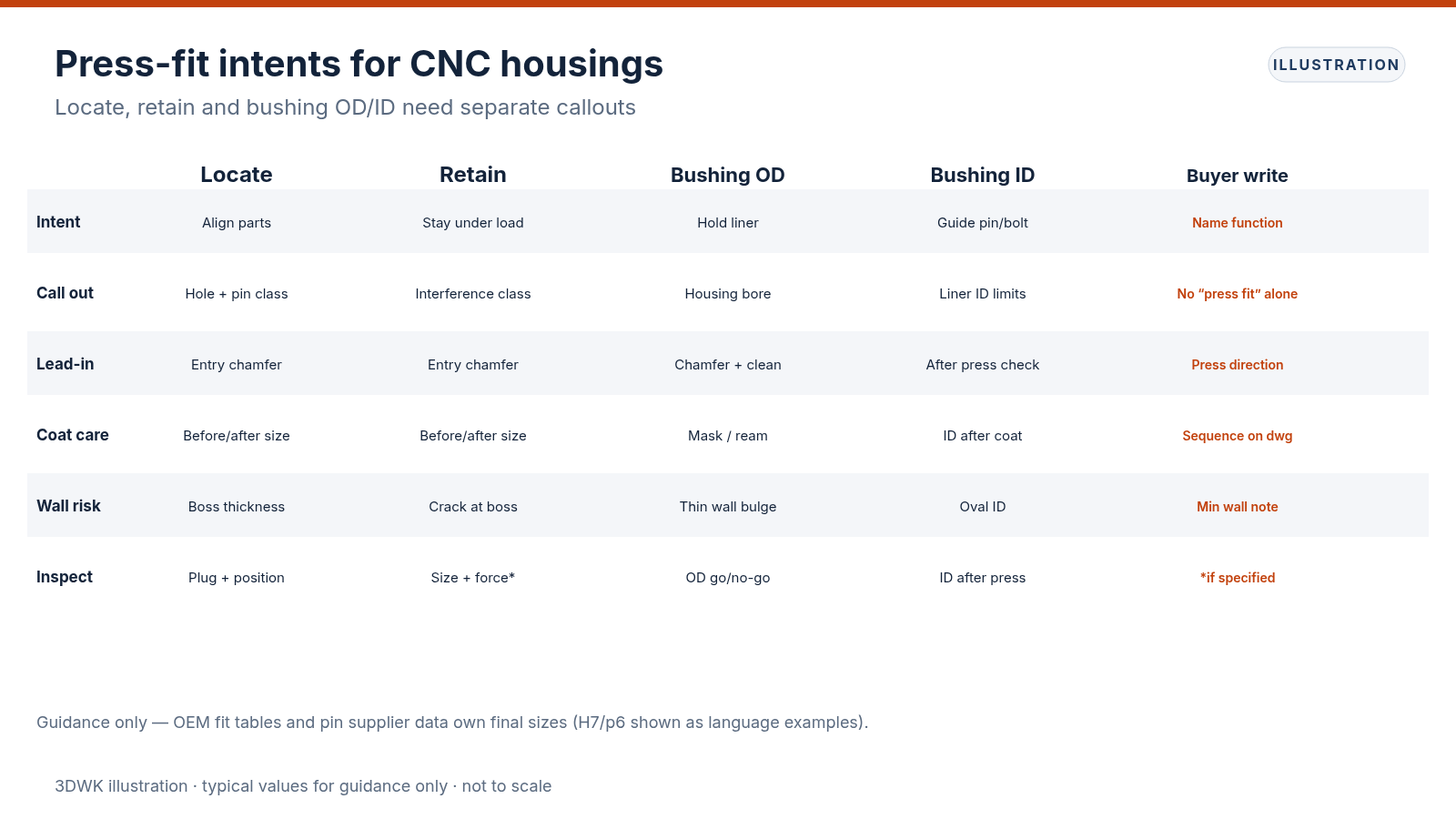

Illustration 1 compares common buyer intents with the callouts shops need.
Geometry that decides whether the press succeeds
Entry chamfer and lead-in
A sharp hole edge digs into the pin, galls aluminum and raises press force unpredictably. Typical practice is a small chamfer or break on the entry side (and often on the pin end). Call:
- Chamfer size and angle on the housing hole entry (for example 0.3–0.5 × 45° as a common starting discussion—confirm against your pin length and wall)
- Which face is the press-entry face when the hole is through both walls of a pocket
- Whether the exit side must remain sharp for a seal land or may also break
See edge break, chamfer and deburr callouts for measurable edge notes that do not conflict with the fit.
Wall thickness and boss design
Thin walls around an interference hole can bulge, crack or ovalize during press. Give estimators:
- Minimum wall from hole OD to outer wall or adjacent pocket
- Boss height if the hole sits in a raised boss
- Whether adjacent thin walls are cosmetic or structural
Deep counterbores next to press holes steal wall—coordinate with counterbore vs countersink vs spotface practice when bolt patterns share a face with dowels.
Blind vs through holes
Blind holes trap air and chips; press force can spike. Note vent flats on pins, cross-drills or a small vent groove if your assembly process needs them. Through holes are simpler to clean and inspect with air gauges or pins from both sides.
Position and pattern
Two-pin location patterns need position tolerance relative to a datum scheme. Over-tight position with heavy interference fights assembly: the second pin will not enter if the first pin has already locked the parts with angular error. Prefer one tightly sized locating pin plus a slotted or clearance hole for the second fastener when designs allow—or state the assembly sequence and allowable float.
Material pairs and finish sequence
Aluminum housings with steel pins
Common for fixtures and enclosures. Aluminum yields locally more than steel, so light interference often holds well—but anodize changes hole size. State whether fit sizes are before or after Type II / Type III anodize or chem film. See chem film vs Type II anodize and anodizing Type II vs Type III. Hardcoat (Type III) build on ID holes is especially important for tight fits.
Steel and stainless housings
Higher press forces, higher galling risk with stainless-on-stainless. Call pin material and coating (for example dry-film lubricant or plating) if assembly is dry. Heat treat of the housing after machining can move holes—see heat treating steel after CNC machining and plan whether pins press before or after heat treat.
Plastics
PEEK and POM accept press bushings but creep under sustained interference. Do not copy metal H7/p6 notes into plastic without engineering review of retention force over temperature.
Coatings inside the hole
Powder coat and thick plating belong outside precision press holes, or holes must be masked / reamed after coat. Say so on the print.
Process and inspection notes shops price
How holes are finished
Reaming, boring or helical milling can all produce H7-class holes depending on diameter, length and material. Buyers should specify the size and geometric requirements; process choice belongs to the shop unless a special surface finish or straightness note forces a method. Deep holes change the story—see deep hole drilling and gun drilling when L/D is large.
Measuring interference features
- Plug gauges / pin gauges for go/no-go on hole size
- Air gauges or bore micrometers for size and taper
- CMM for position of patterns; optical systems for large plate layouts
- Press-force monitoring on assembly fixtures when retention is critical
First article inspection should list each press hole’s size, position and any bushing OD/ID separately. See first article inspection reports and CMM vs optical measurement guidance when you choose a method on the RFQ.
RFQ checklist for press-fit pins and bushings
Before you send files:
1. Every locating feature states hole limits (or fit class + reference shaft) and pin/bushing part number or OD/ID limits.
2. Function is named: locate, retain, sliding bushing, replaceable liner.
3. Entry chamfer / lead-in and press direction are on the drawing.
4. Finish sequence relative to the fit is explicit (machine → coat → optional size).
5. Wall thickness and blind/through condition are visible or dimensioned.
6. Position tolerances and datum scheme support assembly, not only “tight.”
7. Quantity of press features and whether pins are customer-supplied are in the RFQ text.
8. Related service pages: CNC machining service and request a quote when you are ready to price the housing.
Side-by-side buyer language
| Intent | Prefer writing | Avoid |
|---|---|---|
| Locating dowel | Hole limits + pin P/N or shaft class | “Press fit dowel” alone |
| Heavy retention | Interference class + max/min press note | “Tight as possible” |
| Serviceable pin | Transition fit or stated removal method | Permanent press with no service note |
| Soft housing + hard pin | Material pair + coat sequence | Ignoring anodize build |
| Bushing liner | Separate OD and ID callouts | One “bushing hole” note |

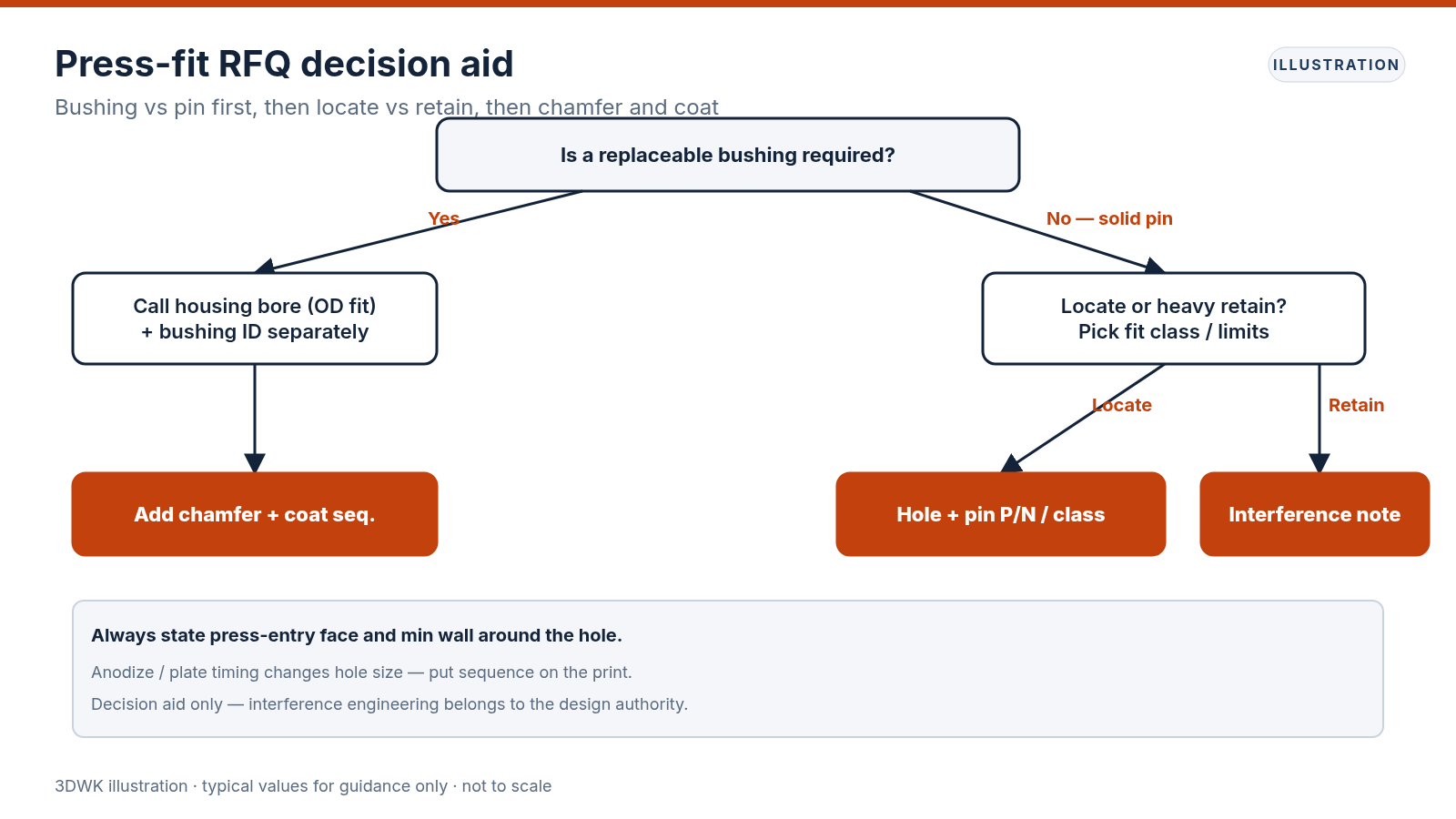

Illustration 2 is a decision aid from function to callout type.
Common scrap modes and how drawings prevent them
- Pin will not start: missing chamfer, undersized hole after coat, wrong pin OD lot.
- Pin falls out: clearance where interference was assumed; wrong class; oval hole from thin wall.
- Housing cracks at boss: interference too heavy for wall; no stress-relief radius at boss root.
- Pattern will not assemble: position too tight relative to interference; no float on second locator.
- Bushing spins or walks: OD interference insufficient or contaminated bore; wrong surface finish.
None of these need exotic processes to avoid—they need complete size, finish and assembly notes on the print the shop and assembler share.
How this fits a CNC housing RFQ package
Send PDF drawing (or PMI-export) plus STEP, pin/bushing supplier datasheets and a short note on assembly (hand press, arbor, thermal). Call out cosmetic faces so press witness marks are acceptable or forbidden. If the same housing also carries O-ring grooves, tapped holes and counterbores, keep each feature family’s notes distinct so estimators do not merge “all holes are H7.”
When you are comparing aluminum alloys for the housing itself, 6061 vs 7075 aluminum for machined parts and titanium Ti6Al4V for machined parts give material context; the fit callout still rides on hole size and finish sequence more than alloy marketing names.
Summary for estimators and buyers
Press fits are size-and-sequence problems, not adjectives. Name the function, give hole and shaft limits or a recognized fit designation tied to a real pin, chamfer the entry, state coating timing and leave enough wall. That package quotes cleaner, machines cleaner and assembles with fewer surprise press events on the first article.
