How a sheet metal enclosure is made
A sheet metal enclosure starts life as a flat blank. The blank is cut by laser or punch press, deburred, formed on a press brake, fitted with hardware, joined where needed and finally coated. Each stage has its own rules, and most design problems come from a feature that suits one stage but fights another, such as a hole that cuts cleanly in the flat but distorts when the flange next to it is bent.
This guide follows that sequence. Designing in the same order the part is made is the simplest way to catch conflicts before they reach the shop.
Stage 1: Material and thickness
Pick the material and gauge first, because almost every other rule scales with thickness (written here as T).
| Material | Typical thickness for enclosures | Strengths | Points to watch |
|---|---|---|---|
| Aluminum 5052-H32 | ~1.0–3.0 mm | Light, forms well, good corrosion resistance | Avoid 6061-T6 for tight bends; it can crack |
| Cold-rolled steel (e.g. 1008/1010) | ~0.8–2.0 mm | Stiff, inexpensive, easy to weld | Needs plating or paint against rust |
| Galvanized steel | ~0.8–2.0 mm | Built-in zinc protection | Welds and cut edges lose some protection |
| Stainless 304 | ~0.8–2.0 mm | Corrosion resistant, can be left bare | Springs back more; harder on tooling |
Keep one thickness for the whole enclosure where you can. Mixing thicknesses means separate cutting programs and different bend tooling, and it complicates joints.
Stage 2: The flat pattern and bend allowance
When metal bends, the outside stretches and the inside compresses. Somewhere in between is the neutral axis, which keeps its length. Its position is described by the K-factor, typically between about 0.3 and 0.5 depending on material, thickness and tooling.
CAD programs use the K-factor to unfold the part into a flat pattern. If your CAD default differs from the shop's tooling, the finished flanges will be slightly off. For most enclosures, let the shop adjust the flat pattern to its own bend tables and dimension the drawing on the formed part.
Inside bend radius
A common starting point is an inside radius roughly equal to the material thickness. Using one radius on every bend lets the whole part be formed with a single tool set.
Minimum flange length
The flange must be long enough to sit across the die opening. A rule of thumb is a flange of at least about four times the thickness, measured to the outside of the bend. Shorter flanges may need special tooling or may not be possible at all.
Bend relief
Where a bend ends at an edge or meets another bend, add a small relief notch. Without it, the material tears or bulges at the corner. Relief width of about the material thickness and depth slightly past the bend radius are common choices.
Stage 3: Holes, slots and cut-outs near bends
Features that sit too close to a bend line get pulled out of shape when the flange forms. Round holes become oval and slots narrow.
- Keep holes at least about 2.5 × T plus the bend radius away from the bend line
- Keep slots and larger cut-outs further away, or extend them across the bend as a deliberate relief
- Keep holes at least about one to two times T from part edges
- Make hole diameters at least equal to T for punched holes; laser cutting can go smaller
- Avoid long narrow tabs and fingers, which twist during cutting and forming
If a hole must sit close to a bend, ask whether it can be cut after forming. That adds a step but avoids distortion.
Stage 4: Hardware for assembly

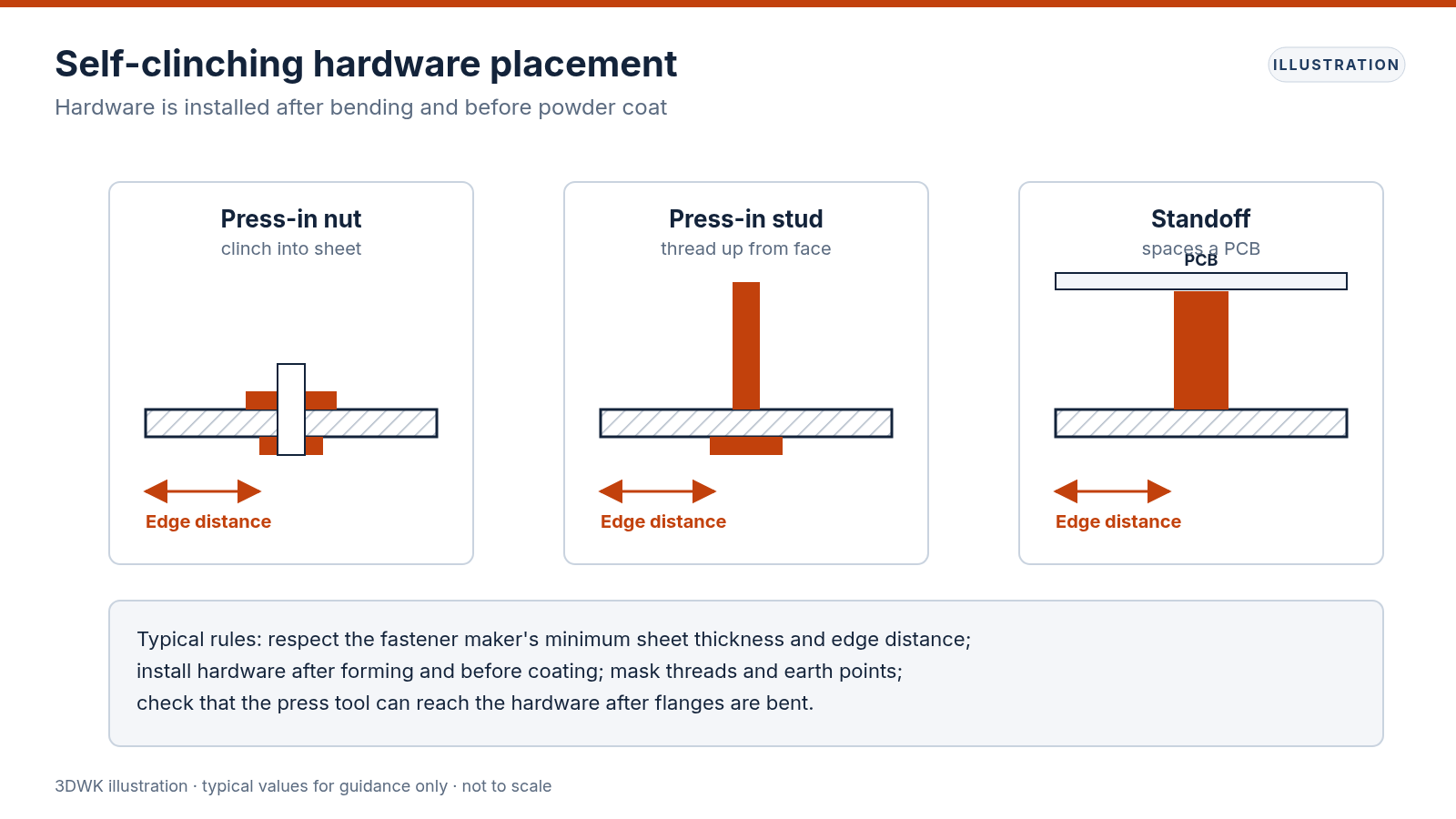

Enclosures rarely use tapped holes in thin sheet, because there are not enough threads to hold. Self-clinching hardware solves this: nuts, studs and standoffs that are pressed into the sheet and lock in place.
Placement rules
Every hardware maker publishes a minimum sheet thickness, hole size and edge distance for each part. Follow those values directly; they differ between parts and materials.
Order of operations
Hardware is usually installed after bending, because the press must be able to reach it and the part must lie flat under the press. Check that no flange blocks access to the hardware location once formed.
Coating and threads
Hardware goes in before powder coat or paint. Threads are then masked or cleaned after coating so screws still run freely.
Stage 5: Joining corners and panels
A box needs closed corners. The main options are:
| Method | Appearance | Strength and sealing | Notes |
|---|---|---|---|
| Open corner with relief | Small gap at corner | Lowest; not sealed | Cheapest; fine for internal chassis |
| Tab and slot, then fastened | Neat, self-locating | Moderate | Good for flat-pack designs |
| Spot or stitch welded | Clean once ground | High | Adds welding and grinding time |
| Fully welded and ground | Seamless | Highest; can be sealed | Most labour; heat can distort thin panels |
| Separate panels with screws | Visible fasteners | Moderate | Easiest to service and change |
Many enclosures use a U-shaped base with a separate lid or two folded halves screwed together. That keeps each piece simple to form and makes the inside easy to reach for assembly.
Stage 6: Vents, cable entries and grounding
Vent patterns are often a grid of small holes or louvres. Keep them away from bends and edges using the same rules as other holes, and leave enough solid material between holes to keep the panel stiff.
For cable entries, size knockouts or holes for the gland or grommet you plan to use, and leave clearance for the nut on the inside.
If the enclosure is part of an electrical safety or shielding design, mark the grounding points on the drawing. Those areas need to stay free of paint or powder so the earth connection is made through bare metal.
Stage 7: Finish selection
| Finish | Suits | Notes |
|---|---|---|
| Powder coat | Steel and aluminum | Durable, wide color range; adds a coating of noticeable thickness |
| Wet paint | Steel and aluminum | Thinner than powder; good for color matching |
| Anodize | Aluminum | Hard, thin oxide; cut edges and bends anodize too |
| Zinc plating | Steel | Corrosion protection; often used under paint or alone inside equipment |
| Brushed or bare | Stainless | No coating to chip; shows fingerprints |
Powder coat builds up on edges and in holes. Allow clearance in holes that take screws or mating parts, or mask them.
Stage 8: Tolerances that suit the process
Sheet metal tolerances are wider than machined tolerances because each bend adds a little variation. Features in the same flat face, cut in one operation, are very accurate relative to each other. Features on different flanges carry the variation of every bend between them.
Dimension critical relationships within a single face where possible, and give looser tolerances to dimensions that cross bends. If two flanges must align closely, say so on the drawing so the shop can plan the bend sequence.
Angles behave in a similar way. A bend is commonly held to within about a degree of its nominal angle, and springback varies slightly between sheets of the same material. Where two parts bolt together across a long flange, slotted holes or a little clearance absorb that variation and make assembly far easier than a tight hole pattern would.
Common mistakes to avoid
- Holes or slots inside the bend deformation zone
- Flanges too short for standard tooling
- Different bend radii on each bend without a reason
- Hardware placed where the press cannot reach after forming
- Tight tolerances applied across several bends
- No masking note for threads and grounding points before coating
Next steps
Upload the 3D model, or the flat pattern with a formed-part drawing, through the quote form. The reviewing engineer checks bends, hardware access and coating before pricing and will suggest changes that make the enclosure easier to build.
