Swiss turning vs CNC lathe for small precision parts

Swiss turning and conventional CNC lathes are not the same tool

Buyers often request “turned small parts” and assume any CNC lathe will quote the same way. For diameters under roughly 32 mm, long slender shafts, and high feature density on bar stock, a Swiss-type sliding-head lathe frequently wins on cycle time, straightness and secondary milling in one chucking. A conventional CNC lathe (fixed headstock, collet or chuck work) still wins for larger diameters, short stubby blanks and low-volume one-offs where Swiss programming and guide-bushing setup do not pay back.

This guide compares Swiss turning versus conventional CNC turning for small precision parts, with practical drawing notes and links to process pages you can use on an RFQ.

How a Swiss sliding-head lathe differs

On a Swiss-type machine the bar stock advances through a guide bushing while the cutting tools stay close to that bushing. The workpiece is supported where the cut happens, so slender parts deflect less than they would when hanging far from a conventional chuck. The headstock slides; tools are often arranged on a gang slide plus live-tool positions for milling, drilling and cross holes without a second operation.

A conventional CNC lathe holds the blank in a chuck or collet. Turning tools cut at a distance from the jaws that grows as you machine away from the chuck face. Long length-to-diameter parts need a steady rest, tailstock or redesign—or they move to Swiss.

Both platforms can hold tight diameters and good finishes. The split is about support, bar feed efficiency and how much milling you want in the same cycle.

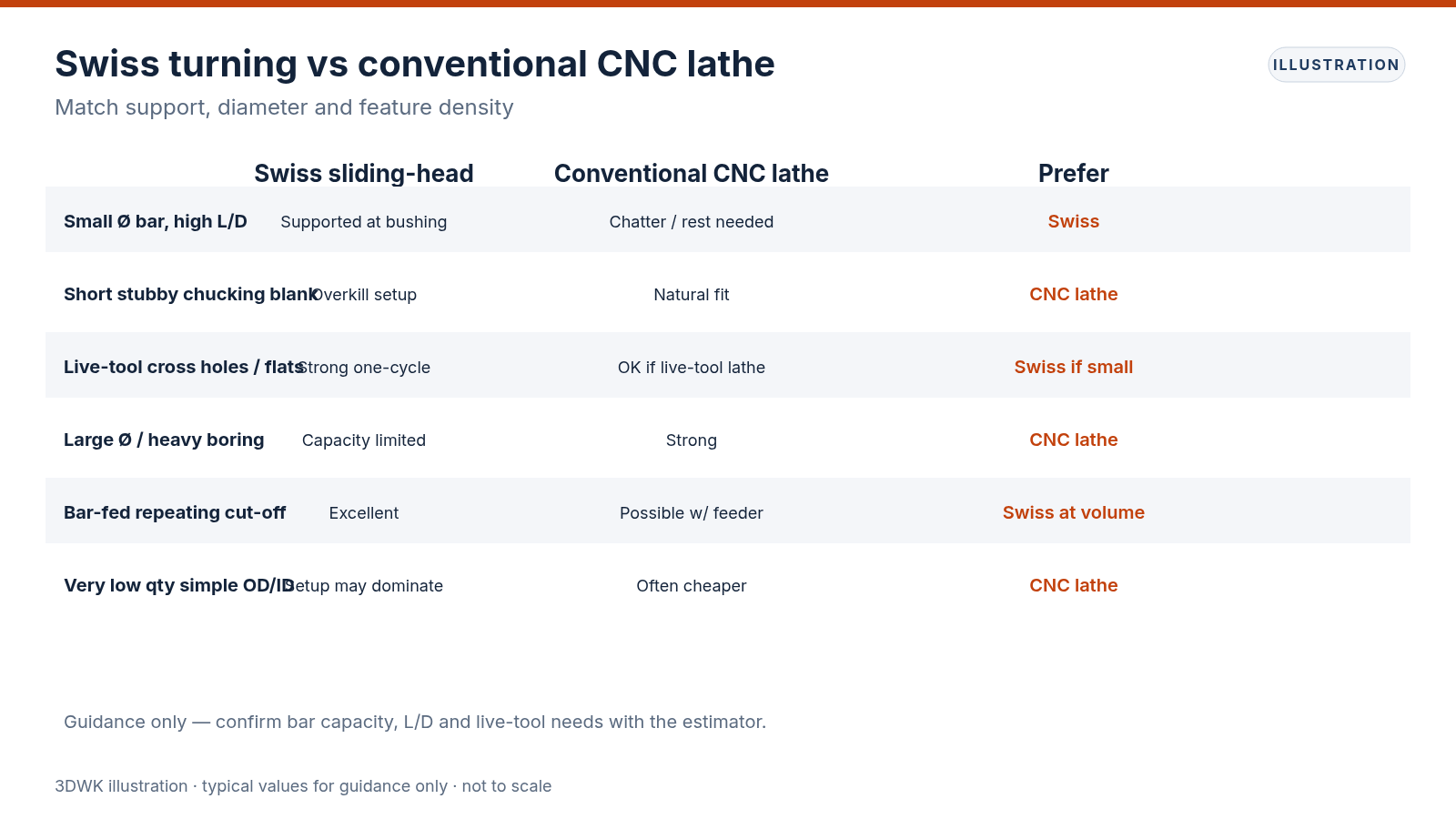

When Swiss turning clearly wins

Prefer Swiss (or ask for a Swiss-capable quote) when several of these are true:

• Finished diameter is typically in the small-to-medium Swiss range (many shops focus on roughly Ø1–32 mm; confirm your supplier’s bar capacity)
• Length-to-diameter is high enough that unsupported turning would chatter or taper
• The part is produced from bar with a repeating cut-off, not from a short sawn blank
• You need cross holes, flats, slots or light milling in the same setup via live tooling
• Volumes justify bar-feeder setup (hundreds to many thousands of pieces are common Swiss sweet spots; some shops also run smaller lots when geometry demands it)
• Concentricity between turned diameters and milled features benefits from one chucking

Typical candidates: connector pins, medical bone-screw blanks (where the shop is qualified), sensor shafts, small valve stems, precision spacers with cross holes, and long stepped shafts that must stay straight.

When a conventional CNC lathe is the better choice

Stay with conventional turning when:

• Diameter exceeds practical Swiss guide-bushing capacity for that shop
• The blank is a short, stiff chucking piece rather than long bar
• You need large-face work, heavy roughing or big boring that Swiss gang tooling is not built for
• Quantity is very low and Swiss programming / bushing change would dominate cost
• Features are simple OD/ID turns with no live-tool work and the part is stubby

Castings, forgings and billets are usually conventional or mill-turn platforms, not sliding-head Swiss bar work.

Diameter, L/D and bar feed in plain language

• Very small diameters and micro features: Swiss specialists with fine bushings and high-speed spindles
• Common precision bar work in the low tens of millimeters: Swiss is often competitive
• Larger shafts: conventional lathe or mill-turn

Always state the finished max OD and bar size you expect; do not assume every “CNC turning” quote includes Swiss.

Live tooling, sub-spindle and one-and-done

Modern Swiss machines combine turning with live tooling and often a sub-spindle for back-working after cut-off. That means flats, hexes, cross holes, light pockets and deburr features can finish in one cycle. Conventional lathes with live tooling and Y-axis or mill-turn multitasking machines overlap this capability on larger work.

For RFQs, list secondary features explicitly:

• Cross holes: diameter, depth, position tolerance, whether they break into a bore
• Flats / hex: wrench size, length, which diameter they reference
• Milled slots: width, depth, end condition
• Threads: rolling vs cutting preference if you have one; class of fit

If a second operation is acceptable, say so—sometimes a simple Swiss turn plus a short mill op is cheaper than forcing every feature into a congested Swiss program.

Materials that behave well (and notes that matter)

Swiss turning commonly runs:

• Free-machining and alloy steels, including 12L14-class and 4140 when specified
• Stainless 303 (free-machining), 304, 316 and 17-4PH (expect slower rates on tougher grades)
• Aluminum 6061 and similar
• Brass C360-class for excellent chip control
• Titanium and tough stainless when the shop has process experience—cycle times rise

Guide bushing work wants consistent bar diameter and good straightness. Oversize or out-of-round bar can stick or mark. If you require a specific melt or certificate, put it on the PO and drawing, not only in email.

Drawing notes that keep Swiss quotes accurate

• Show critical diameters, lengths and runout to clear datums
• Mark which end is cut off and whether both ends need finished faces
• For long parts, state straightness or runout requirements numerically

• Thread specs (metric / unified, class, length of engagement)
• Relief / undercut for full thread depth next to shoulders if needed
• Whether thread rolling is allowed (often preferred for strength and speed on suitable materials)

• Position dimensions from a stable datum, not from a vague “center of bar”
• Tolerances only as tight as function requires—Swiss can be precise, but ultra-tight true position on every cross hole adds inspection time

• Bar size vs finished size (or “machine from Ø… bar”)
• Surface roughness only where it matters (see also our surface-roughness guidance for buyers)
• Plating / passivation / black oxide after machining, with mask notes if needed

Cost and lead-time drivers (no fixed prices)

Expect quotes to move with:

• Setup and bushing / tooling change complexity
• Cycle time driven by length, feature count and tough materials
• Live-tool work and sub-spindle backworking
• Bar cost, remnant and yield
• In-process and final inspection density
• Deburr, washing and packaging for small parts that tangle easily

First articles may include program prove-out; repeats amortize that work. Very small lots of complex Swiss parts can cost more per piece than a clever conventional op—ask for a process recommendation rather than forcing Swiss by name.

Common RFQ mistakes

• Calling every small turned part “Swiss” when a short stubby blank is conventional work
• Omitting L/D and runout needs so the shop assumes chuck turning and then fights chatter
• Leaving cross holes and flats off the 2D drawing while they exist only in the model
• Specifying ultra-fine finish on every diameter “just in case”
• Ignoring bar tolerance and material grade (303 vs 304 changes cycle time and chip control)
• Requesting Swiss for large-diameter chucking work that will be declined or re-quoted

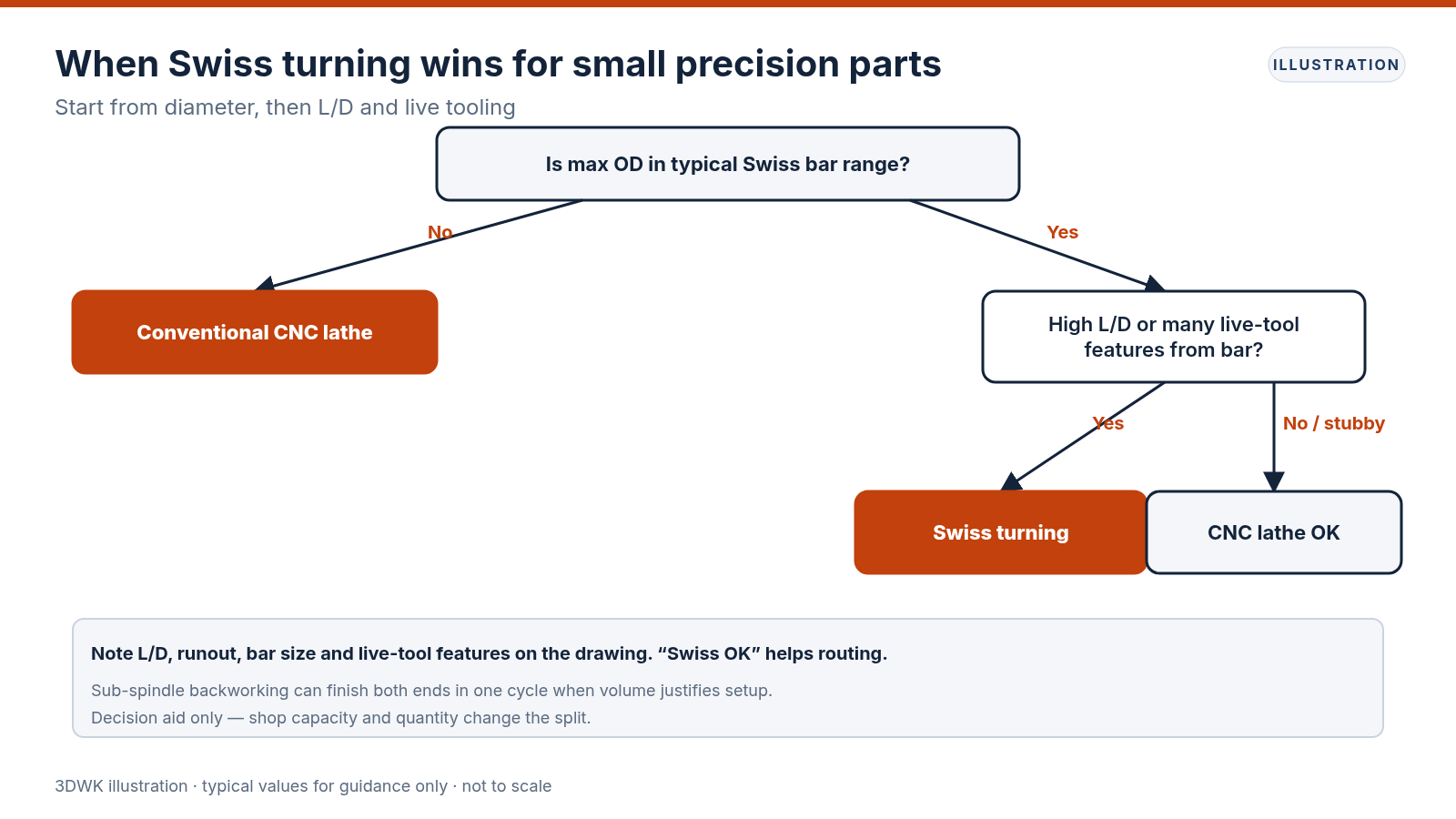

A practical decision checklist

1. Is max OD in a typical Swiss bar range for your supply base?

2. Is the part long and slender relative to diameter?

3. Does it need live-tool features in one chucking?

4. Is volume high enough to favor bar-fed cycles?

5. If no to most of the above, get a conventional CNC turning quote first.

When in doubt, send the model and drawing to both process paths and compare assumptions—not only the number on the bottom line.

Next steps for an RFQ

Attach STEP plus a PDF drawing with diameters, threads, live-tool features, material grade and any straightness or runout callouts. Note target quantity breaks. Link the job to Swiss turning or CNC machining service pages as appropriate, and request a quote with the process the estimator recommends. Clear L/D and feature intent almost always shortens clarification loops on small precision turned parts.
