Thread inserts vs tapped holes in aluminum: when inserts pay off

When aluminum threads need more than a tapped hole

Aluminum alloys such as 6061 and 7075 machine cleanly and accept cut or formed threads well—until cyclic assembly, high clamp loads or soft parent metal make a plain tapped hole the weak link. Thread inserts (helical wire inserts in the Heli-Coil style, solid key-locking inserts in the Keensert style, and related press or swage inserts) move the wear surface into a harder coil or bushing so the aluminum host lasts longer.

This guide is for buyers and designers comparing inserts versus tapped holes in CNC aluminum parts. It covers when inserts usually pay off, what to put on drawings, and typical practice for torque and pull-out—without invented product claims or fixed prices. For basic thread callouts, see also our guide on designing threads and tapped holes; for alloy choice, see 6061 vs 7075 for machined parts.

Tapped holes in aluminum: where they work well

A correctly sized tapped hole in aluminum is often the simplest and lowest-cost fastening method when:

• Assembly count is low (prototype, one-time install, or rare service)
• Clamp load is modest relative to the thread engagement and alloy strength
• The fastener is steel or stainless into aluminum and galvanic / seizing risk is managed with coatings or assembly practice
• Wall thickness and boss diameter allow full recommended engagement without breaking into adjacent features
• You can accept a future repair (oversize tap + insert) if a thread is damaged later

Formed (rolled) threads in ductile aluminum can be stronger in shear than cut threads of the same size because material is displaced rather than removed—ask your shop which method they plan when strength matters. Still, aluminum’s lower hardness means steel fasteners can wear or gall flanks under repeated tighten–loosen cycles.

Helical wire inserts: what they are and when they help

A helical wire insert is a precision coil of diamond-profile wire screwed into a specially tapped hole. After installation the insert presents an internal thread that matches the fastener (for example M6×1.0 or 1/4-20). Benefits buyers care about:

• Harder wear surface than the parent aluminum
• Distributed load along more of the thread length
• Common repair path for stripped holes (drill, special tap, insert)
• Relatively small envelope compared with some solid inserts

Trade-offs:

• Installation tooling and correct STI (screw-thread insert) tap sizes
• Tang break-off and inspection steps on many designs
• Free-running vs locking (prevailing-torque) insert styles must be specified
• Thin walls may not leave enough material after the larger STI tap

Use helical inserts when you expect repeated assembly, want a compact repairable thread, or need to restore a damaged hole without jumping to a much larger fastener.

Solid key-locking inserts: when a bushing is worth the space

Solid inserts (often called key-locking or Keensert-style) are threaded bushings with locking keys that stake into the parent material. They offer:

• A thick, durable internal thread
• High pull-out and torque capability for the envelope when installed in sound material
• Good options for high-cycle or high-load joints in aluminum housings and plates

Trade-offs:

• Larger drill / counterbore envelope than a wire insert for the same internal thread
• Keys and installation depth must clear opposite walls, O-ring grooves and intersecting holes
• Cost and cycle time are usually higher than a plain tap or a simple wire insert

Choose solid key-locking inserts when clamp loads, vibration or service life justify the envelope—and when a wire insert’s thin cross-section is not enough for your duty cycle. Always leave manufacturer-recommended wall around the outer diameter; starving the boss defeats the purpose.

Other insert families (short notes)

Depending on volume and assembly method you may also see:

• Press-in or swage inserts for soft materials and plastics (less common as primary CNC aluminum structural threads, more common in sheet or molded parts)
• Heat-set inserts in thermoplastics (not an aluminum CNC topic)
• Captive or clinch nuts in sheet metal (see sheet-metal enclosure guidance when the “hole” is in formed sheet rather than a machined boss)

Stay on the insert family that matches the parent process. Mixing sheet clinch rules with thick CNC bosses leads to wrong hole sizes on RFQs.

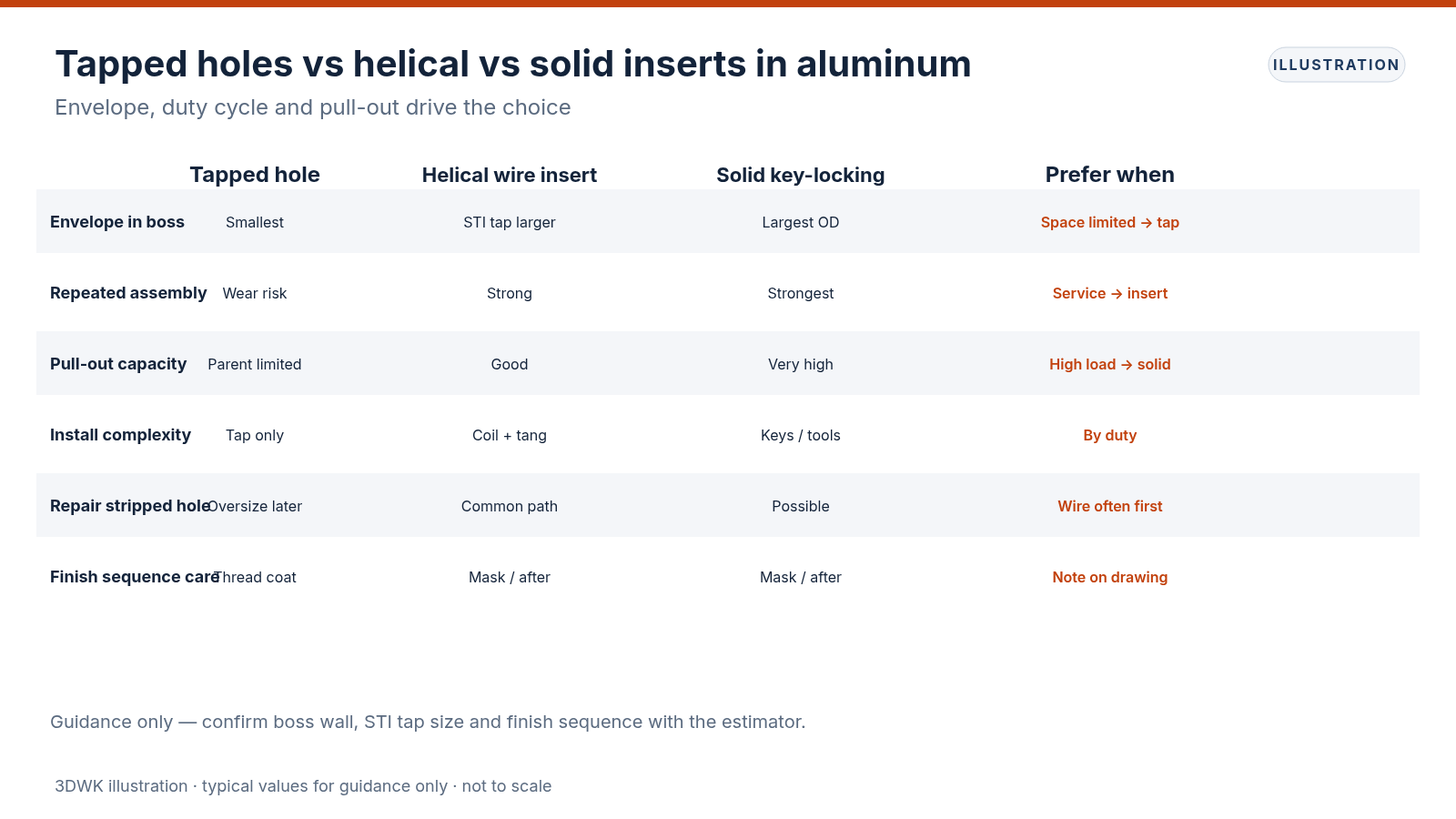

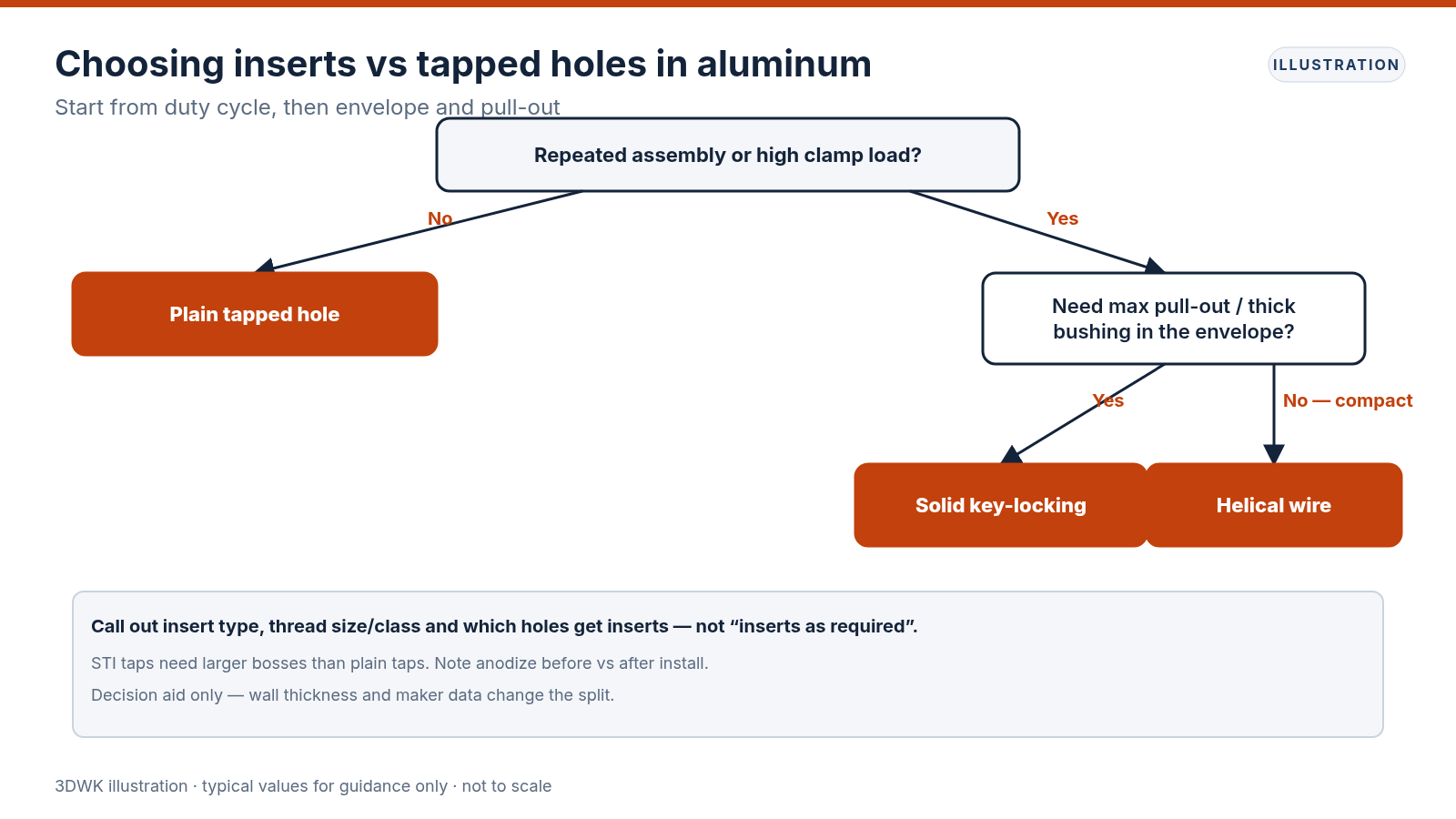

Decision factors: insert vs tapped hole

• Low assembly count and modest torque
• Envelope is tight and STI or solid outer diameters do not fit
• Cost and lead time dominate and a future repair is acceptable
• The joint is non-structural (cover screws, light brackets)

• Repeated service or field swap of fasteners
• You want improved wear without a large bushing
• Repair of an existing stripped hole is likely
• Drawing already references STI taps for that size

• High clamp load, vibration or long service life
• Wire insert pull-out margin is insufficient for your calculation
• You can afford the larger boss and installation steps
• Customer or industry practice already standardizes on solid inserts

Drawing notes that keep quotes accurate

Ambiguous notes such as “inserts as required” force estimators to guess. Prefer explicit callouts:

• Internal thread: size, pitch, class (for example M5×0.8-6H or 10-32 UNF-2B)
• Insert type: helical wire free-running / locking, or solid key-locking (and series if you standardize)
• Quantity and which holes get inserts (do not assume every tapped hole)
• Installation standard or maker catalog series if your company mandates one—without requiring a competitor comparison on the drawing

• STI tap size for wire inserts, or drill / countersink / depth for solid inserts
• Minimum full thread depth and countersink / chamfer at the entry
• Whether the insert sits flush, slightly below flush, or proud (usually flush or slightly below)

• Alloy and temper (6061-T6, 7075-T6, etc.)
• Anodize or chem film before or after insert installation—sequence changes masking and fit
• If anodize builds thickness in threads, state whether threads are masked, chased, or inserts installed after finish

• Boss outer diameter and height
• Distance to edges, pockets and intersecting bores
• Whether opposite-side breakthrough is allowed

Torque, pull-out and testing (typical practice only)

Published insert catalogs list typical installation torque, prevailing torque (for locking styles) and pull-out values for specific parent materials and thicknesses. Treat those as manufacturer data for the exact insert and test condition—not as universal numbers you can copy onto every drawing.

Buyer-side practice that usually helps:

• Specify the fastener grade and lubrication state you will use in assembly
• If a torque target is contractual, state it and the verification method (torque wrench class, angle, or yield-control)
• For critical joints, require a first-article check of insert seating depth and a sample torque / strip test on a coupon or sacrificial boss—not only a visual “inserts present”
• Avoid stacking maximum coating thickness, minimum wall and maximum torque without checking the stack-up

Do not invent pull-out kilonewton values on marketing pages or drawings unless they come from your test report or the insert maker’s data for that dash number.

CNC machining and inspection implications

Inserts change more than the bill of materials:

• Extra toolpaths or secondary ops for STI taps, counterbores and drive features
• Go/no-go gauging of the finished internal thread after insert install
• Careful deburr so chips do not trap under coils or keys
• Handling notes so installed inserts are not used as lift points

On RFQs, list insert count by size. A housing with forty M3 wire inserts is a different job than two M8 solid inserts. If the shop installs inserts, say so; if you install in-house, say “machine STI holes only” or “machine solid-insert prep only” so labor is not double-counted.

Anodizing and thread inserts

Type II and Type III anodize build dimensional thickness on aluminum. Threads can tighten; small sizes are sensitive. Common sequences:

• Machine → insert → mask insert ID → anodize (protects insert threads if they must stay uncoated)
• Machine → anodize with masked or oversized thread prep → install inserts after
• Machine → chem film → insert (when hard anodize is not required)

State the sequence on the drawing. “Anodize per … ; inserts after finish” is clearer than leaving estimators to assume. See also anodizing Type II vs Type III for coating thickness context.

Common RFQ mistakes

• Calling out “Heli-Coil” or a brand as the only allowed part without a size and style (locking vs free-running)
• Forgetting that STI taps are larger than standard taps—bosses designed for a plain M4 may not fit an M4 wire insert
• Specifying solid inserts in walls too thin for the outer diameter and keys
• Asking for insert + maximum anodize thickness + class 3B fits on tiny threads without a process note
• Omitting which holes are inserts versus plain taps on a dense pattern
• Requesting certified pull-out values without defining the test parent thickness and alloy

Cost and lead-time drivers (no fixed prices)

Expect quotes to move with insert piece price, installation labor, special taps, scrap risk on thin bosses, finish sequence complexity and inspection density. Plain tapped holes remain cheapest when duty allows. Inserts are insurance and durability—not decoration. Ask the estimator for a recommendation when unsure—wire inserts for serviceable covers, solid inserts for structural attach points.

Checklist before you release the drawing

• Thread size, pitch and class on every fastening hole
• Insert type and which holes get them
• Boss diameter, depth and edge distance adequate for the chosen insert
• Finish sequence relative to insert install
• Torque or inspection notes only where function needs them

When the package is clear, you get comparable quotes and fewer clarification delays. For aluminum housings and plates, use the CNC machining service page and submit drawings through the quote form.
