Why fixture and wear-part RFQs name A2, D2 and O1
CNC fixtures, locators, wear strips, punch-adjacent details and short-run die components often specify tool steels instead of mild steel or aluminum. Buyers write “A2,” “D2,” or “O1” on an RFQ because those AISI grades are familiar for hardness, wear resistance and stability after heat treat—but the letters alone do not tell a shop whether the part machines soft then hardens, needs grind stock, or must hold size through quench. Incomplete notes produce soft parts that wear out early, hard parts that crack in the wrong section, or quotes padded for unknown heat-treat risk.
This guide is for buyers selecting tool steel A2, D2 and O1 for CNC fixtures and wear parts. It compares typical use cases, machining and heat-treat RFQ notes and a checklist. Values are orientation only; OEM material specs and heat-treat procedures own final hardness and temper. Related reading includes heat treating steel after CNC machining, stainless 304 vs 316 vs 17-4PH, wire EDM for precision parts and surface roughness Ra for machined parts.
Grade snapshots (buyer-oriented)
O1 (oil-hardening)
O1 is a classic oil-hardening tool steel used for gauges, fixtures and moderate-wear details. It is often chosen when shops want familiar heat treat and good machinability in the annealed condition. Dimensional movement in heat treat is a real planning item—leave grind stock when final size is tight, or finish critical features after harden and temper when the process plan allows.
A2 (air-hardening)
A2 is an air-hardening grade widely used for fixtures, dies and punches where wear resistance and toughness are balanced for many shop tools. Air hardening can mean less drastic quench distortion than some liquid-quench routes in typical sections, but section size, racking and temper practice still move parts. Do not treat “air harden” as “zero movement.”
D2 (high-carbon, high-chromium)

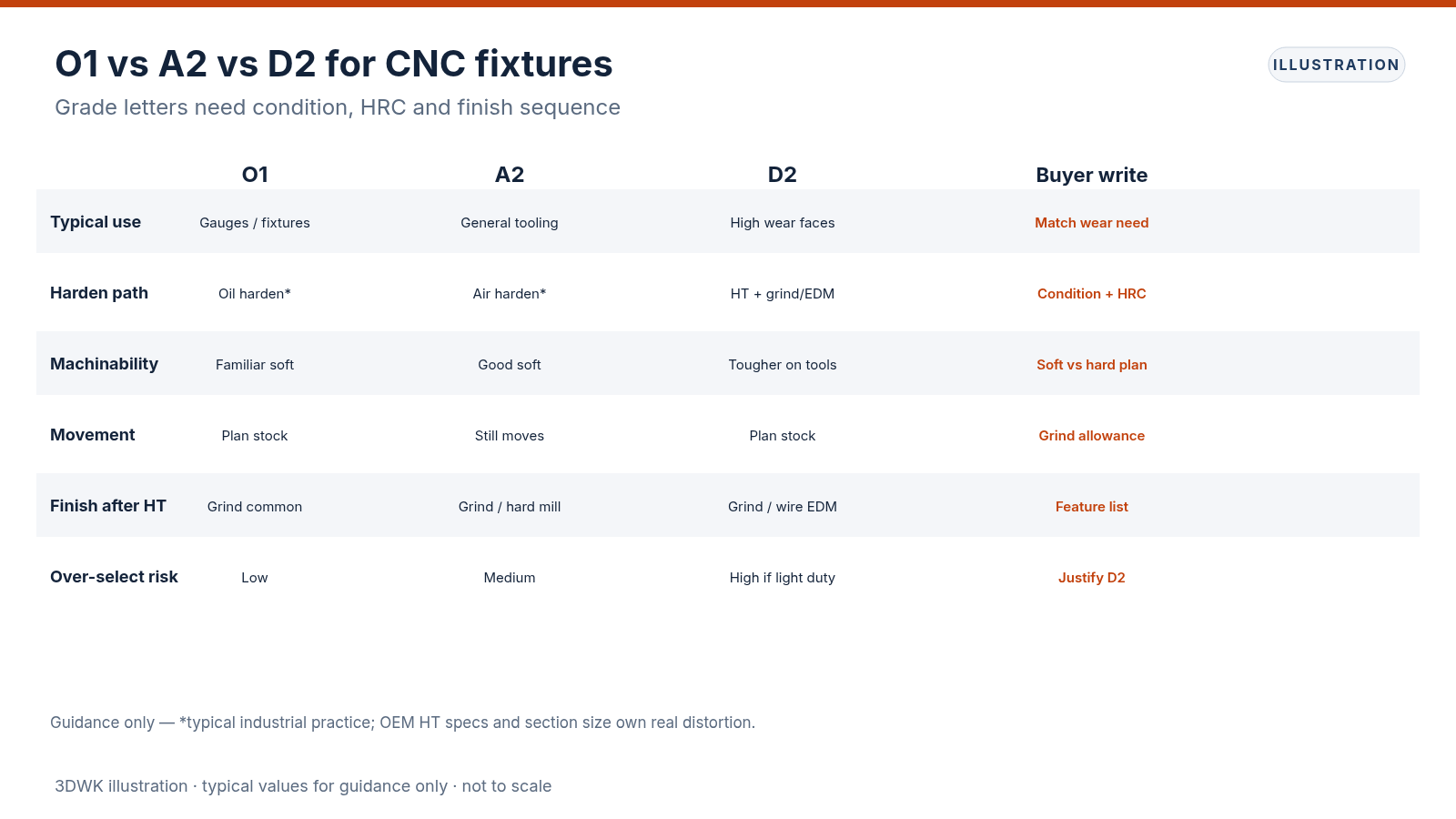

D2 is associated with high wear resistance for long-running wear surfaces, dies and blades. It is harder on cutting tools in both soft and hard machining senses and often needs grind or hard-mill/EDM strategies for final precision. Buyers specifying D2 for a lightly loaded one-off fixture may be over-selecting—confirm wear life needs before locking the grade. Illustration 1 compares typical buyer intents across O1, A2 and D2 for fixture-style parts.
What the drawing must say beyond the grade letters
Condition: annealed vs prehard vs finish hard
State whether the shop receives annealed bar/plate, prehardened stock or must heat-treat after rough machining. “Machine from A2” without condition forces estimators to assume the riskiest path. If hardness is required, give HRC range (or equivalent) and which surfaces must meet it.
Grind stock and finish sequence
Typical practice for precision fixture details: rough machine soft → heat treat → grind or hard finish critical sizes. Call grind stock allowances on diameters and thicknesses when you expect that route. If the part ships as-machined soft for welding or secondary ops, say so explicitly.
Wear surfaces vs locating surfaces
Not every face needs the same hardness or Ra. Mark primary wear faces, dowel holes that must stay stable and cosmetic faces. Edge break on hardened parts matters for chip and handling safety—see edge break chamfer deburr callouts.
Through-hardened vs case strategies
These grades are typically through-hardening tool steels in fixture use; do not confuse them with carburizing notes meant for other alloys. If only a local wear insert is needed, consider a hardened insert in a softer plate instead of hardening an entire large weldment.
Machining and secondary-process notes shops price
Soft machining
Annealed O1/A2/D2 machine with care on speeds and tool wear—D2 especially. Deep pockets, thin walls and small drills cost more in tool steel than in 6061. See CNC pockets thin walls undercuts when geometry is aggressive.
After heat treat
Hard milling, grinding and wire EDM are common finish paths. Wire EDM for precision parts is often the right call for internal profiles in D2 after harden. State which features are post-heat-treat and which may remain soft-machined if hardness is local only (rare for these grades—usually whole part).
Welding and repair
Welding tool steels for fixture repair is specialist work. If the RFQ allows weld build-up, say so; otherwise assume no weld. Large fixtures sometimes use bolted A2 pads on mild-steel frames—a hybrid that should appear in the BOM, not as a surprise.
Coatings
Nitriding, PVD or black oxide-type finishes sometimes follow hardness. Coatings change size; coordinate with zinc plating vs electroless nickel vs black oxide only when those finishes truly apply—many fixture details stay bare or lightly oiled after grind.
Distortion, inspection and datum strategy
Heat treat moves holes and flatness. Datum schemes for fixture plates should anticipate grind clean-up on primary planes. Call flatness after grind when the plate locates parts; see flatness parallelism perpendicularity. Dowel patterns may need reaming or boring after harden—or oversized stock with final size at grind. Tie hole-size method notes to reaming vs boring guidance when you publish both topics in the same RFQ package.
Hardness testing location belongs on the drawing (surface, away from thin edges). First article inspection should list hardness, critical sizes and flatness separately—see first article inspection reports.

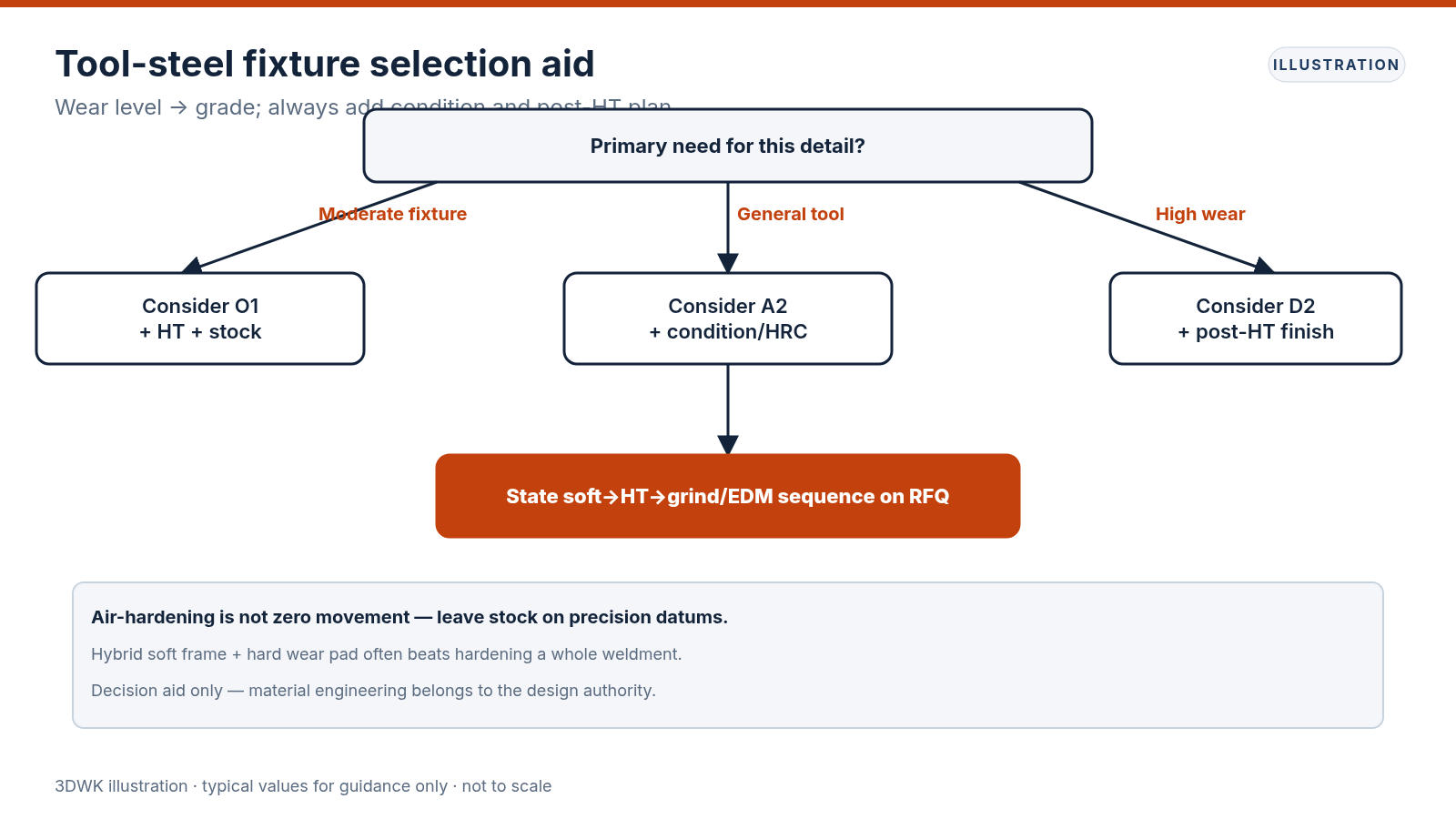

Illustration 2 routes selection from wear/stability needs toward grade and process notes.
RFQ checklist for A2 / D2 / O1 fixture parts
1. Grade + condition (annealed / prehard / HT required) and target HRC range if hardened.
2. Finish sequence: soft machine → HT → grind/EDM/hard mill as applicable.
3. Grind stock or post-HT feature list for critical sizes.
4. Wear faces vs locate faces called out; Ra where functional.
5. Edge break / sharp-edge policy on hardened parts.
6. Welding allowed or forbidden; hybrid soft frame + hard pads if used.
7. Inspection: hardness locations, key dimensions, flatness span.
8. CNC machining service and request a quote links when ready to price.
Side-by-side buyer language
| Intent | Prefer writing | Avoid |
|---|---|---|
| Moderate fixture, oil HT OK | O1 annealed + HT to HRC… + grind stock | “O1” alone |
| General air-hardening tool | A2 + condition + HRC + sequence | “A2 won’t move” |
| High wear surface | D2 + wear face note + post-HT finish | D2 for every soft bracket |
| Stable dowel plate | Flatness after grind + hole finish plan | Soft size notes only |
| Repairable pad | Bolted hard insert P/N | Vague “weld A2” |
Common selection mistakes
- Specifying D2 for a lightly loaded one-off clamp block when O1 or A2 would serve.
- Omitting heat-treat movement stock on a precision dowel pattern.
- Calling hardness without saying which faces are ground after.
- Assuming air-hardening A2 needs no fixturing care in the furnace.
- Mixing stainless corrosion notes into tool-steel wear parts without a real corrosion requirement—use stainless grades when corrosion drives, tool steel when wear/hardness drives.
How this fits a fixture RFQ package
Send PDF/PMI, STEP, material cert requirements if any and a short heat-treat note (target HRC, temper, whether shop or customer manages HT). Keep wear strips and large base plates as separate lines when only the strip must be D2. When aluminum soft jaws or 6061 plates share the same fixture, keep alloy callouts distinct—see 6061 vs 7075 aluminum for machined parts—so estimators do not harden the wrong component.
Summary for estimators and buyers
A2, D2 and O1 are different wear and heat-treat stories, not interchangeable stamps. Name the grade, condition, hardness, finish sequence and which faces are post-HT critical. That package quotes with real grind/EDM content, survives heat treat with planned stock and wears where the fixture actually sees load.
