Why shafts deserve a careful drawing
A turned shaft looks simple: a few diameters, a keyway, a thread and some chamfers. In practice, shafts carry bearings, gears, seals and couplings, and each of those interfaces has its own requirement for size, form and surface. A clear drawing tells the turner which features are critical and which can be made to a general tolerance, and that is what keeps the part both accurate and economical.
This article walks along a typical stainless steel shaft feature by feature, from the stock choice to the final inspection report, and explains what to put on the drawing at each step.
Step 1: Choose the grade before the tolerances
Stainless grades machine differently, and that affects which tolerances and finishes are practical.
| Grade | Machining behaviour | Corrosion resistance | Typical shaft use |
|---|---|---|---|
| 303 | Free-machining; chips break easily | Good indoors and in dry service | High-feature shafts, fittings, general mechanisms |
| 304 | Gummier; work-hardens if the tool rubs | Good general purpose | Food-contact and general hardware |
| 316 | Similar to 304, slightly tougher to cut | Better resistance to chlorides | Marine, washdown and chemical environments |
| 17-4 PH | Machinable; can be heat treated for strength | Good | Highly loaded shafts and pins |
If the shaft will be welded, avoid 303. If the shaft must be hardened, 17-4 PH is the usual stainless choice; specify the condition you need, such as H900 or H1150, and whether machining happens before or after heat treatment.
Step 2: Set the general tolerance and the datums
Start the drawing with a general tolerance note, for example ISO 2768-m for linear dimensions. Everything not called out separately falls under that note.
Then define datums that reflect how the shaft runs. For a shaft supported in two bearings, the two bearing seats together usually form the datum axis, labelled for example A and B. Runout and concentricity requirements on other features are then referenced to A–B, which is how the shaft will actually spin in the machine.
Lengths deserve the same thought. Dimension shoulder positions from the face that locates the bearing or gear, not as a chain from one end of the shaft to the other. Chained dimensions add their tolerances together, so a shoulder at the far end can drift further than intended even when every individual step is within limits.
Step 3: Specify fits on functional diameters

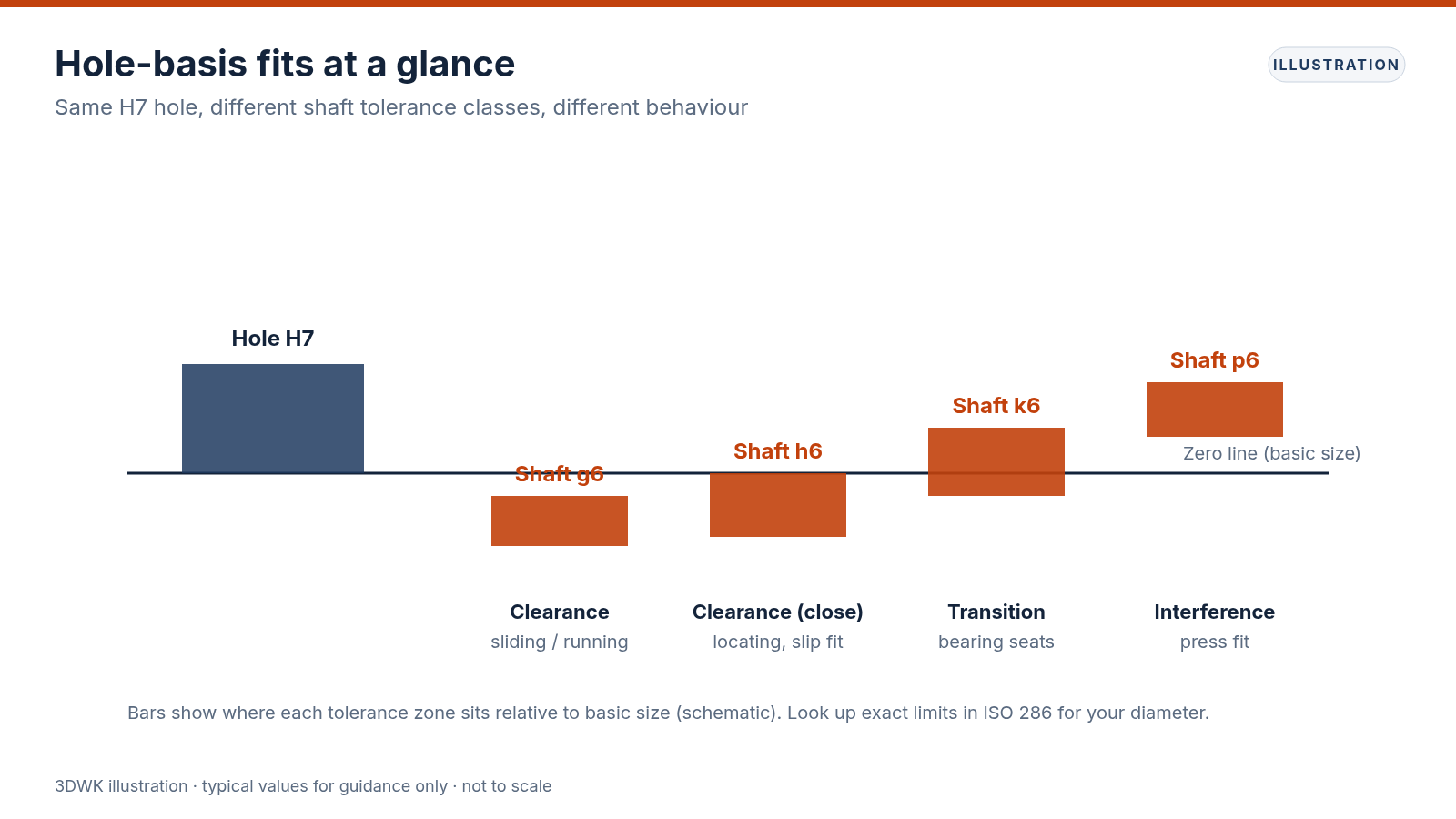

Diameters that mate with bearings, gears or bushings should carry an ISO 286 tolerance class rather than a plain plus-minus value. The class tells everyone the intent of the fit.
Bearing seats
Rolling bearings usually call for a light transition or interference fit on the rotating ring. Classes such as k6 or j6 are common for shaft seats, but the bearing maker's catalogue is the right reference for your load and speed.
Sliding and locating diameters
Where a part must slide on the shaft, a clearance class such as g6 or f7 is typical. For a close locating fit that can still be assembled by hand, h6 is often used.
Press fits
Gears or hubs that must not slip may use an interference class such as p6. Check the resulting pressure against the hub's strength.
Write the class, not just the numbers. "Ø25 k6" is clearer than a pair of limits, and it lets the inspector look up the correct range for that diameter.
Step 4: Control runout where it affects the machine
Circular runout is usually the most useful geometric control on a shaft. It checks the combined effect of roundness and position as the shaft rotates on its datum axis, which is exactly how the shaft behaves in service.
Apply runout to seal diameters, gear seats and coupling diameters relative to the bearing datums. Use total runout only where a long surface must stay true along its whole length, such as a roller surface. Avoid adding concentricity unless you specifically need it; it is harder to measure and often adds little beyond runout.
Step 5: Call out surface finish only where it matters
Surface roughness requirements belong on surfaces that touch something: bearing seats, seal tracks and sliding diameters. Elsewhere, a general finish note is enough.
| Surface | Typical roughness target | How it is usually achieved |
|---|---|---|
| General turned surface | Ra 1.6–3.2 µm | Standard finish turning |
| Bearing seat | Ra 0.8 µm or as bearing maker advises | Fine turning or cylindrical grinding |
| Lip seal running track | Ra 0.2–0.8 µm, no spiral lead | Plunge grinding or polishing |
| Thread flanks | As produced by threading | Single-point turning or rolling |
For lip seals, the direction of the finish matters as well as its roughness. Turning leaves a helical lead that can pump fluid past the seal. Plunge grinding avoids this, so mention "no lead" on the drawing if the seal maker recommends it.
Step 6: Keyways, flats, grooves and threads
Secondary features are where many shafts pick up unnecessary cost.
- Keyways: use standard key sizes for the shaft diameter and dimension width with a fit class; avoid deep keyways near thin steps
- Flats: a simple milled flat for a set screw is cheaper than a keyway when torque is low
- Retaining-ring grooves: follow the ring maker's groove dimensions and leave the edges sharp only where the ring needs them
- Undercuts and reliefs: add a relief groove at shoulders that must seat a bearing squarely, so the corner radius does not interfere
- Threads: specify thread size, pitch and class (for example M16×1.5-6g) and the usable thread length
- Centre holes: if the shaft will be ground or inspected between centres, state whether centre holes are allowed to remain
Step 7: Pick the finish for the environment
Stainless shafts are often used as machined, but a finish can improve corrosion resistance or appearance.
Passivation
Passivation chemically removes free iron left on the surface by machining and helps the natural oxide layer form evenly. It is common for 304, 316 and 17-4 PH parts. Drawings often reference a standard such as ASTM A967 or AMS 2700.
Electropolishing
Electropolishing removes a very thin layer of metal to leave a bright, smooth surface that is easier to clean. Because it removes material, allow for it on tight diameters or apply it before final sizing.
Black oxide
Black oxide on stainless gives a dark, low-glare appearance. It offers limited added corrosion protection and is chosen mainly for looks.
Step 8: Agree the inspection level in advance
Tell the supplier what evidence you need with the parts. Typical options are:
| Inspection level | What it covers |
|---|---|
| Standard inspection | Critical dimensions checked against the drawing |
| Dimensional report | Measured values recorded for the listed dimensions |
| First article inspection | Every dimension on the drawing measured and recorded for the first part |
| Material certificate | Mill certificate tracing the bar stock |
Runout is usually measured with the shaft supported on its bearing seats or between centres, using a dial indicator or a roundness instrument. If your drawing uses datums A–B on the bearing seats, the measurement setup follows naturally.
A quick drawing checklist for turned shafts
- Grade and condition stated, including heat treatment if any
- General tolerance note plus datums on the bearing seats
- ISO fit classes on every mating diameter
- Runout on seal, gear and coupling diameters relative to the datums
- Surface finish only on functional surfaces, with seal-track notes where needed
- Standard key, groove and thread sizes
- Finish and inspection requirements written on the drawing
