What wire EDM is good at
Wire electrical discharge machining (wire EDM) cuts conductive metals with a thin, continuously fed wire electrode and controlled sparks in dielectric fluid. There is no cutting force on the workpiece. That makes it the practical choice for hardened tool steels, intricate punch and die profiles, thin webs that would chatter under a mill, and internal corners tighter than a conventional end mill can leave. Wire EDM is slower than rough milling on soft aluminum blanks, so it wins on geometry and material state—not on raw material removal rate.
This guide explains when wire EDM beats milling or turning, what to put on the drawing, and how to combine EDM with CNC so quotes stay realistic.
How the process works in practice
A brass or coated wire (commonly around 0.25 mm diameter, with thinner and thicker options available) travels between upper and lower guides while a pulsed discharge removes microscopic amounts of metal. The path is programmed in 2D or with taper, and multiple skim passes refine the edge after a rough cut. Typical shop practice:
- Rough cut opens the profile with a larger overburn
- One or more skim cuts improve finish and dimensional accuracy
- Flushing and wire condition strongly affect corner quality and straightness
Because the wire never touches the part as a solid cutter would, thin sections and quenched steels machine without the deflection and tool wear that frustrate milling.
When wire EDM clearly wins
Choose wire EDM when one or more of these apply:
- The stock is already hardened (tool steel, heat-treated 4140/4340, carbide blanks in shops set up for it) and you cannot or should not anneal just to mill
- Internal radii must be smaller than practical end-mill radii, or you need near-sharp internal corners within wire-radius limits
- Thin walls, slots or webs would vibrate, taper or burn under conventional cutters
- Punch, die, extrusion or injection-mold inserts need matching profiles cut after heat treat
- Features are 2.5D profiles through thickness (or with controlled taper) rather than deep 3D sculpted pockets
- You need excellent vertical wall straightness on thick plate where long end mills would deflect
Milling still wins for large open pockets in soft alloys, 3D contoured surfaces, and high stock-removal roughing. Turning wins for concentric round features. Wire EDM is a precision profiling and finishing process for conductive work that rewards patience with geometry milling cannot reach.

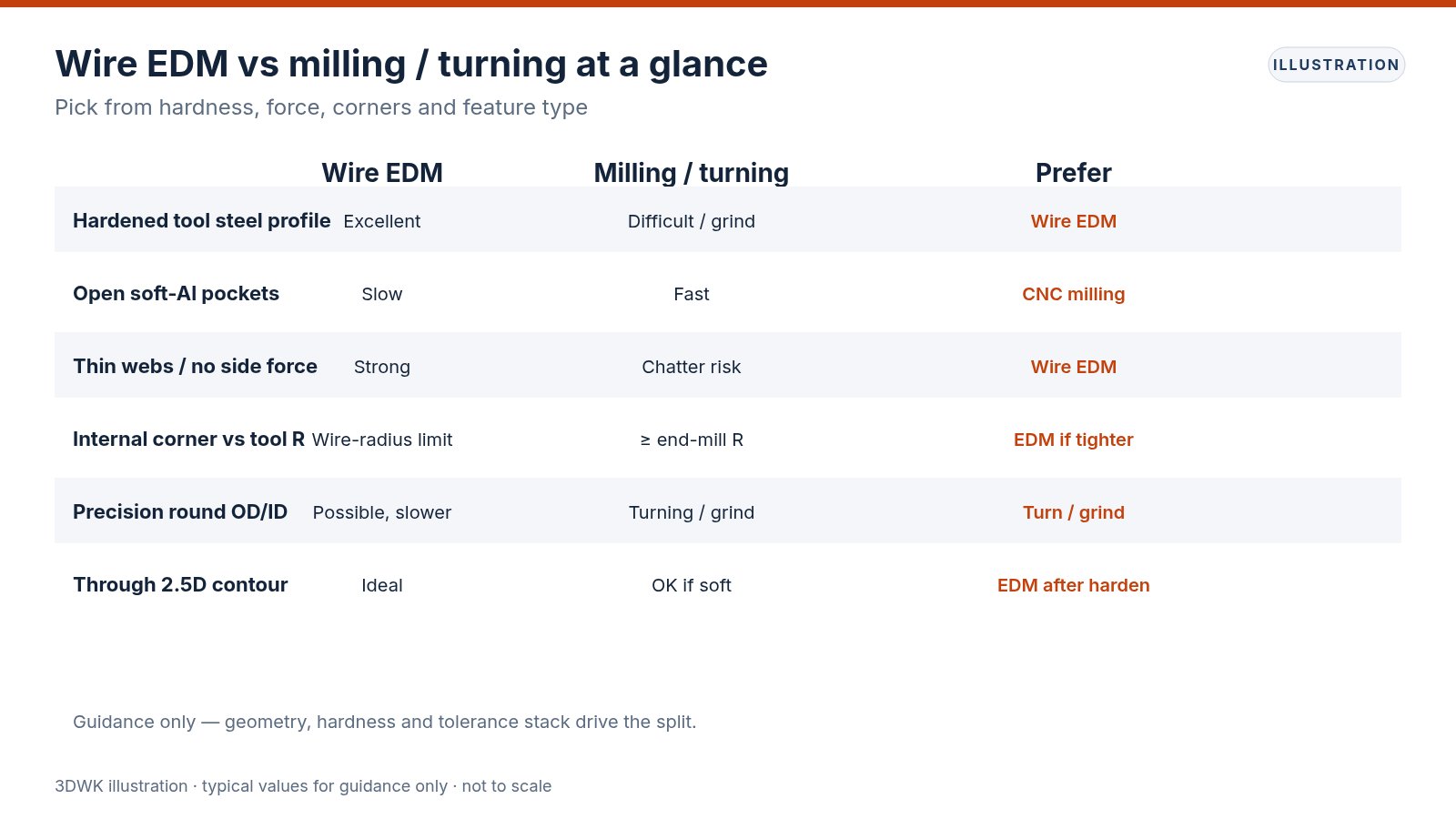

Wire EDM versus milling and turning
| Situation | Prefer | Why |
|---|---|---|
| Soft aluminum open pockets | CNC milling | Faster metal removal; EDM is overkill |
| Hardened tool steel profile | Wire EDM | Cuts after heat treat; no soft anneal cycle |
| Precision round OD/ID with tight concentricity | Turning / grinding | Rotational processes hold roundness efficiently |
| Thin slot through thick plate | Wire EDM | No side force; consistent slot width |
| Deep 3D cavity with freeform surfaces | 3-axis or 5-axis milling | EDM wire is a line cutter, not a ball-nose sculptor |
| Internal corner sharper than mill radius | Wire EDM | Limited by wire radius + overburn, still much tighter than mills |
| High-volume simple turned pins | Swiss / CNC turning | Cycle time dominates |
For many production parts the answer is a hybrid: mill or turn the bulk geometry soft, heat treat, then wire-EDM critical profiles or openings.
Materials that suit wire EDM
Any sufficiently conductive metal can be cut. Common shop work includes:
- Tool steels (A2, D2, S7, H13 and similar) after hardening
- Alloy steels such as 4140 / 4340 in quenched and tempered condition
- Stainless grades including 304, 316 and 17-4PH
- Carbide and exotic conductive alloys where the shop has process experience
- Copper alloys and aluminum when thin features or special profiles justify the slower cut
Non-conductive ceramics and plastics are outside wire EDM. Surface integrity after EDM includes a thin recast layer; critical fatigue or sealing surfaces may need a skim pass strategy, light grind or polish callout after cutting.
Design rules that keep quotes clean
Start hole and path planning
Wire EDM needs a start hole (or open entry from the outside) for closed internal profiles. Put a drilled or machined start hole on the drawing where the wire can thread. Leaving start-hole placement entirely to the shop is fine for simple parts; for dense nests of openings, mark preferred locations so critical features stay clear.
Corner radii and slot width
Internal corners cannot be sharper than roughly the wire radius plus spark gap. External sharp corners are easier. Slot width must exceed the wire diameter plus overburn; ultra-narrow slots may need thinner wire and slower parameters. If a CAD model shows a zero-radius internal corner, expect the shop to leave a small EDM radius unless you plan a secondary operation.
Thickness, taper and land height
Wire EDM handles substantial thickness well compared with long end mills. Tall parts need good flushing. If you need draft or intentional taper, state the angle and which face is the reference. Blind features are not a natural wire-EDM move—the wire cuts through. For blind cavities, sinker EDM or milling is the usual path.
Tolerances and finish
Wire EDM can hold tight profile tolerances with skim passes, but every extra skim adds time. Call out functional tolerances on mating profiles and leave generous tolerances on non-critical edges. Surface finish improves with skims; Ra values typical of finish skims are often adequate for tooling fits, while optical or sealing faces may still need post-processing. Avoid blanket ultra-tight tolerances on every edge of a large contour.
Fixturing and stress
Thin or heavily pocketed plates can move as residual stress is released during the cut. Note if the part is stress-relieved. Allow tabs or a skim strategy when flatness is critical. Large frames sometimes stay attached by micro-tabs until final separation.
Combining wire EDM with CNC machining
A reliable sequence for hardened precision parts is:
1. Soft-machine datums, start holes and bulk removal
2. Heat treat and, if required, grind reference faces
3. Wire-EDM the precision profile, openings or punch/die contour
4. Finish secondary features (tapped holes soft-inserted earlier, or hard milling/grinding where needed)
5. Deburr, inspect and coat if specified
This path protects dimensional stability after heat treat and avoids trying to mill hardened cavities with fragile tooling. For aluminum prototypes that only need a tight internal slot, a short wire-EDM operation after milling can be cheaper than inventing a special cutter strategy.
Cost and lead-time drivers (no fixed prices)
Expect cost and schedule to move with:
- Cut length and thickness (longer paths and taller parts take more machine hours)
- Number of skim passes required by tolerance and finish
- Wire diameter changes and difficult flushing geometries
- Material that cuts slowly or needs special parameter sets
- Fixture complexity and one-off setups versus repeat tooling work
- Whether start holes and soft machining are already done
Batch tooling inserts often amortize programming across repeats. One-off exotic profiles cost more per piece because programming and setup dominate.
Common mistakes on drawings
- Requesting wire EDM for large soft-aluminum roughing that a mill would clear in minutes
- Zero-radius internal corners with no acknowledgment of wire radius
- Closed pockets with no start-hole note and no entry from the outside
- Blind cavities specified as wire EDM
- Ultra-fine finish and ultra-tight tolerance on every non-functional edge
- Ignoring recast layer on fatigue-critical aerospace-style surfaces without a post-EDM plan
- Expecting EDM to replace turning for precision round bearing diameters
A short note—“Wire EDM after harden; start holes Ø… allowed in scrap areas”—prevents wrong process assumptions at quote time.

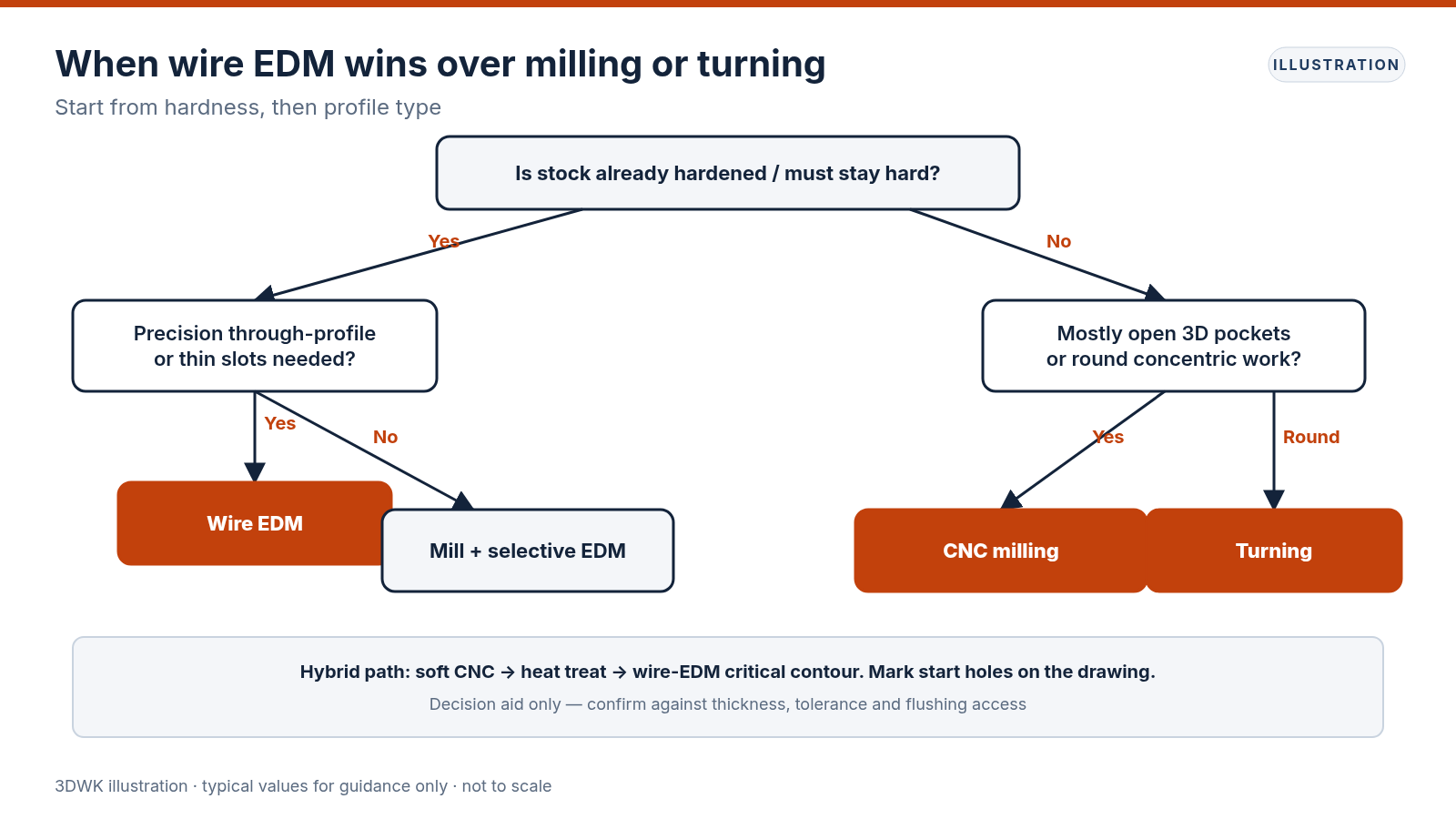

A one-minute decision
Use milling or turning when soft stock, open 3D shapes or round concentric features dominate. Use wire EDM when hardness, thin features, tight internal corners or through-profile accuracy after heat treat dominate. Use both when the part needs bulk CNC shaping and a hardened precision contour. If you are unsure, mark the critical profile as “EDM OK” and let the process engineer propose the split—then lock it on the drawing before release.
Next steps for an RFQ
Send the 3D model plus a drawing that highlights the EDM profile, material and heat-treat condition, start-hole rules, tolerance frame for the contour, and any post-EDM finish requirements. Mention whether mating punches/dies must match as a set. Clear process intent almost always shortens clarification loops and yields a more manufacturable plan on the first revision.
