Three common steel finishes—three different jobs
Zinc plating, electroless nickel and black oxide all appear on steel machining drawings, but they solve different problems. Zinc is the everyday corrosion sacrificial coating for many carbon-steel brackets and fasteners. Electroless nickel (EN) adds a more uniform, harder, corrosion-resistant layer that also builds predictable thickness on complex geometry. Black oxide is primarily an appearance and mild corrosion-delay finish with almost no dimensional growth. Choosing as if they were interchangeable leads to rust complaints, binding fits or unnecessary cost.
This guide compares the three for machined steel parts: corrosion role, appearance, dimensional effect, typical use cases and masking notes you should put on the drawing.

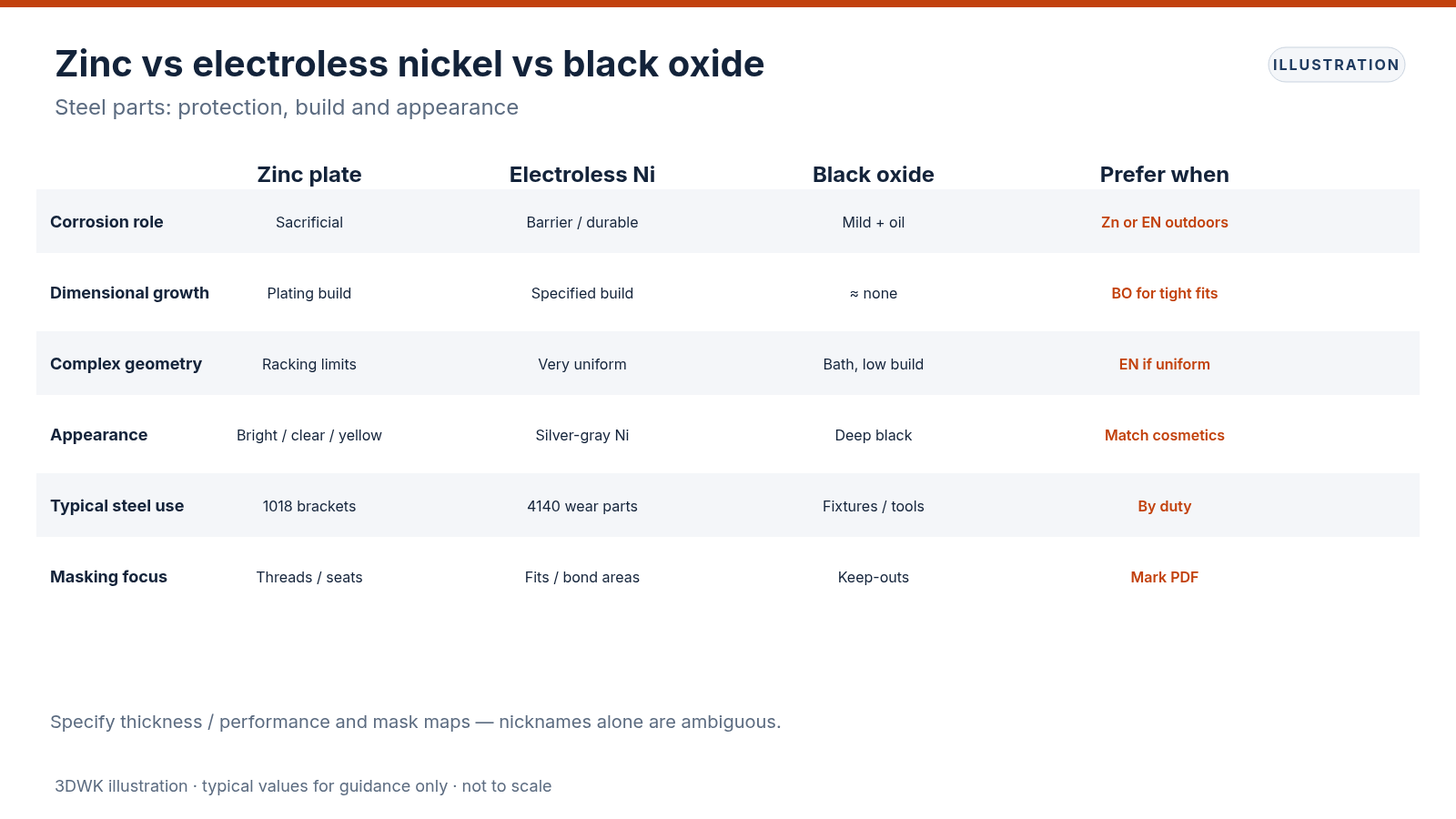

Snapshot comparison
| Topic | Zinc plating | Electroless nickel | Black oxide |
|---|---|---|---|
| Primary role | Sacrificial corrosion protection | Corrosion + wear / uniform build | Appearance + mild protection |
| Dimensional growth | Adds plating thickness (call out) | Adds EN thickness (often well controlled) | Negligible for most fits |
| Appearance | Typically bluish / clear / yellow dichromate-type looks depending on system | Metallic silver-gray nickel look | Deep black |
| Coverage on complex parts | Line-of-sight / racking effects in electrolytic zinc | Very uniform on wetted surfaces (electroless) | Bath process; little build |
| Best known for | Cost-effective steel protection | Uniform thickness, hardness options | Cosmetic black on tools / fixtures |
| Not ideal when | You need zero build on tight fits without mask/grind plan | You only need cheap cosmetic black | You need strong outdoor corrosion resistance alone |
Process chemistries and post-treatments vary by supplier. Specify the performance you need (salt-spray expectation only if you truly have a requirement, appearance, thickness, hydrogen-relief needs) rather than only a trade nickname.
Zinc plating: sacrificial workhorse
Electrolytic zinc deposits a zinc layer that corrodes preferentially to protect the steel substrate. Clear, blue-bright and yellow / rainbow-type conversion coatings change appearance and corrosion performance. Zinc is widely used on brackets, fasteners, stampings and many machined mild-steel components that see indoor or moderate environments.
Design and quoting notes
- State thickness or a performance class your industry uses—do not assume a shop default matches your fit
- Mask or otherwise protect critical threads, bearing seats and ground diameters if build would break tolerance
- Hydrogen embrittlement relief may be required for high-strength steels after electroplating—call this out when hardness/strength make it relevant
- Racking marks and coverage limits exist on deep recesses; discuss orientation for critical faces
Zinc does not look like black oxide. If the customer wants black cosmetics plus corrosion protection, you may need black zinc systems, zinc plus black topcoat, or a different stack—not plain black oxide alone for harsh exposure.
Electroless nickel: uniform build and tougher duty
Electroless nickel deposits via chemical reduction rather than an external plating current, so thickness tends to follow wetted geometry more evenly than many electrolytic coatings. That helps complex machined parts, internal passages (when chemistry and agitation allow) and features where electrolytic zinc might be thin in recesses.
EN is chosen when you want:
- More uniform thickness control on intricate CNC parts
- Improved wear or corrosion behavior versus bare steel (exact grade of EN—low/mid/high phosphorus—changes hardness and corrosion personality)
- A metallic nickel appearance rather than zinc’s conversion-coat look
- A coating that can be specified with a clear thickness for fits
Design and quoting notes
- Call out target thickness and whether it applies before or after final grind on critical diameters
- Mask surfaces that must remain bare for ground fits, electrical bonding or welding
- Sharp edges and tiny blind holes still need process attention; “electroless” is not magic for vapor-locked cavities
- Bake / hydrogen relief rules can apply depending on steel strength and process—confirm with the finisher for heat-treated alloy steels such as 4140 in high-hardness conditions
EN typically costs more than commodity zinc. Use it when uniformity or performance justifies the upgrade—not as a default cosmetic black substitute.
Black oxide: color with almost no growth
Black oxide (blackening) converts the steel surface to a black iron oxide film. It is valued for low glare, a professional black look on tools, fixtures, firearm-adjacent components (where lawful and specified), and machine parts where dimensional change must stay near zero. Oil or wax post-treatments improve fingerprint resistance and short-term rust delay.
Black oxide is not a heavy corrosion coating. In humid storage or outdoor exposure without oil, bare black-oxided steel can still rust. If the part needs real corrosion resistance and black color, discuss alternatives (black zinc systems, nickel plus black topcoat, paint/powder, etc.) instead of expecting black oxide to match zinc’s sacrificial protection.
Design and quoting notes
- Ideal when thread fits and ground diameters must not grow
- Appearance varies with steel grade, polish state and oil; approve a sample for cosmetic jobs
- Masking is less about thickness and more about keeping areas bright or free of oxide when required
- Cleanliness before blackening matters; machining residue shows up as blotches
Dimensional growth and fits
| Finish | Typical dimensional conversation |
|---|---|
| Zinc | Plan for radial build; retap, mask, or open tolerance on plated threads |
| Electroless nickel | Plan for specified thickness; excellent when you need predictable build all around |
| Black oxide | Usually ignore for ordinary fits; still check cosmetic and oil wetness |
For plated threads, state whether the part is plated before or after gauging strategy, and whether oversized/undersized thread practice is allowed. For press fits, decide if coating is on the shaft, the housing, or neither.
Material pairing (steel focus)
Common machined steels for these finishes include:
- Low-carbon steels such as 1018 for brackets and general parts (zinc and black oxide are frequent)
- Alloy steels such as 4140 when strength is needed (watch hydrogen-relief and prep for electroplating; EN is common on wear-prone 4140 components when specified)
- Avoid assuming stainless needs these coatings—the usual stainless path is passivation / electropolish, covered elsewhere
Free-machining steels and welded assemblies may need extra cleaning notes before finishing.
Masking and drawing language
Put finish intent in the title block or a finish note, then detail exceptions:
- “Zinc plate all over, thickness …, except mask bearing Ø…”
- “Electroless nickel … µm, mask threaded holes called X”
- “Black oxide all over; oil dip; no dimensional allowance required”
Also note:
- Rack / wire mark acceptance if cosmetics are critical
- Whether assembly hardware is finished separately
- Any bake / relief requirement for high-strength steel after electroplating
Send a marked PDF for complex mask maps; models alone hide too easily.

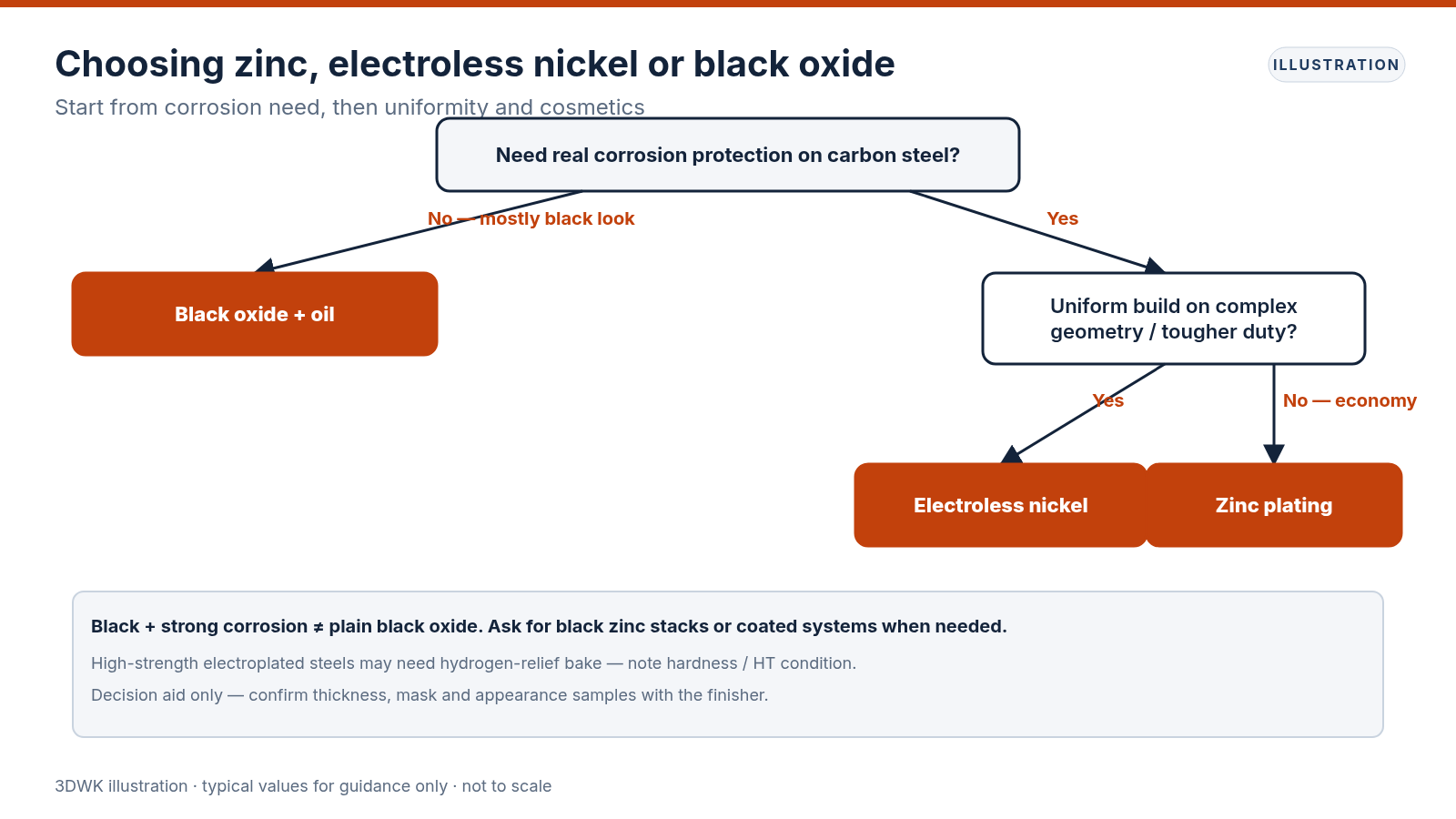

Choosing among the three
Use a simple sequence:
1. Do you need significant corrosion protection on carbon steel? If yes, prefer zinc or EN over black oxide.
2. Do you need uniform thickness on complex geometry or a tougher nickel layer? Lean EN.
3. Do you need black cosmetics with near-zero growth and only mild protection? Black oxide (+ oil) is the usual match.
4. Do you need black and strong corrosion resistance? Plan a stack beyond plain black oxide.
5. Are fits tighter than the coating build? Mask, selectively finish, or switch to black oxide / adjust tolerances.
Cost and lead-time drivers (no fixed prices)
Quotes move with:
- Part size, racking and masking labor
- Thickness and performance class
- Bake / hydrogen-relief cycles when required
- Cosmetic standards and reject risk on appearance parts
- Quantity (barrel vs rack methods where applicable)
A simple all-over zinc on a robust 1018 bracket is usually a different commercial event than selectively masked EN on a hardened 4140 housing.
Common mistakes
- Specifying black oxide for outdoor corrosion duty without oil plans or a better coating stack
- Forgetting plating thickness on Class-fit threads
- Calling “nickel plate” without saying electroless vs electrolytic when uniformity matters
- Omitting hydrogen-relief notes on high-strength electroplated steel
- Mixing appearance standards without a sample approval path
- Assuming any black finish equals any other black finish
RFQ checklist
- Steel grade and heat-treat condition
- Finish type + thickness or performance note
- Mask map for critical diameters and threads
- Appearance requirements and sample approval if cosmetic
- Quantity and any assembly sequence (coat before/after press)
- Special bake / relief needs
Next steps
Attach the drawing with a clear finish note and mask exceptions. Reference plating, black oxide and surface-finishing service pages when you request a quote, and include material callouts such as 1018 or 4140 so estimators pair prep and relief correctly. A precise finish sentence prevents the most expensive kind of ambiguity: parts that look right on day one and rust, bind or fail inspection on day thirty.
